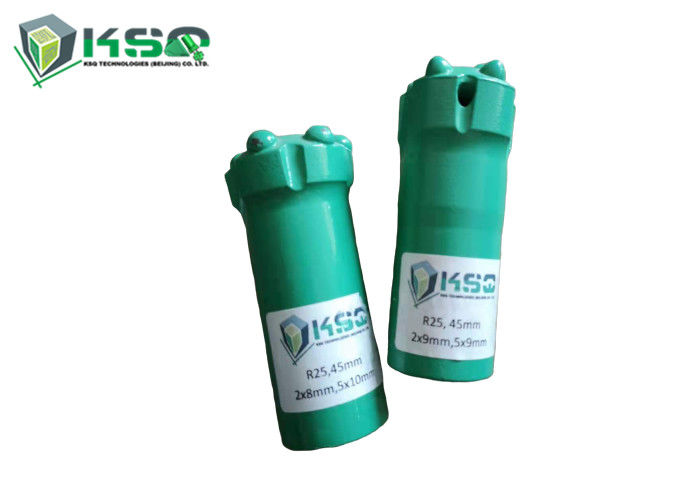

Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge

Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge

    • Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge
    • Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge
    • Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge
    • Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge
    • Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge
  • Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge

    Product Details:

    Place of Origin: China
    Brand Name: MIROC R25 Button Bit
    Model Number: R25 Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces R25 Button Bit
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Name: R32 45mm Button Bit Diameter: 45mm
    Gauge Buttons: 5x11mm Front Button: 2x8mm
    Color: Green Part Number: 4148300384



    R25 45mm Flat Face With Spherical Button Bit


    Products description:
    1.Made from high alloy steel and YK05 tungsten carbide as same grade as internationally well-known brand
    2.Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand
    3.Entire CNC processing procedure ensure the quality consistency
    4.Military grade requirements of heat-treatment guarantee durability
    5.Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.



    Thread: R25

    Diameter: 45mm

    R25 45mm flat face with Spherical Button Bit,

    Buttons: 5x11-2x8mm,

    1 front flushing hole and 2 side flushing holes.

    Miroc P/N4148300384

    Color: Green

    Widely used drifting and tunneling

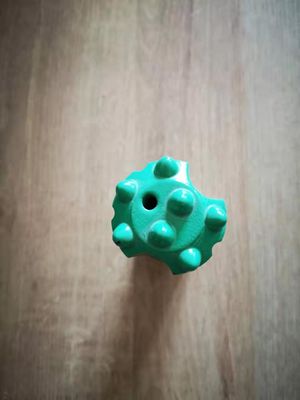

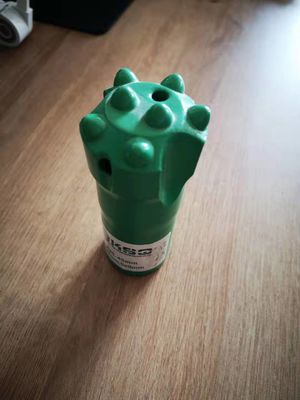

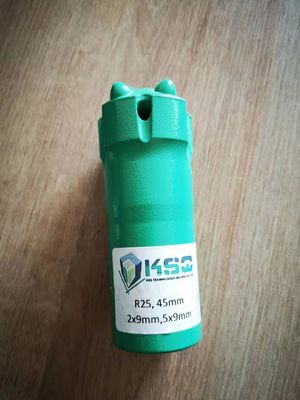

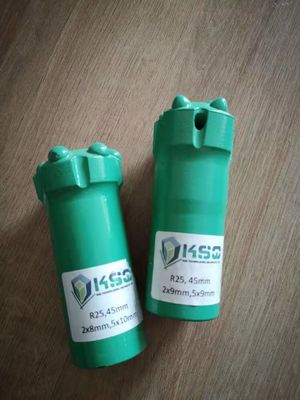

    Photo:

    Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 GaugeLong skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge



    R25 Thread Button Bit Specification



    Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
    mm inch Front Gauge Angle Front Side kg
    Spherical
    33 1 2/7 2x7 5x7 35° 1 1 0.4 B733-R25-S
    35 1 3/8 2x7 5x8 35° 1 1 0.4 B735-R25-S
    38 1 1/2 2x7 5x8 30° 1 1 0.5 B738-R25-S
    38 1 1/2 2x7 5x9 30° 1 1 0.5 B738-R25-S
    41 1 5/8 2x9 4x9 35° 1 2 0.6 B741-R25-S
    41 1 5/8 2x8 5x9 35' 1 1 0.6 B741-R25-S
    45 1 7/9 2x9 4x11 35° 1 2 0.6 B645-R25-S
    45 1 7/9 2x8 5x10 30° 1 2 0.6 B745-R25-S
    45 1 7/9 2x8 5x11 30° 1 2 0.6 B745-R25-S
    Ballistic
    33 1 2/7 2x7 5x7 35° 1 1 0.4 B733-R25-B
    35 1 3/8 2x7 5x9 25° 1 1 0.4 B735-R25-B
    38 1 1/2 2x7 5x9 40° 1 1 0.5 B738-R25-B
    41 1 5/8 2x8 5x9 40° 1 1 0.6 B741-R25-B
    45 1 7/9 2x9 5x10 35° 1 2 0.6 B745-R25-B



    R25 33mm Spherical and Ballistic Button Bit

    R25 35mm Spherical and Ballistic Button Bit

    R25 38mm Spherical and Ballistic Button Bit

    R25 41mm Spherical and Ballistic Button Bit

    R25 45mm Spherical and Ballistic Button Bit



    Long skirt R25 45mm Button Drill Bit with Flat Face Spherical Buttons 5 Gauge



    R25 type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).



    Featuring spherical tungsten carbide inserts that are known to have strong configuration against carbide fracture.





    The bit face design is ideal for medium-hard to hard abrasive rock



    Applications

    Used in small hole drilling.


    Information need to know before ordering

    1. Thread
    2. Button Bit Diameter
    3. Face Design: Flat Face or drop center
    3. Body/Skirt: Regular or retract body
    4. Carbide/ Button: Spherical or Ballistic

    We can design and manufacture the personalized products to meet your special application, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retrac etc.).
