    Product Details:

    Place of Origin: China
    Brand Name: MIROC R25 Coupling Sleeve
    Model Number: R25 Coupling Sleeve

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Name: R25 Coupling Sleeve Diameter: 35mm
    Length: 150mm Color: Black



    R25 Drill Coupling Sleeve Diameter 35mm and Length 150mm


    R25 Coupling Sleeve



    Diameter: 35mm



    Length: 150mm



    Miroc P/N4148300410



    Color: Black



    P/N4148300430



    Widely used drifting and tunneling

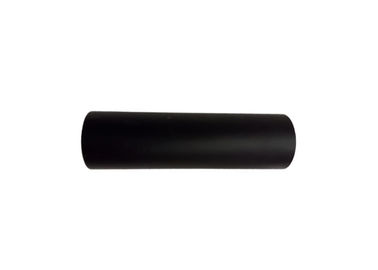

    Photo:

    Crossover Coulping Sleeve R25 Drill Coupling Sleeve Diameter 35mm Length 150mm

    R25 Coupling Sleeve Specification

    Coupling Length Diameter Thread Weight Part Number
    mm inch mm inch kg
    Coupling 155 6 1/9 44 1 3/4 R32 1.0 CS-R25-155
    150 5 8/9 35 1 3/8 R25 0.7 CS-R25-150
    160 6 2/7 38 1 1/2 R25 1.3 CS-R25-160
    Crossover coupling 150 5 8/9 45 1 7/9 R25-R32 1.1 CS-R25/R32-150
    160 6 2/7 45 1 7/9 R25-R32 1.2 CS-R25/R32-160
    160 6 2/7 56 2 1/5 R25-R38 2.5 CS-R25/R38-160
    170 6 5/7 56 2 1/5 R25-R38 3.2 CS-R25/R38-170



    R25 155mm Coupling Sleeve

    R25 150mm Coupling Sleeve

    R25 160mm Coupling Sleeve



    R25 150mm Crossover Coupling Sleeve

    R25 160mm Crossover Coupling Sleeve

    R25 170mm Crossover Coupling Sleeve



    Crossover Coulping Sleeve R25 Drill Coupling Sleeve Diameter 35mm Length 150mm



    R25 Mining Crossover Coupling Rock Drilling Tools

    Description


    Crossover coupling using R25 thread system

    R25 thread system

    Color: Green or Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: R25 Crossover Coupling





    Part Number Product Code and Brief
    Description
    Length
    (mm)
    Length
    (inch)
    Diameter
    (mm)
    Diameter
    (inch)
    Thread Weight (kg)
    4148300432 CS-R25/R32-150, R25
    Crossover Coupling
    150 6 45 1 7/9 R25-R32 1.1
    4148300433 CS-R25/R32-160, R25
    Crossover Coupling
    160 6 2/7 45 1 7/9 R25-R32 1.2
    4148300434 CS-R25/R38-160, R25
    Crossover Coupling
    160 6 2/7 56 2 1/5 R25-R38 2.5
    4148300435 CS-R25/R38-170, R25
    Crossover Coupling
    170 6 2/3 56 2 1/5 R25-R38 3.2



    Applications


    • Underground Mining

    • Widely used in drifting and tunneling



    Used in small hole drilling.


    Competitive Advantage


    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

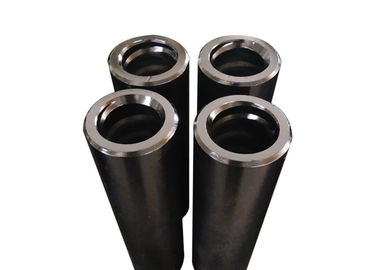

    Coupling Sleeve Package

    Crossover Coulping Sleeve R25 Drill Coupling Sleeve Diameter 35mm Length 150mmCrossover Coulping Sleeve R25 Drill Coupling Sleeve Diameter 35mm Length 150mm

    Crossover Coulping Sleeve R25 Drill Coupling Sleeve Diameter 35mm Length 150mm


    Crossover Coulping Sleeve R25 Drill Coupling Sleeve Diameter 35mm Length 150mm
