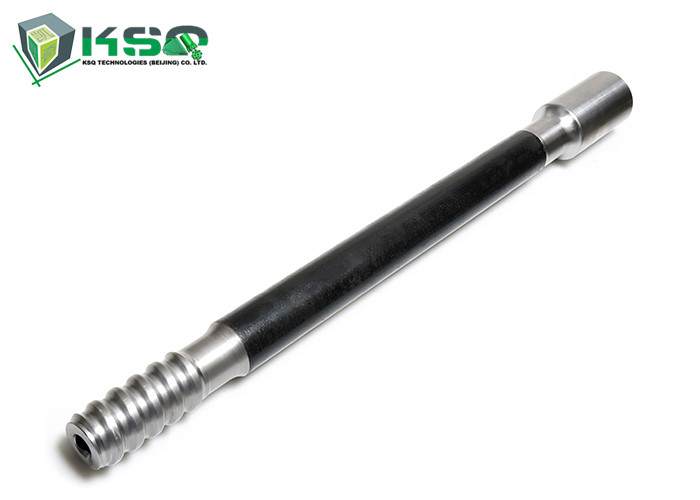

Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25

Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25

    • Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25
    • Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25
    • Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25
    • Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25
  • Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25

    Product Details:

    Place of Origin: China
    Brand Name: KSQ
    Model Number: Drilling and Tunneling Drill Rod

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton or Wooden Box
    Delivery Time: 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20000 Pieces Per Month
    Contact Now
    Detailed Product Description
    Types: Drifter Rod, Extension Rod, Speed Rod Flushing Hole: 8.6 Mm
    Thread Model: R25 Diameter, Mm: 25
    Material: Tungsten Carbide And High Strength Alloy Steel Colors: Green, Black, Yellow Or Based On Request
    MOQ: 1 PCS Application: Mining Operations, Tunneling, Quarrying, Construction

    Drifting and Tunneling Tools

    Drill Rod (Drifter Rod, Extension Rod, Speed Rod)


    Product Description :



    Drill Rod Length, mm Diameter, mm Weight, kg

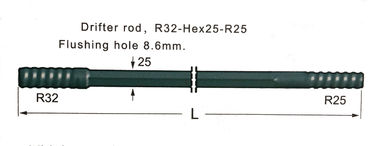

    Drifter Rod, R32-Hex25-R25



    Flushing Hole 8.6mm

    2100 25 8.6
    2400 9.6
    2600 10.4
    2800 11.1
    3090 12.2
    3700 14.6



    Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25

    Drill Rod Length, mm Diameter, mm Weight, kg

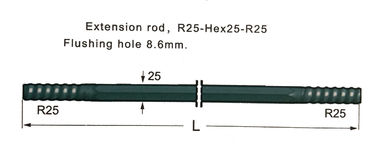

    Extension Rod, R25-Hex25-R25



    Flushing Hole 8.6mm

    915 25 3.4
    1000 4.0
    1220 4.6
    1525 5.8
    1830 7.0
    2435 9.3
    3050 12.0



    Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25

    Drill Rod Length, mm Diameter, mm Weight, kg

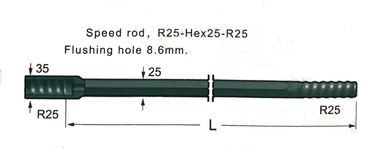

    Speed Rod, R25-Hex25-R25



    Flushing Hole 8.6mm

    610 25 2.7
    1220 5.1



    Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25

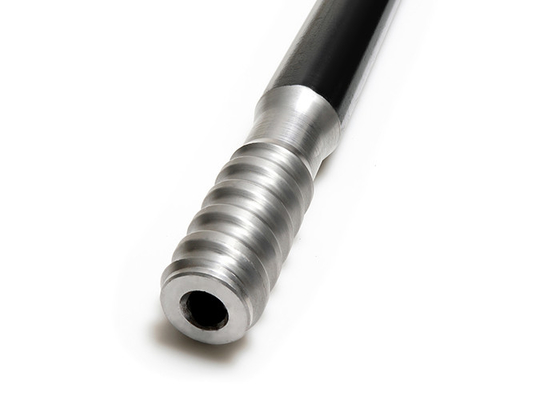

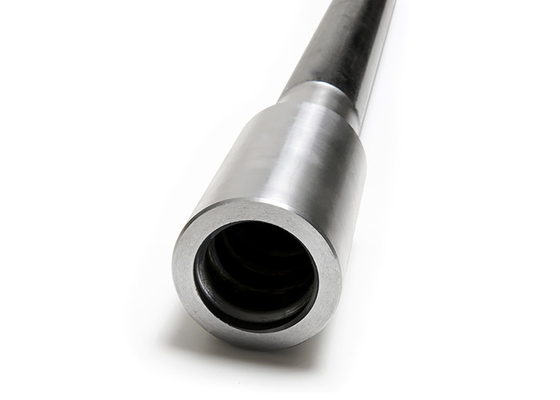

    Drill rod using thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling.



    For speed rod, it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.



    Features:



    1. High grade raw material
    2. Manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



    Application:



    1. Underground mining and surface mining
    2. Drifting, bench and production drilling

    3. Granite, basalt, limestone rock etc.



    Mining Operations Carbide Drill Rod / Threaded Extension Rod Model R25



    Delivery time is around 15-25 days.

    Package: Carton or Wooden Box; also we can follow customers requirements.




    P.S. We can design and manufacture according to customers’ requirements of the bit diameter, number of air holes and carbide button shape.
