T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts

T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts

    • T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts
    • T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts
    • T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts
    • T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts
    • T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts
  • T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts

    Product Details:

    Place of Origin: China
    Brand Name: MIROC Rock Drilling Accessories
    Model Number: Thread Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: Negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-15 Days Production
    Payment Terms: L/C, T/T
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Name: Button Bit / Drill Bit Thread: T38
    Diameter: 76mm 89mm Color: Red

    T38 Spherical and Ballistic Button Bit

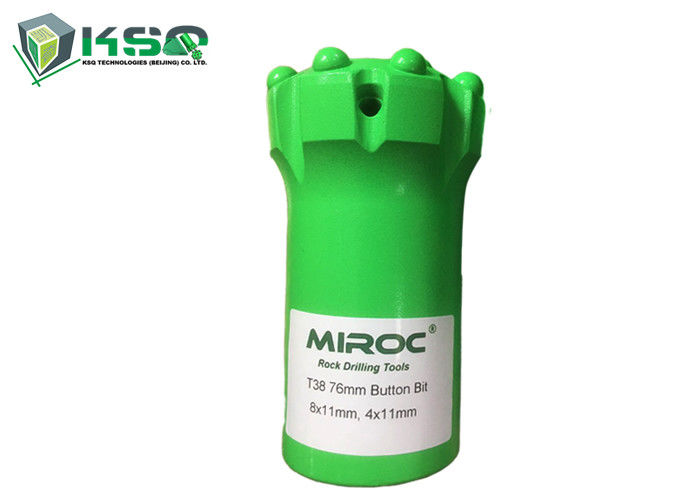

    T38 76mm Button Bit

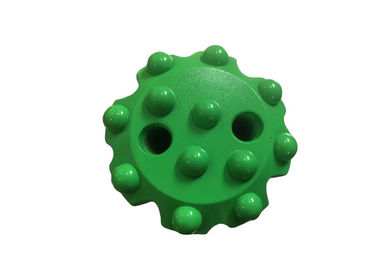

    T38 76mm Ballistic Button Bit,

    Buttons: front 4 x 11mm,

    gauge 8 x 11mm,

    2 front flushing holes, 2 side flushing holes, normal body.

    P/N4148300727

    T38 76mm Button Drill Bit Normal Body With Ballistic Carbide InsertsT38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts

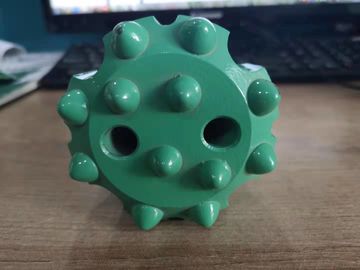

    T38 89mm Button Bit

    T38 89mm Ballistic Button Bit,

    Buttons: front 5x13mm,

    gauge 8x13mm, 2 front flushing holes,

    2 side flushing holes, normal body.

    P/N4148300732

    Photos

    T38 76mm Button Drill Bit Normal Body With Ballistic Carbide InsertsT38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts


    Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).



    Featuring spherical tungsten carbide inserts that are known to have strong configuration against carbide fracture.


    Processing

    CNC milling and proprietary heat treatment process


    Competitive Advantage
    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

    High-grade tungsten carbide inserts


    T38 Thread Button Bit Specification



    Diameter Buttons and Size (mm) Flushing hole Weight Part Number
    mm inch Front Gauge Angle Front Side kg
    Spherical
    64 2 1/2 3×11 6×12 35° 3 - 1.8 4148300705
    64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300706
    64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.7 4148300707
    70 2 3/4 4×11 8×11 40° 2 - 1.9 4148300708
    70 2 3/4 4×10, 1×10 8×11 30° 4 - 1.9 4148300709
    70 2 3/4 3×10, 1×10 6×12 35° 3 - 1.8 4148300710
    76 3    4×11 8×11 40° 2 - 2.4 4148300711
    76 3    5×11 8×13 35° 2 1 2.4 4148300712
    76 3    3×11, 1×11 6×12 35° 3 1 2.6 4148300713
    76 3    4×11, 1×11 8×12 35° 4 - 2.6 4148300714
    76 3    4×11, 1×11 8×11 40° 4 - 2.6 4148300715
    89 3 1/2 4×13 8×13 40° 2 - 3.3 4148300716
    89 3 1/2 5×13 8×13 35° 2 - 3.3 4148300717
    89 3 1/2 6×11 8×12 35° 2 - 3.3 4148300718
    89 3 1/2 3×11, 2×11 6×13 35° 3 1 3.3 4148300719
    89 3 1/2 4×11, 1×11 8×13 35° 4 - 3.3 4148300720
    89 3 1/2 4×13, 1×13 8×13 35° 4 - 3.3 4148300721
    Ballistic
    64 2 1/2 3×11 6×12 35° 3 - 1.8 4148300722
    64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300723
    64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.7 4148300724
    70 2 3/4 4×11 8×11 40° 2 - 1.9 4148300725
    70 2 3/4 4×10, 1×10 8×11 30° 4 - 1.9 4148300726
    76 3    4×11 8×11 40° 2 - 2.4 4148300727
    76 3    5×11 8×13 35° 2 1 2.4 4148300728
    76 3    3×11, 1×11 6×12 35° 3 1 2.6 4148300729
    76 3    4×11, 1×11 8×12 35° 4 - 2.6 4148300730
    76 3    4×11, 1×11 8×11 40° 4 - 2.6 4148300731
    89 3 1/2 5×13 8×13 35° 2 - 3.3 4148300732
    89 3 1/2 6×11 8×12 35° 2 - 3.3 4148300733
    89 3 1/2 3×11, 2×11 6×13 35° 3 1 3.3 4148300734
    89 3 1/2 4×11, 1×11 8×13 35° 4 - 3.3 4148300735
    89 3 1/2 4×13, 1×13 8×13 35° 4 - 3.3 4148300736


    We can design and manufacture the personalized products to meet your special application, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retract etc.).



    Feature T38 Button Bit List:



    T38 64mm Spherical and Ballistic Button Bit

    T38 70mm Spherical and Ballistic Button Bit

    T38 76mm Spherical and Ballistic Button Bit

    T38 89mm Spherical and Ballistic Button Bit



    T38 2 1/2 Inch Spherical and Ballistic Button Bit

    T38 2 3/4 Inch Spherical and Ballistic Button Bit

    T38 3 Inch Spherical and Ballistic Button Bit

    T38 3 1/2 Inch Spherical and Ballistic Button Bit





    Button bit and Insert types
    Spherical Button Characteristics:
    1. Universal button
    2. Good wear resistance
    3. Best suited for hard ground
    4. 27000-48000PSI(180 to 320Mpa)
    5. Suited for abrasive to very abrasive drilling conditions


    Ballistic Button Characteristics:
    1. Fast Penetration
    2. Best suited for soft rock
    3. 10000-20000PSI(70 to 140Mpa)
    4. Suited for non-abrasive drilling conditions



    T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts

    T38 76mm Button Drill Bit Normal Body With Ballistic Carbide Inserts




    Application

    Used in benching and long hole drilling.
