API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm

API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm

    • API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm
    • API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm
    • API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm
  • API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm

    Product Details:

    Place of Origin: China
    Brand Name: MIROC DTH Rock Drilling Tools - Drill Tube
    Certification: API
    Model Number: DTH Drill Pipe

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece Drill Pipe
    Price: Negotiation
    Packaging Details: Bundle
    Delivery Time: 10- 25 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Name: DTH Blast Hole Drill Pipe Length: 3m (3000mm)
    Diameter: 76mm (3 Inch) Thread: 2 3/8" API REG
    Application: Mining, Water Well Drilling, Oil Drilling Pipe Material: 45# Steel

     Drill Pipe / Drill Tube Diameter 76mm Length 3m



    76mm - 3000mm Drill Pipe Information



    Blast hole Drill pipe

    Diameter: 76mm (3 Inch) OD

    Length: 3000mm (3m)

    Wall Thickness: 4mm

    Thread: 2 3/8" API REG Pin & 2 3/8" API REG Box

    Wrench flat: 65mm

    Material: 45# steel

    P/N4148301552

    Weight: 25kg



    Drill Pipe Photo:

    API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm

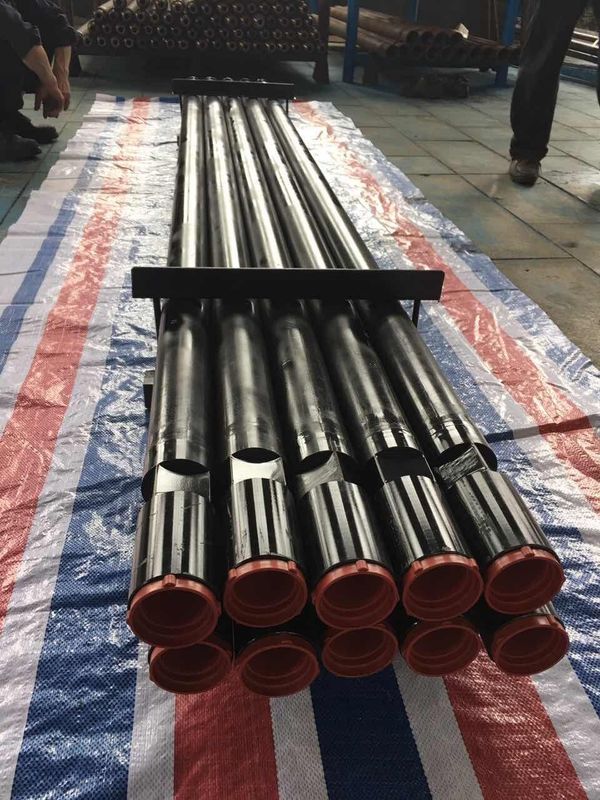

    Drill Tube Package Photo



    API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm



    Drill Pipe Specification

    API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm



    API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm

    Feature Drill Pipe



    Diameter:



    76mm 89mm 102mm 114mm 127mm 140mm 156mm



    Thread:

    2 3/8" API REG,

    2 7/8" API REG,

    2 7/8" IF,

    3 1/2" API REG,

    3 1/2" BECO

    4 FH,

    2" Z Pin x 2" Z Box,

    RD 50-6,

    2 3/8" IF



    Length: 3m, 4m 5m 6m 8m 10m 12m





    Drill Pipe Description



    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



    Drill Pipe Features:



    Friction welded
    • Friction welding gives much stronger joints compared with electrode welding due to less risk of impure joints.



    Competitive Advantage

    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



    More Drill Pipe Specification:

    DTH DRILL PIPES
    Outer diameter Thread Wall thickness Length Wrench flat Weight Part Number
    mm inch mm inch mm foot mm inch kg
    API regular thread
    76 3    2 3/8 API Reg 5.5  2/9 1000 3 2/7 57 2 1/4 17 4148301544
    76 3    2 3/8 API Reg 5.5  2/9 1500 5    57 2 1/4 22 4148301545
    76 3    2 3/8 API Reg 5.5  2/9 2000 6 5/9 57 2 1/4 26 4148301546
    76 3    2 3/8 API Reg 5.5  2/9 3000 9 5/6 57 2 1/4 35 4148301547

    76 3    2 3/8 API Reg



    5.5
     2/9 1000 3 2/7 65 2 5/9 17 4148301548
    76 3    2 3/8 API Reg 5.5  2/9 1500 5    65 2 5/9 22 4148301549
    76 3    2 3/8 API Reg 5.5  2/9 2000 6 5/9 65 2 5/9 26 4148301550
    76 3    2 3/8 API Reg 5.5  2/9 3000 9 5/6 65 2 5/9 35 4148301551

    76 3    2 3/8 API Reg 6.5  1/4 3000 9 5/6 65 2 5/9 46 4148301552
    76 3    2 3/8 API Reg 6.5  1/4 4500 14 3/4 65 2 5/9 56 4148301553
    76 3    2 3/8 API Reg 6.5  1/4 6000 19 2/3 65 2 5/9 73 4148301554

    89 3 1/2 2 3/8 API Reg 5.5  2/9 1000 3 2/7 65 2 5/9 20 4148301555
    89 3 1/2 2 3/8 API Reg 5.5  2/9 1500 5    65 2 5/9 25 4148301556
    89 3 1/2 2 3/8 API Reg 5.5  2/9 2000 6 5/9 65 2 5/9 30 4148301557
    89 3 1/2 2 3/8 API Reg 5.5  2/9 3000 9 5/6 65 2 5/9 40 4148301558

    89 3 1/2 2 3/8 API Reg 6.5  1/4 1000 3 2/7 65 2 5/9 21 4148301559
    89 3 1/2 2 3/8 API Reg 6.5  1/4 1500 5    65 2 5/9 26 4148301560
    89 3 1/2 2 3/8 API Reg 6.5  1/4 2000 6 5/9 65 2 5/9 32 4148301561
    89 3 1/2 2 3/8 API Reg 6.5  1/4 3000 9 5/6 65 2 5/9 45 4148301562
    89 3 1/2 2 3/8 API Reg 6.5  1/4 4500 14 3/4 65 2 5/9 65 4148301563
    89 3 1/2 2 3/8 API Reg 6.5  1/4 6000 19 2/3 65 2 5/9 84 4148301564
    F Thread
    Outer diameter Thread Wall thickness Length Wrench flat Weight Part Number
    mm inch mm inch mm foot mm inch kg
    50 2 F42×10 4.5  1/6 1000 3 2/7 40 1 5/8 - 4148301565
    60 2 3/8 F48×10 4.5  1/6 1000 3 2/7 40 1 5/8 - 4148301566
    60 2 3/8 F48×10 4.5  1/6 1500 5    40 1 5/8     -  4148301567
    60 2 3/8 F48×10 4.5  1/6 2000 6 5/9 40 1 5/8     -  4148301568
    60 2 3/8 F48×10 4.5  1/6 3000 9 5/6 40    1 5/8     -  4148301569




    Available in a variety of lengths, diameters, wall thicknesses, and thread configurations.



    Applications



    • Underground mining
    • Quarry benching operations
    • Water well drilling
