105mm DTH Drill Bit For 3 Inch High Air Pressure COP34 DTH Hammer

105mm DTH Drill Bit For 3 Inch High Air Pressure COP34 DTH Hammer

105mm DTH Drill Bit For 3 Inch High Air Pressure COP34 DTH Hammer
105mm DTH Drill Bit For 3 Inch High Air Pressure COP34 DTH Hammer
105mm DTH Drill Bit For 3 Inch High Air Pressure COP34 DTH Hammer
Product Details:
Place of Origin: China
Brand Name: MIROC DTH Rock Drilling Tools
Certification: API
Model Number: DTH Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece DTH Button Bit
Price: Negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 15 days production for DTH drill bit
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: DTH Button Bit Hammer Type: COP34 DTH Hammer
Diameter: 105mm (4 1 / 8 Inch) Color: Green
Application: DTH Rock Drilling Carbide: Spherical
High Light:

dth hammer bits

,

dth button bits

105mm DTH Button Bit for COP34 DTH Hammer



DTH Button Bit Description:



Name: DTH Button Bit

Diameter: 105mm

Face design: flat face,

Carbide Shape: spherical

Buttons number and diameter: gauge 8x14mm, front 7x12mm,

Flushing holes: 2 front flushing holes

for COP34 hammer,

Weight: 5kg/each

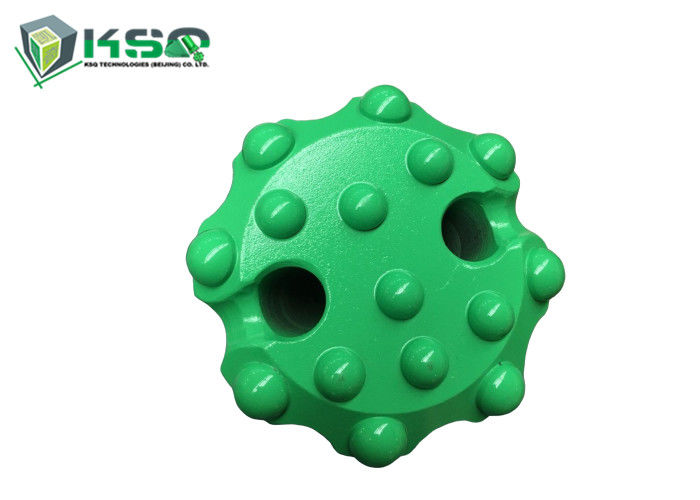

DTH Button Bit Photo:

105mm DTH Drill Bit For 3 Inch High Air Pressure COP34 DTH Hammer 0



105mm DTH Drill Bit For 3 Inch High Air Pressure COP34 DTH Hammer 1





Bit Face Shape Selection:



Center Drop Bit:



For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.

Maximum hole deviation control.



Concave Face



The all-around application bit face specifically for medium hard and homogeneous rock formations.

Good hole deviation control and good flushing capacity.



Convex Face



For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash and may reduce the load and wear on gauge buttons, but poor hole deviation control.



Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.



Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.





Competitive Advantage



• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment



We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



Applications



• Underground mining

• Down the hole rock drilling





More information for 3'' High Air Pressure DTH Bits



DTH Button Bits for COP32, COP34, IR3.5, DHD3.5, BR3, QL30 Hammer.



3'' High Air Pressure DTH Button Bit Specification

3'' High Air Pressure DTH Bits
DTH Button Bit Diameter Buttons and Size (mm) Flushing hole Weight
mm inch Gauge Front kg
COP32 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 8x12 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.3
BR3 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 6x14 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.3
IR3.5/COP34 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 6x14 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.3
QL30 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 8x13 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.5



KSQ Related DTH Button Bits

Product DTH Button Bits
Low Air Pressure CIR80, CIR90
3’’ DHD3.5, M30,
4’’ DHD340, SD4,QL40, M40
5’’ DHD350, SD5,QL50, M50
6’’ DHD360, SD6,QL60, M60
8’’ DHD380, SD8,QL80, M80
Color Green, Gold, Black or based on customer requirements.
MOQ: No MOQ required for testing and trial order



Keywords

DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,

Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit
