| Place of Origin: | China |
| Brand Name: | MIROC Shank Adapter / Striking Bar |
| Certification: | SGS ISO |
| Model Number: | Shank Adapter (for Ingersoll Rand Rock Drill) |
| Minimum Order Quantity: | 10 Piece Shank Adapter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 20 days Production for standard shank adapter |
| Supply Ability: | 20000 pieces per month |
| Product: | Mining Shank Adapter | Model: | Shank Adapter For Ingersoll Rand YH80A |
|---|---|---|---|
| Length: | 500mm | Thread: | T45 |
| Application: | Rock Drilling, Mining, Quarry, Tunneling Projects | Drifter: | Ingersoll Rand |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||
Shank Adopter T45 Diameter 51mm Length 500mm for Ingersoll Rand YH80A Rock Drill
T45 Shank adapter for Ingersollrand YH80A 500 mm
Ingersoll Rand YH 80A
| Thread | Part Number | Length(mm) | Diameter(mm) | Weight(kg) | Flushing Tube(mm) |
| T38(1 1/2'') | 414832567 | 500 | 51 | 5.5 | 19 |
| T45(1 3/4'') | 414832568 | 500 | 51 | 5.7 | 19 |
| T45(2'') | 414832569 | 500 | 51 | 6.4 | 19 |

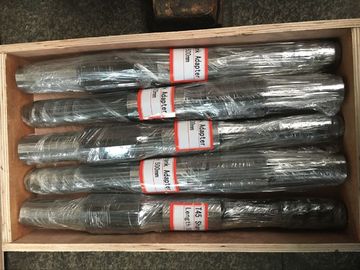

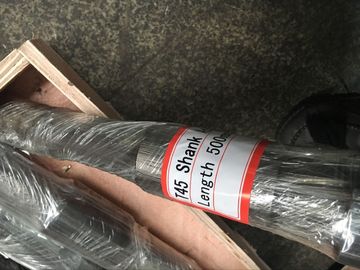

T45 Shank adapter for Ingersollrand YH80A 500 mm Photo
90516284, 90516300, 90516313

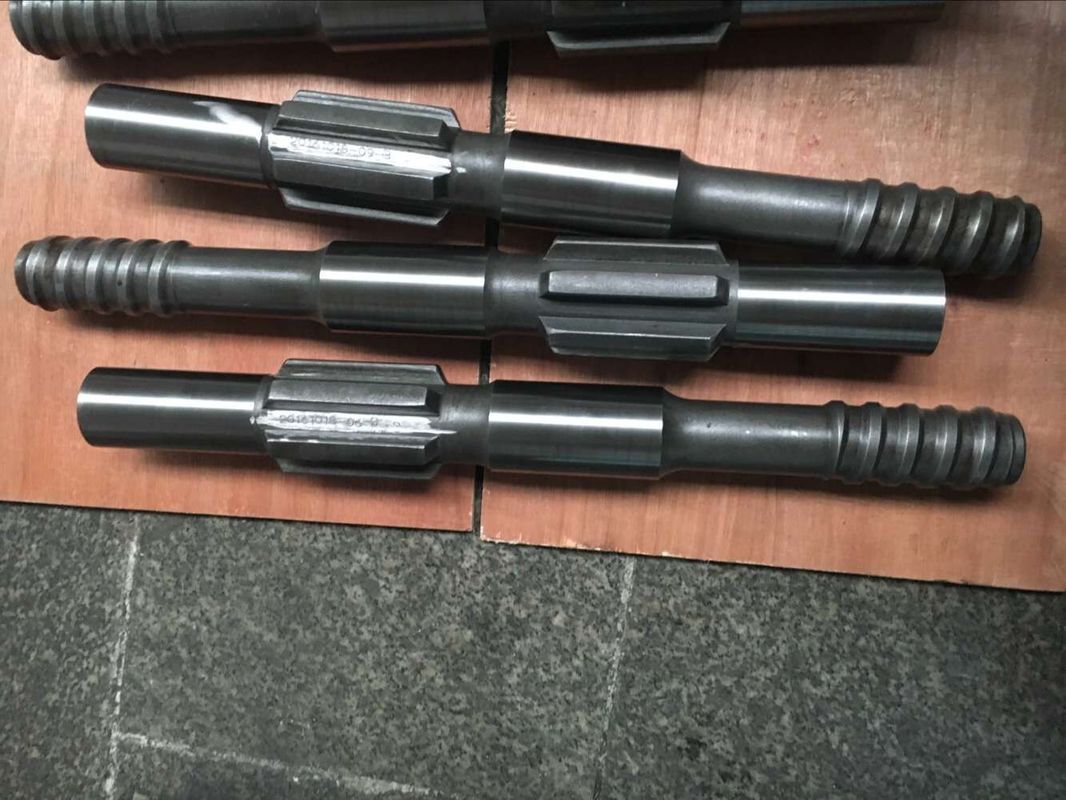

T45 diameter 51mm Shank adapter for Ingersollrand YH80A 500 mm Photo
Shank Adapter for Ingersoll Rand Specification:
Shank Adapter
Manufactured from high-quality Alloy Steel and Heat Treated to give high values and fatigue strength.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
Male shank adapters/striking bar are generally better suited for drifting, tunneling & extension applications where high bending stresses are present.
Female shank adapters/striking bar are used when the drilling space is limited and the total feed length is important (i.e., underground roof bolting)
Shank Adapter for Following Ingersoll Rand Rock Drill Model
| Rock Drill Manufacturer and Model |
| Ingersoll Rand 350 |
| Ingersoll Rand Hydrastar 200 |
| Ingersoll Rand VL 120, VL 140 |
| Ingersoll Rand VL 120, VL 140 |
| Ingersoll Rand EVL 130, VL 140 |
| Ingersoll Rand YD 90 M |
| Ingersoll Rand YH 45, YH50, YH55 |
| Ingersoll Rand YH 60A |
| Ingersoll Rand YH 65, YH70 |
| Ingersoll Rand YH 65 RP |
| Ingersoll Rand YH 80A |
| Ingersoll Rand YH 80A RP |
Shank Adapter Specification
| SHANK ADAPTER | ||||||
| Rock Drill Manufacturer and Model | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| Ingersoll Rand 350 | R32 | 32 | 380 | 9.0 | 2.1 | 414832550 |
| Ingersoll Rand Hydrastar 200 | R32 | 45 | 351 | - | 3.7 | 414832551 |
| Ingersoll Rand VL 120, VL 140 | R32 | 44 | 381 | 14.3 | 3.4 | 414832552 |
| R38 | 44 | 381 | 14.3 | 3.6 | 414832553 | |
| T38 | 44 | 381 | 14.3 | 3.7 | 414832554 | |
| T45 | 44 | 381 | 14.3 | 3.9 | 414832555 | |
| Ingersoll Rand VL 120, VL 140 | T38 | 44 | 446 | 14.3 | 4.0 | 414832556 |
| Ingersoll Rand EVL 130, VL 140 | T38 | 44 | 350 | 14.3 | 3.9 | 414832557 |
| T45 | 44 | 350 | 14.3 | 4.2 | 414832558 | |
| Ingersoll Rand YD 90 M | R32 | 44 | 350 | 9.0 | 2.6 | 414832559 |
| R32 | 38 | 350 | 12.7 | 2.5 | 414832560 | |
| Ingersoll Rand YH 45, YH50, YH55 | T38 | 38 | 440 | 16 | 3.8 | 414832561 |
| Ingersoll Rand YH 60A | T45 | 38 | 530 | 14.3 | 6.1 | 414832562 |
| Ingersoll Rand YH 65, YH70 | T38 | 44 | 500 | 19.0 | 5.2 | 414832563 |
| T45 | 45 | 500 | 19.0 | 5.5 | 414832564 | |
| Ingersoll Rand YH 65 RP | T38 | 45 | 700 | 19.0 | 7.8 | 414832565 |
| T45 | 45 | 700 | 19.0 | 7.9 | 414832566 | |
| Ingersoll Rand YH 80A | T38 | 45 | 500 | 19.0 | 5.5 | 414832567 |
| T45 | 51 | 500 | 19.0 | 5.7 | 414832568 | |
| T51 | 51 | 500 | 19.0 | 6.4 | 414832569 | |
| Ingersoll Rand YH 80A RP | T45 | 51 | 700 | 19.0 | 8.8 | 414832570 |
| T51 | 51 | 700 | 19.0 | 9.3 | 414832571 | |
Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.
Competitive Advantage
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
We can design and manufacture personalized products to meet your special application, such as changing the length, diameter, etc.
