| Place of Origin: | China |
| Brand Name: | MIROC Top Hammer Rock Drilling Tools |
| Certification: | SGS |
| Model Number: | Speed Rod |
| Minimum Order Quantity: | 10 Pieces Speed Rod |
|---|---|
| Price: | Negotiation |

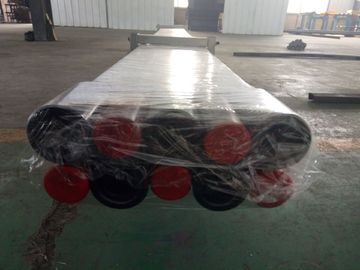

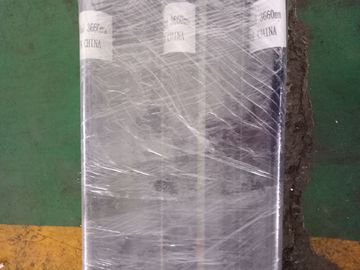

| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month Thread MF- Rod |
| Name: | MF Rod | Type: | Male - Female Thread |
|---|---|---|---|
| Thread: | T45 | Diameter: | 46mm |
| Length: | 3660mm | Application: | Long Hole Drilling And Bench Production Mining |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||

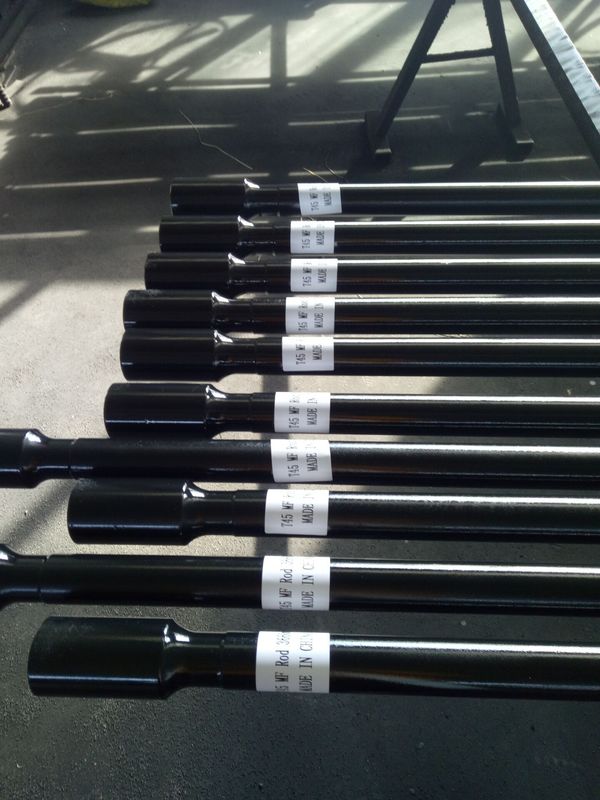

T45 MF Rod / Speed Rod
MF-Rod
Flushing Hole 17 mm
T45-Round 46-T45
| Length(mm) | Length(Inch) | Diameter(mm) | Diameter(inch) | Weight(kg) | Part Number | Product Code |
| 1525 | 5 | 46 | 1 4/ 5 | 21.2 | 4148300874 | MF46-T45-1525 |
| 1830 | 6 | 46 | 1 4/ 5 | 24.6 | 4148300875 | MF46-T45-1830 |
| 3050 | 10 | 46 | 1 4/ 5 | 38.2 | 4148300876 | MF46-T45-3050 |
| 3660 | 12 | 46 | 1 4/ 5 | 45 | 4148300877 | MF46-T45-3660 |
| 4270 | 14 | 46 | 1 4/ 5 | 51.9 | 4148300878 | MF46-T45-4270 |
| 5530 | 18 1/7 | 46 | 1 4/ 5 | 66 | 4148300879 | MF46-T45-5530 |
| 6095 | 20 | 46 | 1 4/ 5 | 72.3 | 4148300880 | MF46-T45-6095 |
T45 10 Feet Long MF Rod
T45 12 Feet Long MF Rod
T45 14 Feet Long MF Rod
T45 3050mm Speed Rod
T45 3660mm Speed Rod
T45 4270mm Speed Rod
Drill rod using T45 thread system.
With wrench flats to aid in coupling/decoupling of rods for extension drilling.
Used in benching and long hole drilling.
Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system
Basic Information
| Product Name | Threaded Drill Rod |
| Thread | R25 R28 R32 R38 T38 T45 T51 |
| Diameter | 22mm, 25mm, 32mm, 35mm, 39mm, 46mm, 52mm |
| Length | 400mm - 5530mm |
| Drill Rod Type | Drifter Rod, Extension Rod, MF-Rod, Speed Rod, Hex Rod, |
| Material |
High strength alloy steel bar |
| Color | Black or based on customer requirements. |
Application
• Underground mining
• Tunneling, quarrying
• Granite, Basalt, Limestone rock, etc.
Competitive Advantage
• High-grade raw material
• Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
