T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage

T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage

    • T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage
    • T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage
  • T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage

    Product Details:

    Place of Origin: China
    Brand Name: MIROC T38 T45 T51 Button Bit
    Certification: SGS
    Model Number: Thread Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces T45 76mm Button Bit
    Price: Negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10- 15 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Name: Button Bit Thread: T38 T45 T51
    Type: Drop Center Spherical Button Bit Application: Mining, Rock Driling, Quarry, Tunneling

    T45 76mm Drop Center Spherical Button Bit For Very Hard Stone With High Percentage Si

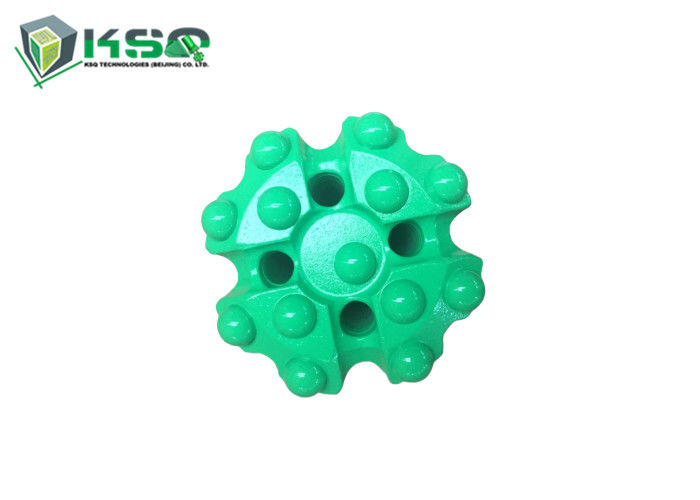

    Drill bits T45-76mm drop center



    Buttons: front 4x11mm, 1x11mm



    gauge: 8x12mm, 4 front flushing holes



    Retract body



    Spherical buttons for very hard stone with high percentage Si



    Photos:

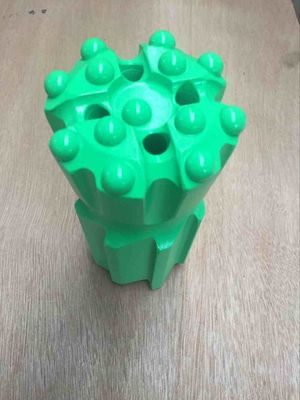

    T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage

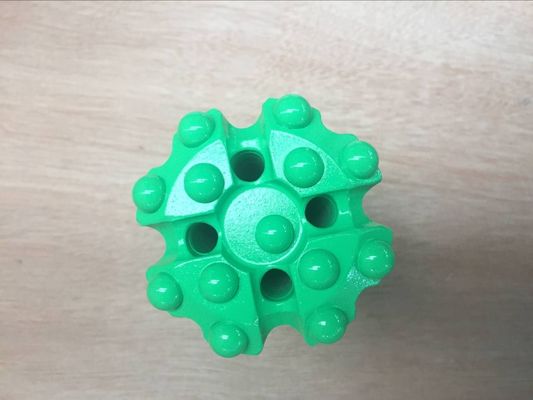

    T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage



    T45 Drop Center Retract Button Bit Specification:



    T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage



    T45 76mm Drop Center Spherical Drill Bit For Very Hard Stone With High Percentage





    T45 Drop Center Ballistic Button drill bit for rock, 76mm 89mm 102mm

    Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).



    Featuring spherical tungsten carbide inserts that are known to have strong configuration against carbide fracture.



    Basic Information

    Product Name Thread Rock Drill Bit
    Thread R25,R28,R32,R38,T38,T45,T51,ST58, ST68
    Diameter 32mm-152mm (or 1 1/4 inch to 6 inch)
    Drill Bit Type Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit
    Carbide Insert Spherical and ballistic
    Body Design Normal body and retrac body
    Face Design Flat face and drop center face
    Material High strength alloy steel bar and tungsten carbide
    Color Green, Gold, Black or based on customer requirements.



    Applications

    R25, R28, R32, R38
    Used in drifting and tunneling.

    T38, T45, T51, ST58, ST68
    Used in benching and long hole drilling.

    Processing

    CNC milling and proprietary heat treatment process


    Competitive Advantage
    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

    High -grade tungsten carbide inserts

    T45 Thread Button Bit Specification



    T45 Button Bit
    Thread Diameter Buttons and Size (mm) Flushing hole Weight Part Number
    mm inch Front Gauge Angle Front Side kg
    T45 76 3 4×11 8×11 40° 2 - 2.6 4148300807
    76 3 5×11 8×12 35° 2 1 2.6 4148300808
    76 3 3×11,1×11 6×13 35° 3 - 2.4 4148300809
    76 3 4×11,1×11 8×12 35° 4 - 2.6 4148300810
    89 3 1/2 4×13 8×13 40° 2 - 4.6 4148300811
    89 3 1/2 6×11 8×12 35° 2 - 4.6 4148300812
    89 3 1/2 3×11,2×11 6×13 35° 3 1 4.1 4148300813
    89 3 1/2 4×11,1×11 8×12 35° 4 - 4.6 4148300814
    89 3 1/2 4×13,1×13 8×13 35° 4 - 4.6 4148300815
    102 4 5×14 8×14 40° 2 - 5 4148300816
    102 4 6×13 8×16 40° 2 1 5 4148300817
    102 4 3×13, 2×13 6×14 35° 3 1 4.5 4148300818
    102 4 4×13, 1×13 8×14 35° 4 - 4.5 4148300819
    102 4 4×13, 2×13 8×13 35° 4 1 4.5 4148300820

    We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retrac, etc.).
    Keywords

    Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
    Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools
