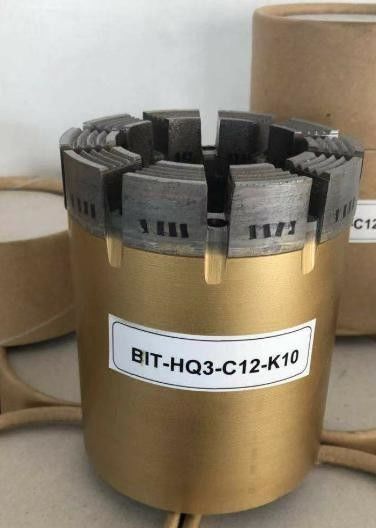

Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels

Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels

    • Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels
    • Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels
    • Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels
  • Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Exploration Drilling Tools

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Type: Diamond Bit & Reamer Material: Tungsten Carbide And Alloy Steel
    Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
    Model: AQ BQ NQ HQ PQ Application: Geological Exploration

    Q3 Wire-line core barrelas Diamond Core Drill Bit

    for Triple Tube Core Barrels used in geological drilling



    Description:

    HQ3 Bottom Discharge Diamond Core Drill Bit for Triple Tube Core Barrels Features:

    1. Significantly outperforms the successful Series range in drilling speed and bit life.
    2. Protects the diamond from oxidation and surface degradation.
    3. Inhibits the premature "pull-out" of the diamond.
    4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.



    Specifications:



    Size Outside diameter(mm) Inside diameter(mm)
    AQ 47.75/47.50 27.10/26.85
    BQ 59.69/59.44 36.52/36.27
    BQ3 59.69/59.44 33.65/33.40
    NQ 75.44/75.19 47.75/47.50
    NQ2 75.44/75.19 50.80/50.55
    NQ3, NQTT 75.44/75.19 45.21/44.96
    HQ 95.76/95.38 63.63/63.38
    HQ3, HQTT 95.76/95.38 61.24/60.99
    PQ 122.30/121.80 85.09/84.84
    PQ3 122.30/121.80 83.18/82.93

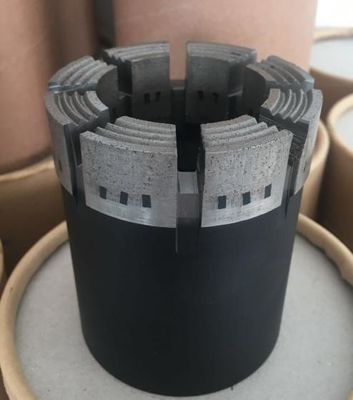

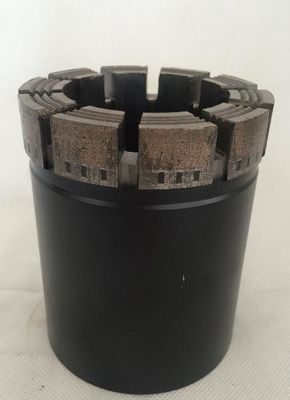

    Product pictures

    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels



    Related products
    Core Ddrill bit / Diamond drilling bit
    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels     Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels     Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels     Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels

    Drilling Rods(Pipes)

    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels       Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels       Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels

    Core barrel accessories

    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels     Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels


    Product testing

    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core BarrelsGeological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels



    Diamond bits Crown Shape

    Diamond bits Crown Shape and Applications
    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Flat

    applicable to drilling different levels of hardness or abrasive formation, generally for

    single and dual tube drill bits.

    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Semi-round

    good distribution of the diamond at bit face, adapt to a small broken or loose formation, applicable to drilling medium-hard and hard formation.

    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Ladder applicable to drilling medium-hard, broken or interbedded formations, hole deviation can be prevented.
    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Serrated applicable to drilling hard and dense formation, Enhancing drilling rate.
    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Ladder serrated applicable to drilling medium-hard, have good stability during the drilling.
    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Gear type applicable to harder or dense formations, enhancing drilling rate.
    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels Bottom jetting

    bottom jetting applicable to drilling sedimentary or metamorphic formations which containing more power, high coring recovery rate and avoid excessive washout of core .




    Application

    Geological exploration drilling.



    Specifications of Diamond bits & reamers

    Overseas Standard Q Series AQ BQ NQ PQ BQ3 NQ3 HQ3 PQ3 AW BW NW HW PW
    Others ATW BTW NTW



    Packaging & Shipping

    1. Delivery time: around 15-20days

    2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

    Bulk order: we suggest by air or by sea.

    3. Package : Carton or Wooden Box



    Geological Drilling Q3 Diamond Core PDC Drill Bit For Triple Tube Core Barrels
