    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Exploration Drilling Tools

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Type: Diamond Bit & Reamer Material: Tungsten Carbide And Alloy Steel
    Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
    Model: AQ BQ NQ HQ PQ Application: Geological Exploration

    BQ,NQ,HQ,PQ Wireline Core barrel / Triple tube core barrels for Exploration



    Description:

    Core Barrels include single tube type, double tube type and triple tube type.



    Core barrel accessories:

    --- Head assembly, inner tube, outer tube, core lifter, core lifter case, split tube, locking coupling, adaptor coupling, landing ring, inner tube stabilizer, stop ring.





    Double Tube Core Barrels



    ---TT Series Core Barrel
    Ultra-thin walled double tube core barrels, available diameters 46 and 56 mm. Very
    thin cutting face allows very rapid rate of penetration through hard formations. They are
    suitable forunderground mining applications.
    ---T2 Series Double Tube Core Barrels
    The T2 Series are thin wall double tube core barrel, used for surface exploration, especially mining applications.
    Due to their thin kerf, these core barrels provide rapid penetration. Available in diameters 46, 56, 66, 76, 86, 101mm.
    ---T6 Series Double Tube Core Barrels
    These are a continuation of the T2 series, but of a sturdier design and available in larger diameters,
    76, 86, 101, 116. 131 and 146mm. They are applied in surface mining and geotechnical drilling.
    ---LTK 48 & LTK 60 Double Tube Core Barrels
    The LTK series core barrels system is a thinner wall core barrel than T2 series. They offer a cost effective,
    high production, which is designed for optimum production and core recovery in medium to extra hard rock formations.
    Available sizes 48 and 60mm.
    ---WF Series Double Tube Core Barrels
    They are geotechnical core barrels primarily designed for coring relatively soft formations in using face-discharge bits.
    Simple construction and more resilient to damage than thin-wall barrels, but with slower enetration rate.
    ---WG Series Double Tube Core Barrels
    There are single tube core barrels for WG series. Available in DCDMA sizes E, A, B, N, and H.
    ---TBW and TNW Core Barrels
    These are thin-walled double tube core barrels, as T2 series but with DCDMA hole sizes B and N.
    Used for surface exploration, specially mining applications. The thin kerf area allows rapid penetration.
    ---Wireline Double Tube Core Barrels
    Wireline double core barrels are primarily used in deep coring. With an overshot device,
    they eliminatethe need to couple and uncouple the rod string each time the core is retrieved.
    Available in DCDMA sizes A, B, N, H ,and P.
    ---Chinese Standard Double Tube Core Barrels
    ---Chinese Standard Wireline Double Tube Core Barrels
    ---Jet-type Reverse Circulation Double Tube Core Barrels


    Triple Tube Core Barrels



    ---MLC (Triefus) Series Core Barrels

    These triple tube core barrels are generally used for geotechnical purpose, designed to maximize core recovery
    in soft formations. Available diameter sizes from 35-146mm.

    ---Wireline Triple Tube Core Barrels

    Wireline triple tube core barrels are generally required in broken, fractured formations. They incorporate a third,
    split inner tube on base of wireline double tube core barrel. This can be pumped out of the inner tube after retrieval,
    allowing the core to be examined in its in-situ state.





    Single Tube Core Barrel



    ---B Series Single Tube Core Barrels

    B series are single tube core barrels, often used in situations where core preservation is not essential and for concrete coring. Available diameters 46-146mm.

    ---WG Series Single Tube Core Barrels



    There are double tube core barrels for WG series. Available in DCDMA sizes E, A, B, N, and H.



    ---Chinese Standard Single Tube Core Barrels

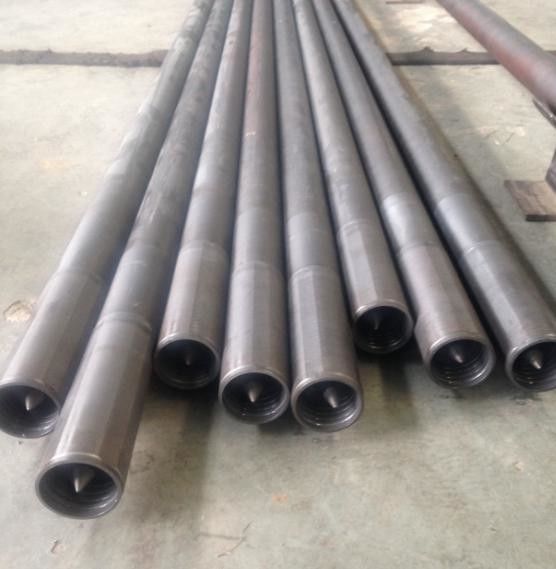

    Product pictures

     Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration



    Related products
    Core Ddrill bit / Diamond drilling bit
    Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration     Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration     Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration     Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration

    Drilling Rods(Pipes)

    Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration       Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration       Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration

    Core barrel accessories

    Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration     Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration



    Application

    Geological exploration drilling.



    Specifications of Diamond bits & reamers

    Overseas Standard Q Series AQ BQ NQ PQ BQ3 NQ3 HQ3 PQ3 AW BW NW HW PW
    Others ATW BTW NTW



    Packaging & Shipping

    1. Delivery time: around 15-20days

    2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

    Bulk order: we suggest by air or by sea.

    3. Package : Carton or Wooden Box



    Wireline Concrete Core Barrels / Triple Tube Core Barrels For Exploration
