    Detailed Product Description
    Name: DTH Button Bit Bit Shank: DHD360
    Diameter: 254mm (10'' Inch) Face Type: Flat Face
    Application: Down The Hole Rock Drilling, Mining Color: Green

    254mm Flat Face 10 Inch DTH Button Bit For DHD360 High Air Pressure DTH Hammer



    254mm (10 Inch)  DHD360 DTH Flat Face Ballistic Button Bit:



    Product: DTH Button Bit



    Diameter: 254mm



    Bit Shank: DHD360



    Face Design: Flat Face



    Button/Carbide Type: Ballistic



    Button Number and Diameter: 12x18mm gauge, 26x16mm front



    Flushing Holes: 2 front flushing holes



    Foot Valve: have to foot valve.



    P/N4148301743



    Weight: 63kg per piece



    Color: Green

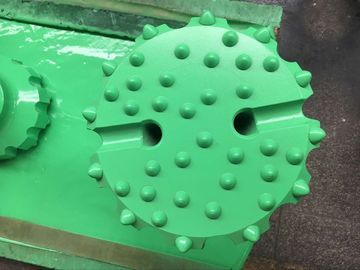

    Photo:



    254mm / 10 Inch DTH Drill Bits For DHD360 DTH Hammer 152mm - 203mm



    254mm / 10 Inch DTH Drill Bits For DHD360 DTH Hammer 152mm - 203mm

    Spherical Concave Face DTH Button Bit For DHD360 Hammer



    254mm / 10 Inch DTH Drill Bits For DHD360 DTH Hammer 152mm - 203mm



    DHD360



    254mm / 10 Inch DTH Drill Bits For DHD360 DTH Hammer 152mm - 203mm



    Ballistic Convex Face DTH Button Bit For DHD360 Hammer

    254mm / 10 Inch DTH Drill Bits For DHD360 DTH Hammer 152mm - 203mm

    254mm / 10 Inch DTH Drill Bits For DHD360 DTH Hammer 152mm - 203mm



    Spherical Flat Face DTH Button Bit For DHD360 Hammer

    254mm / 10 Inch DTH Drill Bits For DHD360 DTH Hammer 152mm - 203mm





    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



    Basic Information



    Product

    DTH Button Bits

    Low Air Pressure CIR80, CIR90

    3’’

    DHD3.5, M30,

    4’’

    DHD340, SD4,QL40, M40

    5’’

    DHD350, SD5,QL50, M50

    6’’

    DHD360, SD6,QL60, M60

    8’’

    DHD380, SD8,QL80, M80

    Color

    Green, Gold, Black or based on customer requirements.

    MOQ:

    No MOQ required for testing and trial order



    Applications



    • Underground mining

    • Down the hole rock drilling



    Competitive Advantage



    • High-grade tungsten carbide inserts
    • Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment


    6'' High Air Pressure DTH Bit for DHD360 Shank Specification

    Diameter Buttons and Size (mm) Flushing hole Weight Part Number
    mm inch Front Gauge kg
    DHD360 Spherical button/Concave face
    152 6 4×16,4×16 8×18 2 26 4148301383
    155 6 1/8 4×16,4×16 8×18 2 27 4148301384
    159 6 1/4 4×16,4×16 8×18 2 29 4148301385
    165 6 1/2 4×16,4×16 8×18 2 30 4148301386
    165 6 1/2 4×18,4×18 8×18 2 30 4148301387
    172 6 3/4 4×18,4×18 8×18 2 31 4148301388
    178 7 4×18,4×18 8×18 2 32 4148301389
    190 7 1/2 3×18,5×18 9×18 3 34 4148301390
    203 8 3×18,6×18 9×18 3 36 4148301391
    DHD360 Ballistic button/Convex face
    152 6 6×16,4×16 9×18 3 26 4148301392
    155 6 1/8 6×16,4×16 9×18 3 27 4148301393
    159 6 1/4 6×16,4×16 9×18 3 29 4148301394
    165 6 1/2 6×18,4×18 9×18 3 30 4148301395
    172 6 3/4 6×18,4×18 9×18 3 31 4148301396
    178 7 6×18,4×18 9×18 3 32 4148301397
    190 7 1/2 6×18,5×18 9×18 3 34 4148301398
    203 8 6×18,6×18 9×18 3 36 4148301399
    DHD360 Spherical button/Flat face
    152 6 8×16 9×18 3 26 4148301400
    155 6 1/8 8×16 9×18 3 27 4148301401
    159 6 1/4 9×16 9×18 3 29 4148301402
    165 6 1/2 8×16 9×18 3 30 4148301403
    165 6 1/2 8×16 9×18 3 30 4148301404
    172 6 3/4 8×18 9×18 3 31 4148301405
    178 7 8×18 9×18 3 32 4148301406
    190 7 1/2 9×18 9×18 3 34 4148301407
    203 8 9×18 9×18 3 36 4148301408



    We can design and manufacture the personalized products to meet your special application, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
