Place of Origin: | China |
Brand Name: | KSQ |
Model Number: | Coupling Sleeves |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Carton or Wooden Box |
Delivery Time: | 10 - 20 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20000 PCS Per Month |
Thread Model: | R25 R32 R38 T38 | Material: | Tungsten Carbide And High Strength Alloy Steel |
---|---|---|---|
Colors: | Green, Black, Yellow Or Based On Request | Application: | Mining Operations, Tunneling, Quarrying, Construction |
Diameter, Mm: | 35; 38; 44; 45; 56 | ||
High Light: | crossover coupling,rock drilling tool,threaded coupling |
Drifting and Tunneling Tools

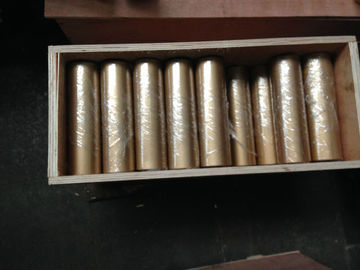

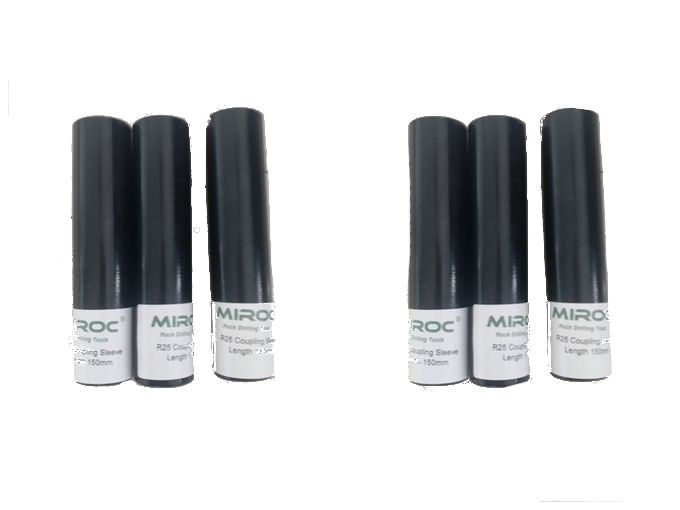

Coupling Sleeves of Different Diameter
Product Description :
Coupling | Length, mm | Diameter, mm | Thread | Weight approx., kg |
Coupling Sleeves | 155 | 44 | R32 | 1.0 |
150 | 35 | R25 | 0.7 | |
160 | 38 | R25 | 1.3 | |
Coupling Sleeves of Different Diameter | 150 | 45 | R25-R32 | 1.1 |
160 | 45 | R25-R32 | 1.2 | |
160 | 56 | R25-R38 | 2.5 | |
170 | 56 | R25-T38 | 3.2 |
Product features:
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Package: Carton or Wooden Box; also we can follow customers' requirements.
Application:
1. Underground Mining
2. Widely used in drifting and tunneling
3. Used in small hole drilling.
Delivery time is around 15-25 days.
P.S. We can design and manufacture products according to customers’ requirements.
