    Name: DTH Hammer Series: CIR, BR, COP,DHD,MISSION,QL,SD,NUMA
    Size: 3'', 3.5'', 4'', 5'', 6'' ,8'', 10'', 12'' Etc. Type: With Foot Valve, No Foot Valve
    Use: Tunneling, Mining,Quarrying,Water Well Color: Green,Black ,Orange ,Blue,Golden

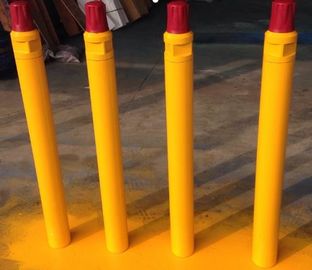

    High Air Pressure 4"DTH Hammers and bits SD4/QL40/DHD340/M40 for mining and water well


    In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.

    Basic Information



    Items Replacement Parts
    1 Top sub
    2 O-ring of top sub
    3 Breakout Ring
    4 Check Valve
    5 Spring
    6 Compression Buffer
    7 Air Distributor
    8 Internal cylinder
    9 Piston
    10 External cylinder
    11 Guide sleeve
    12 O-ring of stop ring
    13 Stop ring
    14 Breakout ring
    15 Drive chunk
    16 Drill bit



    Photos
    High Air Pressure 4" DTH Hammers And Bits For Tunneling Mining / Water Well
    High Air Pressure 4" DTH Hammers And Bits For Tunneling Mining / Water WellHigh Air Pressure 4" DTH Hammers And Bits For Tunneling Mining / Water Well



    QL40 Hammer Specification


    Drilling Diameter(mm) Hammer Length(mm) External Diameter(mm) Weight(kg)
    φ110-φ135 1097(without bit) 99 41(without bit)
    Working Pressure(Mpa) Air Consumption(m³/min)
    1.2-2.0 1.0Mpa: 6m³/min 1.8Mpa: 10m³/min 2.4Mpa: 15m³/min
    Impact rate at 17 bar Connection Rod Thread Recommended Rotation Speed Bit Shank
    27HZ API 2-3/8'' Reg 25-40 r/min. QL40


    DHD340 Hammer Specification


    Drilling Diameter(mm) Hammer Length(mm) External Diameter(mm) Weight(kg)
    φ108-φ130 881(without bit) φ99 38
    Working Pressure(bar) Air Consumption(m³/min)
    8.0-30.0 10bar: 5 18bar: 10.2 24bar: 15
    Connection Rod Thread Bit Shank
    API 2-3/8” Reg DHD340A( With Foot Valve)



    Type
    Model
    Length
    (mm)
    Weight
    (kg)
    External Dia.(mm)
    Hole Range
    (mm)
    3.5 inch
    DHD3.5
    930
    25
    Φ82
    Φ90-110
    4 inch
    DHD340
    1030
    39
    Φ99
    Φ110-135
    SD4
    1084
    40.5
    Φ99
    QL40
    1097
    41
    Φ99
    Mission40
    1005
    40
    Φ99
    5 inch
    DHD350
    1214
    76.5
    Φ125
    Φ135-155
    SD5
    1175
    72.5
    Φ125
    QL50
    1147
    73
    Φ125
    Mission50
    1110
    68.5
    Φ125
    6 inch
    DHD360
    1248
    100
    Φ142
    Φ155-190
    SD6
    1261
    100
    Φ142
    QL60
    1212
    95
    Φ146
    Mission60
    1161
    90
    Φ146
    8 inch
    D85
    1492
    188
    Φ180
    Φ195-254
    SD8
    1463
    192
    Φ180
    QL80
    1465
    182
    Φ180
    Mission80
    1338
    176
    Φ180
    10 inch
    SD10
    1502
    290
    Φ226
    Φ254-311
    NUMA100
    1510
    288
    Φ226
    12 inch
    DHD1120

    All can be designed according to your requests!
    Numa120
    Numa 125



    Applications


    • Underground mining
    • Down the hole rock drilling



    Competitive Advantage


    •  Valveless air distribution, more reliable.

    •  Simple design of the piston. Long life span.

    •  More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.

    •  Fewer internal parts, simple structure, less failure and easier to maintain.

    •  Easy to disassembled because the top sub, the drive chuck and the external cylinder are connected by       multiple steps thread.
