| Product Name: | T45 Coupling Sleeve | Machine Type: | Drilling Tool |
|---|---|---|---|
| Processing Type: | Forging | Usage: | Underground Mining |
| Application: | Drifting And Tunneling | Material: | Carbon Steel |
| High Light: | crossover coupling,rock drilling tool,threaded coupling |
||
T45 Coupling Sleeve With Length 210mm Diameter 63mm
Couplings sleeve are used to well connect the shank adapter to the drill rods or well contact two extension rods for transmitting energy. It has standard type coupling and crossover coupling.
T45 Coupling Sleeve
Diameter: 63mm
Length: 210mm
Miroc P/N4148300881
Color: Black
Weight: 3kg
Widely used drifting and tunneling

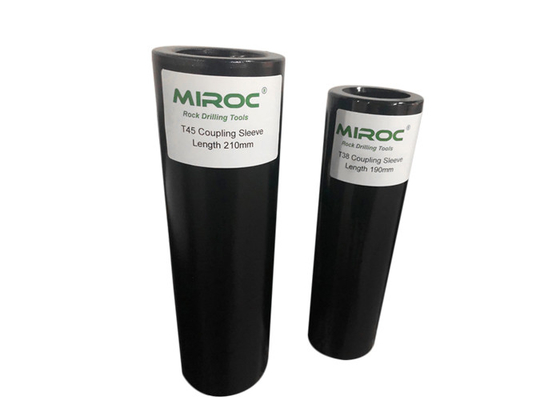

T45 Thread Coupling Sleeve Photos
T45 Coupling Sleeve [D: 63x210mm] P/N4148300881
T45 Coupling Sleeve Specification
| Coupling | Length | Diameter | Thread | Weight | Part Number | ||
| mm | inch | mm | inch | kg | |||
| Coupling | 210 | 8 1/4 | 63 | 2 1/2 | T45 | 3 | CS-T45-210 |

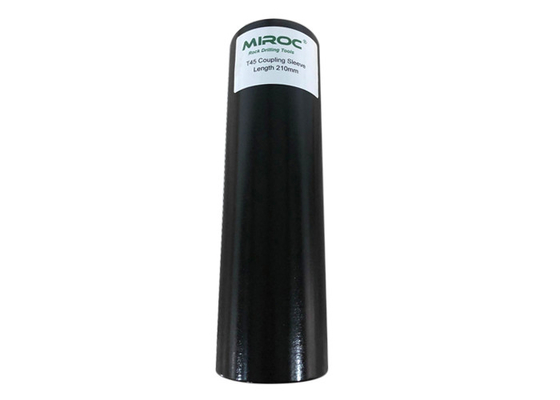

T45 210mm Coupling Sleeve Diameter 63mm

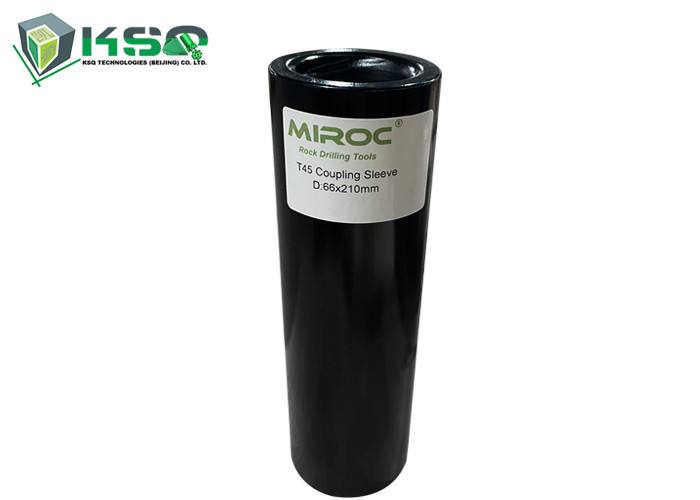

T45 210mm Coupling Sleeve Diameter 66mm
T45 Mining Coupling Sleeve Rock Drilling Tools
Description
Coupling Sleeve using T45 thread system
T45 thread system
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Applications
• Underground Mining
• Widely used in drifting and tunneling
Used in small hole drilling.
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Coupling Sleeve from KSQ Technologies:
Coupling Sleeve Type:
1. Semi-Bridge Coupling
2. Full-Bridge Coupling
3. Adapter Coupling
More Coupling Sleeves from KSQ Technologies:
R25 Coupling Sleeve
R28 Coupling Sleeve
R32 Coupling Sleeve
R38 Coupling Sleeve
T38 Coupling Sleeve
T45 Coupling Sleeve
T51 Coupling Sleeve
| Coupling Sleeve | ||||||
| Length | Diameter | Thread | Weight | Part Number | ||
| mm | inch | mm | inch | kg | ||
| R25 Coupling Sleeve | ||||||
| 150 | 5 8/9 | 35 | 1 3/8 | R25 | 0.7 | 4148300429 |
| 155 | 6 1/9 | 44 | 1 3/4 | R25 | 1.0 | 4148300430 |
| 160 | 6 2/7 | 38 | 1 1/2 | R25 | 1.3 | 4148300431 |
| R28 Coupling Sleeve | ||||||
| 150 | 5 8/9 | 40 | 1 4/7 | R28 | 0.9 | 4148300483 |
| 170 | 6 5/7 | 55 | 2 1/6 | R28 | 2.0 | 4148300484 |
| R32 Coupling Sleeve | ||||||
| 150 | 5 8/9 | 44 | 1 3/4 | R32 | 1.0 | 4148300646 |
| 160 | 6 2/7 | 44 | 1 3/4 | R32 | 1.1 | 4148300647 |
| R38 Coupling Sleeve | ||||||
| 170 | 6 5/7 | 55 | 2 1/6 | R38 | 1.9 | 4148300703 |
| 190 | 7 1/2 | 55 | 2 1/6 | R38 | 2.1 | 4148300704 |
| T38 Coupling Sleeve | ||||||
| 190 | 7 1/2 | 55 | 2 1/6 | T38 | 2.1 | 4148300803 |
| T45 Coupling Sleeve | ||||||
| 210 | 8 1/4 | 63 | 2 1/2 | T45 | 3.0 | 4148300881 |
| 210 | 8 1/4 | 66 | 2 3/5 | T45 | 3.3 | 4148300882 |
| T51 Coupling Sleeve | ||||||
| 225 | 8 6/7 | 71 | 2 4/5 | T51 | 4.6 | 4148300961 |
| 225 | 8 6/7 | 76 | 3 | T51 | 4.8 | 4148300962 |
| 235 | 9 1/4 | 72 | 2 5/6 | T51 | 4.7 | 4148300963 |
| 235 | 9 1/4 | 77 | 3 | T51 | 4.9 | 4148300964 |
Crossover Coupling Specification
| Length | Diameter | Thread | Weight | Part Number | ||
| mm | inch | mm | inch | kg | ||
| R25-R32 | ||||||
| 150 | 5 8/9 | 45 | 1 7/9 | R25-R32 | 1.1 | 4148300432 |
| 160 | 6 2/7 | 45 | 1 7/9 | R25-R32 | 1.2 | 4148300433 |
| R25-R38 Crossover Coupling | ||||||
| 160 | 6 2/7 | 56 | 2 1/5 | R25-R38 | 2.5 | 4148300434 |
| 170 | 6 5/7 | 56 | 2 1/5 | R25-R38 | 3.2 | 4148300435 |
| R28-R32 Crossover Coupling | ||||||
| 160 | 6 2/7 | 45 | 1 7/9 | R28-R32 | 1.2 | 4148300485 |
| 160 | 6 2/7 | 56 | 2 1/5 | R28-R32 | 2.5 | 4148300486 |
| R28-R38 Crossover Coupling | ||||||
| 160 | 6 2/7 | 55 | 2 1/6 | R28-R38 | 1.8 | 4148300584 |
| 170 | 6 5/7 | 55 | 2 1/6 | R28-R38 | 2.0 | 4148300585 |
| 180 | 7 1/9 | 55 | 2 1/6 | R28-R38 | 2.2 | 4148300586 |
| 210 | 8 1/4 | 55 | 2 1/6 | R28-R38 | 2.8 | 4148300587 |
| R28-T38 Crossover Coupling | ||||||
| 170 | 6 5/7 | 56 | 2 1/5 | R28-T38 | 2.1 | 4148300588 |
| 180 | 7 1/9 | 56 | 2 1/5 | R28-T38 | 2.2 | 4148300589 |
| 210 | 8 1/4 | 56 | 2 1/5 | R28-T38 | 2.8 | 4148300590 |
| R28-T45 Crossover Coupling | ||||||
| 190 | 7 1/2 | 63 | 2 1/2 | R28-T45 | 3.2 | 4148300591 |
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
MIROC® Rock Drilling Tools include:
