Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling

Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling

    • Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling
    • Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling
    • Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling
  • Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Exploration Drilling Tools

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Type: Diamond Bit & Reamer Material: Tungsten Carbide And Alloy Steel
    Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
    Model: AQ BQ NQ HQ PQ Application: Geological Exploration

    Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ



    Description:

    Impregnated diamond bits have the widest range of application. They are the most commonly useful bits from medium to super hard formations in the mineral exploration industry. the Hardness and abrasive of the rock formation are the key factors to determine the diamond specifications, concentration and matrix
    hardness.



    Diamond bits Crown Shape

    Diamond bits Crown Shape and Applications
    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling Flat

    applicable to drilling different levels of hardness or abrasive formation, generally for

    single and dual tube drill bits.

    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling Semi-round

    good distribution of the diamond at bit face, adapt to a small broken or loose formation, applicable to drilling medium-hard and hard formation.

    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling Ladder applicable to drilling medium-hard, broken or interbedded formations, hole deviation can be prevented.
    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling Serrated applicable to drilling hard and dense formation, Enhancing drilling rate.
    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling Ladder serrated applicable to drilling medium-hard, have good stability during the drilling.
    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling Gear type applicable to harder or dense formations, enhancing drilling rate.
    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling Bottom jetting

    bottom jetting applicable to drilling sedimentary or metamorphic formations which containing more power, high coring recovery rate and avoid excessive washout of core .



    Toothed bits can get higher drilling efficiency when it is drilling at dense or abrasive stratum with lower drilling speed and pressure. It was especially effective at coal formation, using toothed bits can get better
    water flowing and drilling footage effect. Nowadays, Impregnated diamond bits have been widely used in wire-line drilling series.


    Application

    Geological exploration drilling.



    Specifications of Diamond bits & reamers



    Core Barrel Designation

    Outside Set Diameter

    Inside Set Diameter

    Maximum

    Minimum

    Maximum

    Minimum

    Inch

    mm

    Inch

    mm

    Inch

    mm

    Inch

    mm

    AQ

    1.88

    47.75

    1.87

    47.5

    1.067

    27.1

    1.057

    26.85

    BQ

    2.35

    59.69

    2.34

    59.44

    1.438

    36.52

    1.428

    36.27

    NQ

    2.97

    75.44

    2.96

    75.19

    1.88

    47.75

    1.87

    47.5

    HQ

    3.77

    95.76

    3.755

    95.38

    2.505

    63.63

    2.495

    63.38

    PQ

    4.815

    122.3

    4.795

    121.8

    3.35

    85.09

    3.34

    84.84




    Photos:

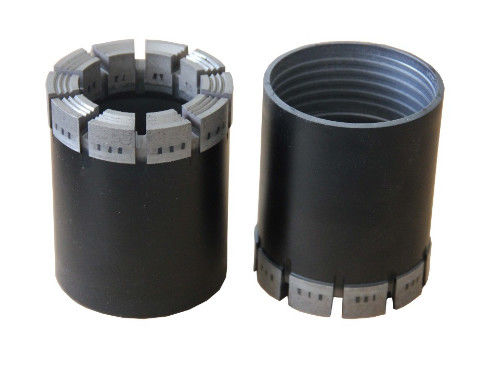

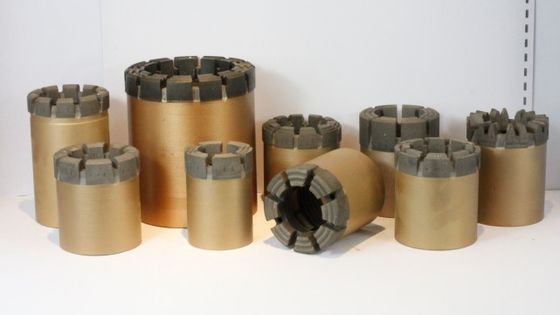

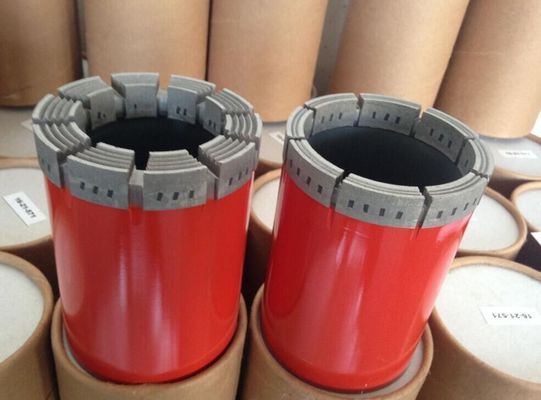

    Diamond core bit





    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling

    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling

    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling

    Reamer

    Impregnated Diamond Core PDC Drill Bit For Mineral Exploration / Core Sampler Drilling
