Place of Origin: | China |
Brand Name: | MIROC down the hole hammer drill tool |
Certification: | SGS certified, ISO |
Model Number: | DTH Button Bit |
Minimum Order Quantity: | 10 Pieces DTH Button Drill Bit |
---|---|
Price: | Negotiation |
Packaging Details: | Carton Box or Wooden Box |
Delivery Time: | 25 days |
Supply Ability: | 20000 pieces per month |
Application: | Water Well Drilling, Quarry Drilling, Construction Rock Drilling | Hammer Type: | QL40 / QL50 / QL60 / QL80 High Air Pressure |
---|---|---|---|
Shank: | QL40 / QL50 / QL60 / QL80 Shank | Bit Diameter: | 133mm 140mm 146mm 152mm 165mm |
Name: | DTH Button Bit | Drill Method: | DTH (Down The Hole) Drilling |
High Light: | carbide tipped drill bits,dth hammer bits |
QL40 / QL50 / QL60 / QL80 DTH Button bits
For Underground Long Hole Rock Drilling
DTH Button Bit Description:
DTH bit is our main product. After mang years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.
1. high and low air pressure down-the-hole drill bits
2. Low air pressure holeDia.:65-220mm
3. High air pressure hole Dia.:85-305mm
4. Face type:drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as Mission, COP, SD, QL ect.
Basic Information
HAMMER INCH
|
BIT DIA(MM)
|
BIT DIA(INCH)
|
SHANK
|
1
|
64MM-76MM
|
2 1/2"-3"
|
BR1
|
2
|
76MM-90MM
|
3"-3 1/2"
|
BR2/PAD320
|
3
|
85MM-105MM
|
3 2/5"-4"
|
BR3/DHD330/COP32/PAD330
|
3.5
|
85MM-110MM
|
3 2/5"-4 1/3"
|
DHD3.5/IR3.5/COP34/QL30/PAD3.5
|
4
|
105MM-140MM
|
4"-5 1/2"
|
DHD340/COP44/QL40/SD4/MISSION40/PAD340
|
5
|
127MM-200MM
|
5"-8"
|
DHD350/COP54/QL50/SD5/MISSION50/PAD350
|
6
|
152MM-254MM
|
6"-10"
|
DHD360/COP64/QL60/SD6/MISSION60/PAD360
|
8
|
195MM-350MM
|
7.2/3"-13 4/5"
|
DHD380/COP84/QL80/SD8/MISSION80/PAD380
|
10
|
254MM-380MM
|
10"-15"
|
SD10/NUMA100/DHD1100/PAD1100
|
12
|
305MM-457MM
|
12"-18"
|
SD12/NUMA120/DHD1120/PAD1120
|
Product | DTH Button Bits |
Low Air Pressure | CIR80, CIR90 |
3’’ | DHD3.5, M30, |
4’’ | DHD340, SD4,QL40, M40 |
5’’ | DHD350, SD5,QL50, M50 |
6’’ | DHD360, SD6,QL60, M60 |
8’’ | DHD380, SD8,QL80, M80 |
Color | Green, Gold, Black or based on customer requirements. |
MOQ: | No MOQ required for testing and trial order |

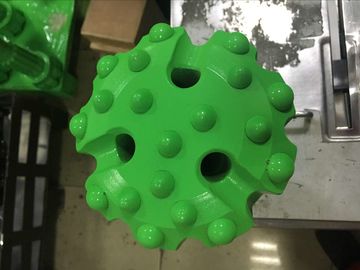

DTH Button Bit Photo:
QL40
QL50
QL60
QL80
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
Patameter
Shank style | Diameter in mm | Flat face | Convex face | Concave face | Approx. weight | Part number |
QL 40 |
105 | √ | √ | √ | 9.9 kgs | QL 40-105 |
110 | √ | √ | √ | 10.1 kgs | QL 40-110 | |
115 | √ | √ | √ | 10.2kgs | QL 40-115 | |
120 | √ | √ | √ | 10.5 kgs | QL 40-120 | |
127 | √ | √ | √ | 11.2 kgs | QL 40-127 | |
QL 50 |
135 | √ | √ | √ | 16.2 kgs | QL50-135 |
140 | √ | √ | √ | 16.6 kgs | QL50-140 | |
146 | √ | √ | √ | 17.1 kgs | QL50-146 | |
152 | √ | √ | √ | 17.8 kgs | QL50-152 | |
165 | √ | √ | √ | 18.0 kgs | QL50-165 | |
QL 60 |
152 | √ | √ | √ | 22.3 kgs | QL60-152 |
165 | √ | √ | √ | 24.4kgs | QL60-165 | |
171 | √ | √ | √ | 24.8 kgs | QL60-171 | |
190 | √ | √ | √ | 29.0 kgs | QL60-190 | |
203 | √ | √ | √ | 33.0 kgs | QL60-203 | |
QL 80 |
203 | √ | √ | 48.5 kgs | QL80-203 | |
216 | √ | √ | 50.1 kgs | QL80-216 | ||
241 | √ | √ | 60.1 kgs | QL80-241 | ||
254 | √ | √ | 62.5 kgs | QL80-254 | ||
292 | √ | √ | 85.0 kgs | QL80-292 | ||
305 | √ | √ | 83.9 kgs | QL80-305 |
We can design and manufacture the personalized products to meet your special application, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Keywords
DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit
Applications
1. Mine and quarry
2. Road construction for the drilling and blasting work
3. Water well drilling
4. Slope protection
KSQ Related Rock Drilling Tools
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
