| Place of Origin: | China |
| Brand Name: | MIROC (KSQ) |
| Certification: | ISO 9001 |
| Model Number: | ST58 Retrac Button Bit |
| Minimum Order Quantity: | Negotiated one |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 10 - 25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 PCS Per Month |
| Type Of Bit: | Retrac Button Bit | Thread: | ST58 |
|---|---|---|---|
| Type Of Buttons: | Spherical And Ballistic | Diameter, Mm: | 89, 102, 115 |
| Min Weight, Kg: | 5.1 | Colors: | Green, Black, Yellow Or Based On Request |
| Application: | Mining Operations, Bench Drilling And Long Hole Drilling, Drifting And Tunneling, Quarrying, Construction | Material: | Tungsten Carbide And High Strength Alloy Steel |
| Flushing Holes: | Front And Side | ||
| High Light: | mining drill bits,spherical drill bit |
||

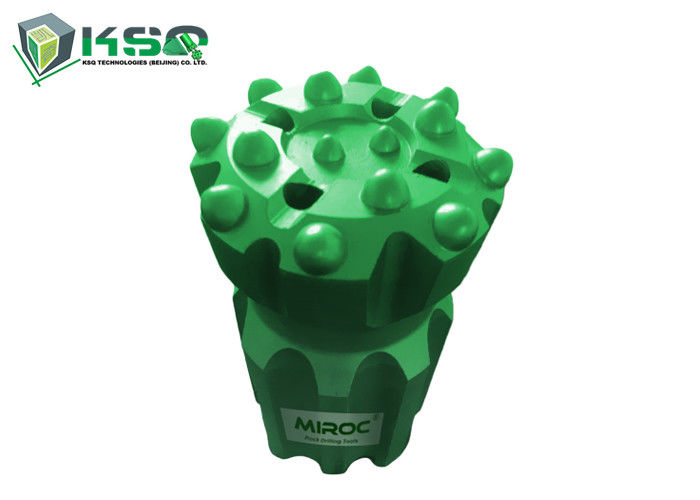

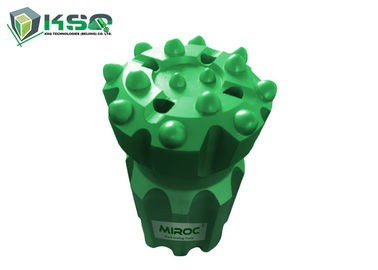

ST58 Retrac Button Bit
Specifications:

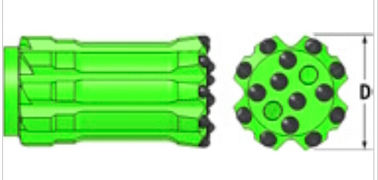

| Drill Bit | Diameter | No x Buttons Diameter | Flushing Holes | Weight, kg | ||||
| mm | foot | Front | Gauge | Angle | Front | Side | ||
| Spherical and Ballistic | ||||||||
| 89 | 3 ½ | 6 x 12 | 8 x 14 | 35 | 2 | 1 | 5.1 | |
| 89 | 3 ½ | 4x13,1x13 | 8 x 13 | 35 | 4 | - | 5.1 | |
| 102 | 4 | 7 x 12 | 8 x 14 | 35 | 2 | 1 | 6.5 | |
| 115 | 4 ½ | 6 x 14 | 8 x 16 | 35 | 2 | - | 8.5 | |
This type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations. Featuring spherical and ballistic tungsten carbide inserts that is known to have strong configuration against carbide fracture. Recommended for eliminating hole deviation. Used in benching and long hole drilling.
Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions
Application:
1. Underground mining
2. Drifting anf Tunneling
3. In granite and marble quarry
4. Gold Mine
5. In benching and long hole drilling

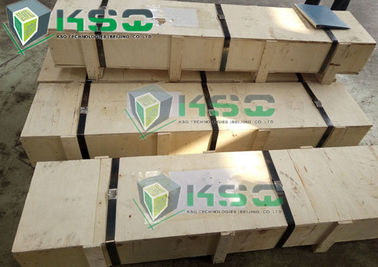

Package: Wooden Box; also we can follow customers' requirements.
Delivery time is around 15-25 days.
MIROC® Production:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Coupling Sleeves
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
