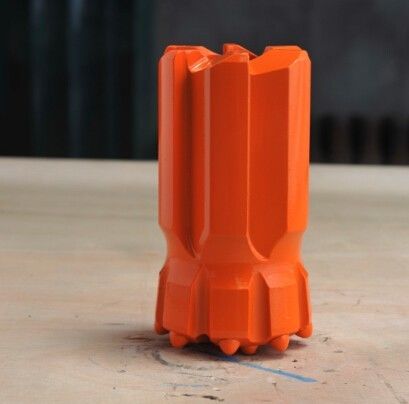

Carbide Rock Drill Bits 3 Inch Threaded Button T45 Retrac Rock Bit For Pneumatic Rock Drilling

Carbide Rock Drill Bits 3 Inch Threaded Button T45 Retrac Rock Bit For Pneumatic Rock Drilling

Carbide Rock Drill Bits 3 Inch Threaded Button T45 Retrac Rock Bit For Pneumatic Rock Drilling
Carbide Rock Drill Bits 3 Inch Threaded Button T45 Retrac Rock Bit For Pneumatic Rock Drilling
Carbide Rock Drill Bits 3 Inch Threaded Button T45 Retrac Rock Bit For Pneumatic Rock Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: CE ,ISO
Model Number: T45
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiated price
Packaging Details: dth drill bits first be packed in polybag,then be packed in plastic box or wooden box
Delivery Time: 5-15 working day
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability: 100 000pcs/month
Contact Now
Detailed Product Description
Machine: T45 Material: Tungsten Carbide
Diam: 51mm To 127mm Model Name: T45 Thread Button Bit
Use: Quarry Type: Mining Drilling Tools
High Light:

stone drilling bits

,

spherical drill bit

Carbide rock drill bits 3 inch Threaded Button Rock Drill Bits T45 Retrac Rock Bit for Pneumatic Rock Drilling

Product Name: Thread button bits
Description: For different rock hardness mining,tunneling,quarrying projects.
Material: Alloy steel bar and tungsten carbide bit
MOQ: trial order 1-5pcs
Body Type Normal type and retract type
Thread type R25,R28,R32,R38,T38,T45,T51,ST58,ST68
Diameter 32mm-152mm
Button bit shape Spherical and Ballistic
Face shape Flat shape and Drop-center shape

T45 Button Bit

Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
70 2 3/4 4×11 8×11 40° 2 - 2.3 4148300806
70 2 3/4 3×11, 1×19 6×11 35° 3 - 2.2 4148300807
70 2 3/4 4×10, 1×10 8×11 35° 4 - 2.2 4148300808
76 3 4×11 8×11 40° 2 - 2.6 4148300809
76 3 5×11 8×12 35° 2 1 2.6 4148300810
76 3 3×11, 1×11 6×13 35° 3 - 2.4 4148300811
76 3 4×11, 1×11 8×12 35° 4 - 2.6 4148300812
89 3 1/2 4×13 8×13 40° 2 - 4.6 4148300813
89 3 1/2 6×11 8×12 35° 2 - 4.6 4148300814
89 3 1/2 3×11, 2×11 6×13 35° 3 1 4.1 4148300815
89 3 1/2 4×11, 1×11 8×12 35° 4 - 4.6 4148300816
89 3 1/2 4×13, 1×13 8×13 35° 4 - 4.6 4148300817
102 4 5×14 8×14 40° 2 - 5 4148300818
102 4 6×13 8×16 40° 2 1 5 4148300819
102 4 3×13, 2×13 6×14 35° 3 1 4.5 4148300820
102 4 4×13, 1×13 8×14 35° 4 - 4.5 4148300821
102 4 4×13, 2×13 8×13 35° 4 1 4.5 4148300822
Ballistic
70 2 3/4 3×11, 1×19 6×11 35° 3 - 2.2 4148300823
70 2 3/4 4×10, 1×10 8×11 35° 4 - 2.2 4148300824
76 3 4×11 8×11 40° 2 - 2.6 4148300825
76 3 5×11 8×12 35° 2 1 2.6 4148300826
76 3 3×11, 1×11 6×13 35° 3 1 2.4 4148300827
76 3 4×11, 1×11 8×11 35° 4 - 2.6 4148300828
76 3 4×11, 1×11 8×12 35° 4 - 2.6 4148300829
89 3 1/2 4×13 8×13 40° 2 - 4.6 4148300830
89 3 1/2 6×11 8×12 35° 2 - 4.6 4148300831
89 3 1/2 3×11, 2×11 6×13 35° 3 1 4.1 4148300832
89 3 1/2 4×11, 1×11 8×12 35° 4 - 4.6 4148300833
89 3 1/2 4×13, 1×13 8×13 35° 4 - 4.6 4148300834








KSQ Technology CO., LTD. founded in 2012, with registered capital of 1.05 billion RMB and first investment of 1.3 billion RMB, GEOTOOLS specializes in producing high quality tungsten powder, tungsten carbide powder, carbide anvils, carbide roll rings, carbide substrates for PDC bit, hard facing materials, mining drill bits, and construction tools. Now our clients spread more than 20 developed countries.



KSQ Technology Co.,LTD Rock Drilling Tools are the extension of the cemented carbide products of "Golden Egret"brand and the last part of the tungsten products chain. Based on the technologies accumulated in more than 30 years on tungsten metallurgy and 20 years on cemented carbide manufacturing,we produce high quality and stability Rock Drilling Tools with the impact resistance and wear resistance carbide buttons and well forged steel body in our high efficiency automatic production.
At present, Our Rock Drilling Tools cover Tapered Drill Bits, Threaded Drill Bits and DTH Hammer Bits. We develop and supply the sharpest and most suitable rock drilling tools for different rock types and working conditions.
