Hardened Tapered Drill Rod With Shank 22 X 108mm 610mm - 8000mm Length

Hardened Tapered Drill Rod With Shank 22 X 108mm 610mm - 8000mm Length

Hardened Tapered Drill Rod With Shank 22 X 108mm 610mm - 8000mm Length

Product Details:

Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: ISO
Model Number: Taper Drill Rod

Payment & Shipping Terms:

Minimum Order Quantity: 20 Pieces
Price: negotiation
Packaging Details: Wooden Box or Bundle
Delivery Time: 10-20days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Type: Taper Drill Rod Taper: 7degree,11degree, 12 Degree
Length: 610mm-8000mm Shank: Shank 22x108mm
Body: Round Hex



 600mm 800mm 1200mm 1600mm 2000mm Taper Drill Rod - 7 Degree,  11 Degree, 12 Degree



Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



                                Taper Drill Rod- Taper 7° , Taper 11°, Taper 12°





Product Name:

Hex tapered rod

Types

Tapered drill rods, Integral drill rods, Plug hole rods

Application::

Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

We can produce as your request of carbide size, different length of drill rods.

Types of drill rods

Specifications

Length            (mm)

Shank

Weight (kg)

Tapered drill rods

Taper Angle: 4, 6, 7, 11, 12 degree

400mm to 8000mm

Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm

1.7 - 24.9

Integral drill steel

Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm

400mm to 4800mm

3 – 15.4

Plug hole rods

Chisel bit diameter: 17mm, 20mm, 22mm

150mm to 710mm

0.6 - 2.9





Application:



• Suitable for small hole range drilling
• Widely used in dimensional stone quarrying industry and underground mining industry.



Specification:



Tapered Rock Drilling Tools - 7 degree, Shank 22 x 108mm

Length Weight Part Number
mm foot kg
600 2    1.93 4148300179
800 2 5/8 2.54 4148300180
1000 3 2/7 3.15 4148300181
1200 4    3.76 4148300182
1500 5    4.68 4148300183
1600 5 1/4 4.98 4148300184
1800 6    5.59 4148300185
2000 6 5/9 6.2 4148300186
2200 7 2/9 6.81 4148300187
2300 7 5/9 7.12 4148300188
2400 7 7/8 7.42 4148300189
2500 8 1/5 7.73 4148300190
2600 8 1/2 8.03 4148300191
3000 9 5/6 9.25 4148300192
3500 11 1/2 10.78 4148300193
4000 13 1/8 12.3 4148300194
4500 14 3/4 13.83 4148300195
5000 16 2/5 15.35 4148300196
5500 18    16.88 4148300197
6000 19 2/3 18.3

4148300198





Tapered Rock Drilling Tools - 7 degree, Shank 25 x 159mm

Length Weight Part Number
mm foot kg
4000 13 1/8 16.1 4148300199
4700 15 3/7 18.9 4148300200
5000 16 2/5 22.1 4148300201
5500 18    22.1 4148300202
6000 19 2/3 24.1 4148300203



Tapered Rock Drilling Tools - 11 degree, Shank 22 x 108mm

Length Weight Part Number
mm foot kg
610 2    2.2 4148300241
1220 4    4.1 4148300242
1830 6    5.9 4148300243
2000 6 5/9 6.4 4148300244
2435 8    7.8 4148300245
2600 8 1/2 8.3 4148300246
3200 10 1/2 10.1 4148300247
3655 12    11.5 4148300248
4000 13 1/8 12.6 4148300249
4800 15 3/4 14.9 4148300250
5600 18 3/8 17.4 4148300251
6400 21    19.8 4148300252
7200 23 5/8 22.2 4148300253
8000 26 1/4 24.6 4148300254



Tapered Rock Drilling Tools - 12 degree, Shank 22 x 108mm

Length Weight Part Number
mm foot kg
610 2    2.2 4148300291
1220 4    4.1 4148300292
1830 6    5.9 4148300293
2000 6 5/9 6.4 4148300294
2435 8    7.8 4148300295
2600 8 1/2 8.3 4148300296
3200 10 1/2 10.1 4148300297
3655 12    11.5 4148300298
4000 13 1/8 12.6 4148300299
4800 15 3/4 14.9 4148300300
5600 18 3/8 17.4 4148300301
6400 21    19.8 4148300302
7200 23 5/8 22.2 4148300303
8000 26 1/4 24.6 4148300304



Tapered Rock Drilling Tools - 12 degree, Shank 25 x 159mm

Length Weight Part Number
mm foot kg
1830 6    7.96 4148300305
2435 8    10.38 4148300306
3050 10    12.84 4148300307
3655 12    15.26 4148300308
3965 13    16.5 4148300309
4270 14    17.72 4148300310
4880 16    20.16 4148300311
5530 18 1/7 22.76 4148300312
6095 20    25.02 4148300313



Order information:

Drill rod shank type + Taper degree + Length



 (1) Type: Shank 22 x 108mm, Shank 25 x 159mm

 (2) Taper degree: 7 degree, 11 degree, 12 degree

 (3) Length: 600mm,  1000mm, 1200mm, 1500mm, 1600mm, 2000mm, 3000mm, 4000mm, 5000mm etc.

      We can design and munufacture according to your specical requirements.

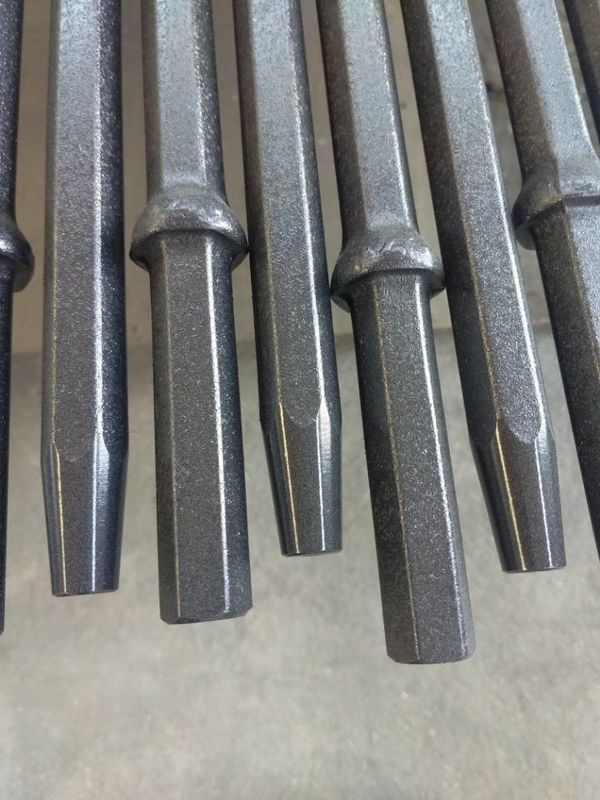

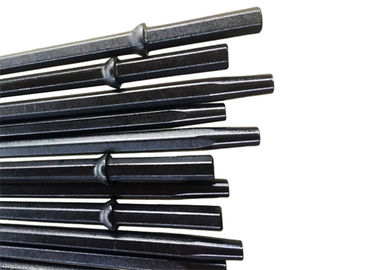

Pictures:
