R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction

R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction

    • R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction
    • R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction
    • R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction
    • R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction
  • R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction

    Product Details:

    Place of Origin: Shangdong,China
    Brand Name: MIROC
    Model Number: Pilot Adapter Reaming Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Type: Dome Bit Material: Tungsten Carbide And Alloy Steel Bar
    Color: Green,blue,golden,orange Etc Processing Type: Forging
    Thread: T38 T45 T51 Use: Tunneling, Mining,Quarrying,Construction



    Tungsten Carbide Forging T38 T45 T51 Dome Reaming Drill Bits For Mining And Construction



    Description:


    This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.



    Color: Green,Blue or Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: T38 T45 T51 Dome Bit For Reaming Spherical Buttons



    Specification:



    THREADED ROCK DRILLING TOOLS - T38 Dome Bit
    Diameter Buttons and Size (mm) Flushing hole Weight Part Number
    mm inch Front Gauge Angle front Side kg
    Spherical
    102 4    1×13 16×13 35° 2 2   4148300766
    127 5    1×13 16×13 35° 1 3   4148300767
    Ballistic
    102 4    1×13 16×13 35° 2 2   4148300768
    127 5    1×13 16×13 35° 1 3   4148300769
    THREADED ROCK DRILLING TOOLS - T45 Dome Bit
    Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
    mm inch Front Gauge Angle Front Side kg
    Spherical
    127 5    1x13 18x13 35° 3 1 6.0 4148300863
    152 6    2x14 18x14 35° 3 1 10.6 4148300864

    Ballistic
    127 5    1x13 18x13 35° 3 1 6.0 4148300865
    152 6    2x14 18x14 35° 3 1 10.6 4148300866
    THREADED ROCK DRILLING TOOLS - T51 Dome Bit
    Diameter Buttons and Size (mm) Flushing Hole Weight Part Number
    mm inch Front Gauge Angle Front Side kg
    Spherical
    152 6    2x14 18x14 35° 3 1 10.6 4148300945

    Ballistic
    152 6    2x14 14x14 35° 3 1 10.6 4148300946





    Applications


    • Underground mining
    • Bench Drilling


    Competitive Advantage



    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery

      and heat treatment

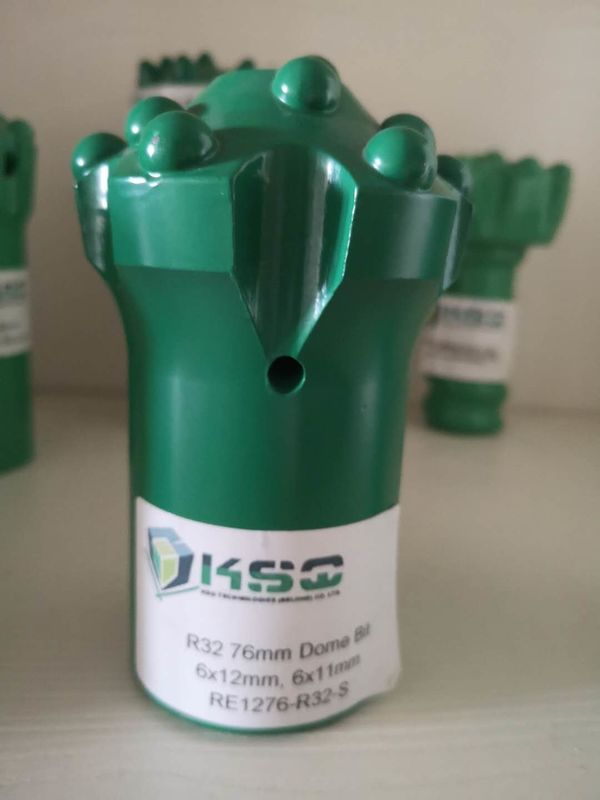

    Photos:



    R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction



    R32 76mm T38 T45 T51 Dome Carbide Drill Bits For Mining / Construction
