Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration

Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration

    • Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration
    • Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration
    • Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration
    • Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration
  • Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration

    Product Details:

    Place of Origin: China
    Brand Name: MIROC T45 Button Bit
    Certification: SGS
    Model Number: Thread Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces T45 76mm Button Bit
    Price: Negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10- 15 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Name: Button Bit Thread: T45
    Type: Drop Center Ballistic Button Bit Application: Mining, Rock Driling, Quarry, Tunneling

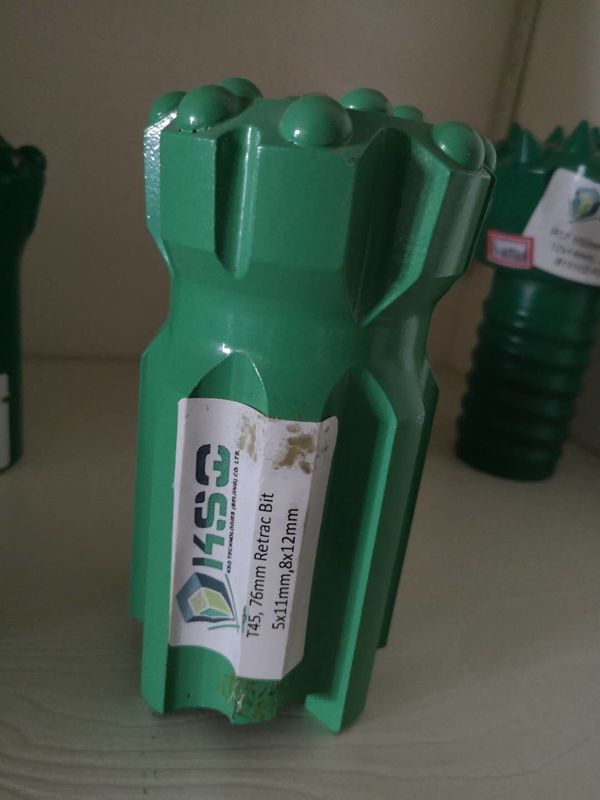

    T45 76mm Drop Center Ballistic Button Bit With Fast Penetration For Soft Rock Drilling



    Drill bits T45-76mm drop center



    Buttons:  5x11mm, 8X12mm



    4 front flushing holes



    Retract body



    Ballistic buttons For soft rock





    T45 Drop Center Retract Ballistic Button Bit Specification:





    Soft Rock Drilling T45 76mm Threaded Button Bit Ballistic Retractable Drill Bit With Fast Penetration





    T38 Drop Center Retrac Button Bit



    Bit Diameter Gauge Button Front Button Number of Side flushing hole Number of Front Flushing Hole Weight(kg)
    64 8x9mm 5x9mm 0 4 1.9
    70 8x10mm 5x10mm 0 4 2.4
    76 8x11mm 5x10mm 0 4 3.3
    89 8x12mm 6x12mm 0 4 5.3


    Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).



    Featuring spherical tungsten carbide inserts that are known to have strong configuration against carbide fracture.



    Basic Information

    Product Name Thread Rock Drill Bit
    Thread R25,R28,R32,R38,T38,T45,T51,ST58, ST68
    Diameter 32mm-152mm (or 1 1/4 inch to 6 inches)
    Drill Bit Type Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit
    Carbide Insert Spherical and ballistic
    Body Design Normal body and retrac body
    Face Design Flat face and drop center face
    Material High strength alloy steel bar and tungsten carbide
    Color Green, Gold, Black or based on customer requirements.


    Applications

    Used in benching and long hole drilling.

    Processing

    CNC milling and proprietary heat treatment process


    Competitive Advantage
    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



    High -grade tungsten carbide inserts
