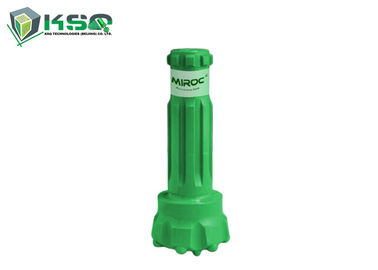

Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
    • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material
  • Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

    Product Details:

    Place of Origin: China
    Brand Name: MIROC (KSQ)
    Certification: ISO
    Model Number: 5" High Air Pressure DTH Drilling Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton / Wooden Box or Based on the Customer's request
    Delivery Time: 10 - 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20000 PCS Per Month
    Contact Now
    Detailed Product Description
    Type Of Bits: DTH Bits Size: 5" High Air Pressure
    Type Of Hammers: DHD350R / Cop54 / DHD5 / QL50 / Cop54GE Diameter, Mm: 133 - 165
    Number Of Air Holes: 2 Min. Weight, Kg: 15.5
    Colors: Black, Blue, Green, Yellow Or Based On Request Application: Mining Operations, Bench Drilling And Long Hole Drilling, Drifting And Tunneling, Quarrying, Construction
    Material: Tungsten Carbide

    5" High Air Pressure DTH Drilling Bit







    Specifications:

    1.

    Drill Bit Bit Diameter, mm Number of Air Holes Gauge Buttons Front Buttons Weight, kg

    DHD350R

    Cop54

    DHD5

    133 2 7x16 6x14 16
    140 2 8x16 7x14 16.5
    146 2 8x16 8x14 17
    152 2 8x16 7x16 17.5
    165 2 8x16 8x16 18.5





    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material



    2.

    Drill Bit Bit Diameter, mm Number of Air Holes Gauge Buttons Front Buttons Weight, kg

    Cop54GE

    QL50

    133 2 7x16 6x14 15.5
    140 2 8x16 7x14 16
    146 2 8x16 8x14 16.5
    152 2 8x16 7x16 17
    165 2 8x16 8x16 18





    Description:

    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material



    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material



    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material



    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material



    Features:
    1. High-grade tungsten carbide inserts
    2. Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
    3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.



    Keywords
    DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
    Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit



    Application
    1. Mine and quarry
    2. Road construction for the drilling and blasting work
    3. Water well drilling
    4. Slope protection

    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

    DTH Bits Face Design:

    Flat, Convex, Concave:



    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

    Ballistic Concave Face

    Characteristics:

    1. Straight Hole Application
    2. Fast penetration
    3. Suited for soft to medium rock
    4. Non-abrasive conditions
    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

    Spherical Concave Face

    Characteristics:

    1. Straight Hole Application
    2. Good Wear Resistance
    3. Suited for medium to hard rock
    4. Abrasive drilling conditions
    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

    Ballistic Convex Face

    Characteristics:

    1. Fast penetration
    2. Suited for soft rock
    3. Non-abrasive drilling conditions
    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material

    Spherical Flat Face

    Characteristics:

    1. Good Wear Resistance
    2. Suited for hard rock
    3. Abrasive drilling conditions



    Our Service:

    Compared with the oversea brands, our advantages are bellowing:
    1. Our products can match over 95% against the original products
    2. Price are competitive against the famous brands and best quality against the small factory
    3. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
    4. We have advanced technology and equipment.
    5. Our technician has more than 20 year’s professional working experience.
    6. Rock drilling tools are exported throughout the world. Main market: Norway, USA, Canada, Brazil, Uganda, Iran, Philippines, Thailand, India, etc.

    Now we are looking forward to make the market bigger and stronger with your join!



    We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material



    Package: Wooden Box; also we can follow customers' requirements.
    Delivery time is around 15-25 days.



    Mining Operations DTH Drill Bits 133 - 165mm Diameter Tungsten Carbide Material



    MIROC® Production:
    Integral Rods

    Plug Hole Rods
    Tapered Drilling Tools
    Extension Drilling Tools
    Drifting and Tunneling Tools
    Reaming Tools
    Shank Rods
    Coupling Sleeves
    Shank Adapters (Striking Bars)
    Down-the-hole (DTH) Bits
    Down-the-hole (DTH) Hammers





    Company Information:

    DTH Drill Bit 127mm DHD340 Bit Shank With Spherical and Ballistic Carbide Have Foot Valve


    The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
    MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.



    We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.



    Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
