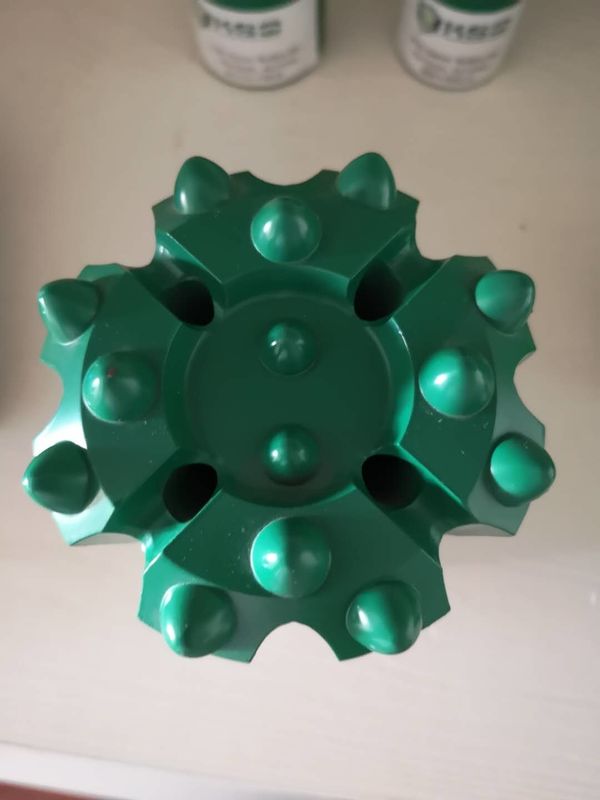

T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm

T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm

    • T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm
    • T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm
    • T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm
    • T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm
  • T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Retract Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces Retract Button Bit
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Name: Retrac Button Bit Thread: T38, T45, T51
    Diameter: 64mm, 76mm, 89mm, 102mm Skirt Type: Normal Retract Skirt, Heavy Duty Retract Skirt
    Carbide Grade: YK05 Color: Gold, Green
    Button Number: 8x12mm,4x12mm,2x10mm

    T51 Retrac Drop Center Ballistic button drill bit 64mm 76mm 89mm 102mm



    Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

    Basic Information


    Product Name Thread Rock Drill Bit
    Thread R25,R28,R32,R38,T38,T45,T51,ST58, ST68
    Diameter 32mm-152mm (or 1 1/4 inch to 6 inch)
    Drill Bit Type Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit
    Carbide Insert Spherical and ballistic
    Body Design Normal body and retrac body
    Face Design Flat face and drop center face
    Material High strength alloy steel bar and tungsten carbide
    Color Green, Gold, Black or based on customer requirements.



    Applications

    R25, R28, R32, R38
    Used in drifting and tunneling.

    T38, T45, T51, ST58, ST68
    Used in benching and long hole drilling.

    Processing

    CNC milling and proprietary heat treatment process


    Competitive Advantage
    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

    High grade tungsten carbide inserts


    We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retrac etc.).


    Keywords
    Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
    Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools

    Pictures
    T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mmT51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm
     T51 Drop Center Ballistic Retractable Drill Bit 64mm 76mm 89mm 102mm
