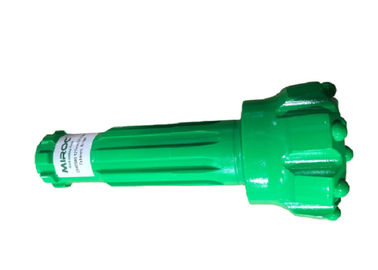

Lightweight High Precision Dth Hammer Bits DHD340 of Green Color

Lightweight High Precision Dth Hammer Bits DHD340 of Green Color

    • Lightweight High Precision Dth Hammer Bits DHD340 of Green Color
    • Lightweight High Precision Dth Hammer Bits DHD340 of Green Color
  • Lightweight High Precision Dth Hammer Bits DHD340 of Green Color

    Product Details:

    Place of Origin: China
    Brand Name: MIROC Button Bit
    Model Number: DTH Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece DTH Button Bit
    Price: Negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: L/C, T/T
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: DTH Button Bit Hammer Type: DHD340
    Diameter: 64mm 70mm 76mm Color: Green

    BR Series DTH Button Bit 64mm 70mm 76mm 95mm for BR1 BR2 BR3 DTH Hammer



    KSQ is one the professional manufacturer and supplier of high performance rock drilling tools like DTH Hammers and Bits. PC Hammers and Bits, DTH drilling pipes and Top Hammer Drilling Tools.
    Our tools are widelyused in different drilling applications including mining,quarrying, water well drilling, geotechnical industries and etc.
    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

    HAMMER INCH BIT DIA(MM) BIT DIA(INCH) SHANK
    1 64MM-76MM 2 1/2"-3" BR1
    2 76MM-90MM 3"-3 1/2" BR2/PAD320
    3 85MM-105MM 3 2/5"-4" BR3/DHD330/COP32/PAD330
    3.5 85MM-110MM 3 2/5"-4 1/3" DHD3.5/IR3.5/COP34/QL30/PAD3.5
    4 105MM-140MM 4"-5 1/2" DHD340/COP44/QL40/SD4/MISSION40/PAD340
    5 127MM-200MM 5"-8" DHD350/COP54/QL50/SD5/MISSION50/PAD350
    6 152MM-254MM 6"-10" DHD360/COP64/QL60/SD6/MISSION60/PAD360
    8 195MM-350MM 7.2/3"-13 4/5" DHD380/COP84/QL80/SD8/MISSION80/PAD380
    10 254MM-380MM 10"-15" SD10/NUMA100/DHD1100/PAD1100
    12 305MM-457MM 12"-18" SD12/NUMA120/DHD1120/PAD1120

    Bit Face Shape Selection:



    Center Drop Bit:



    For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.

    Maximum hole deviation control.



    Concave Face



    The all-around application bit face specifically for medium hard and homogenerous rock formations.

    Good hole deviation control and good flushing capacity.



    Convex Face



    For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.



    Double Gauge Face

    This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.



    Flat Face Bit

    This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.





    Competitive Advantage



    • High-grade tungsten carbide inserts
    • Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment



    We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



    Applications



    • Underground mining

    • Down the hole rock drilling



    KSQ Related DTH Button Bits

    Product DTH Button Bits
    Low Air Pressure CIR80, CIR90
    3’’ DHD3.5, M30,
    4’’ DHD340, SD4,QL40, M40
    5’’ DHD350, SD5,QL50, M50
    6’’ DHD360, SD6,QL60, M60
    8’’ DHD380, SD8,QL80, M80
    Color Green, Gold, Black or based on customer requirements.
    MOQ: No MOQ required for testing and trial order



    Keywords

    DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,

    Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit

    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



    Rock Drilling Tools Brand MIROC®

    Lightweight High Precision Dth Hammer Bits DHD340 of Green Color

    The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.



    MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.



    MIROC® Rock Drilling Tools include:

    • Integral Rods
    • Plug Hole Rods
    • Tapered Drilling Tools
    • Extension Drilling Tools
    • Drifting and Tunneling Tools
    • Reaming Tools
    • Shank Rods
    • Shank Adapters (Striking Bars)
    • Down-the-hole (DTH) Bits
    • Down-the-hole (DTH) Hammer
    • PDC Bit
    • Tricone Bits



    Company Information

    Lightweight High Precision Dth Hammer Bits DHD340 of Green Color
    KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
