DTH Rock Drilling Tungsten Carbide Drill button Bits 3'' - 8'' High Pressure For Atlas Copco

DTH Rock Drilling Tungsten Carbide Drill button Bits 3'' - 8'' High Pressure For Atlas Copco

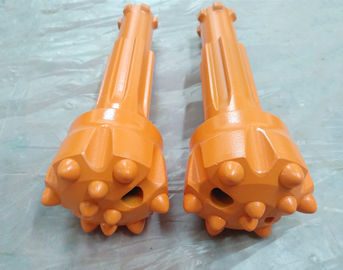

    • DTH Rock Drilling Tungsten Carbide Drill button Bits 3'' - 8'' High Pressure For Atlas Copco

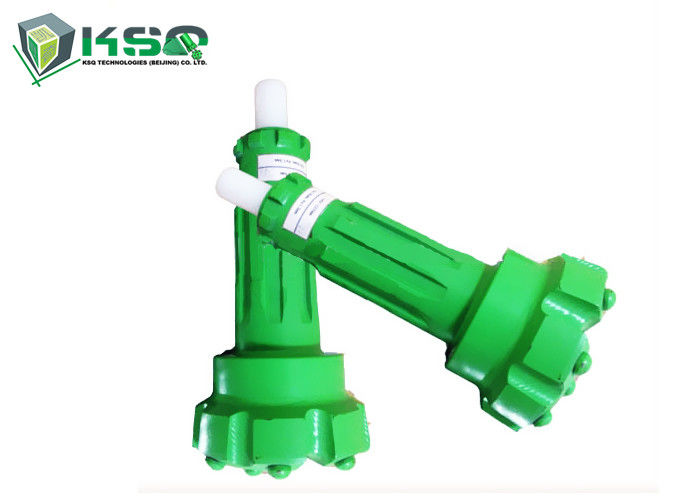

    • DTH Rock Drilling Tungsten Carbide Drill button Bits 3'' - 8'' High Pressure For Atlas Copco

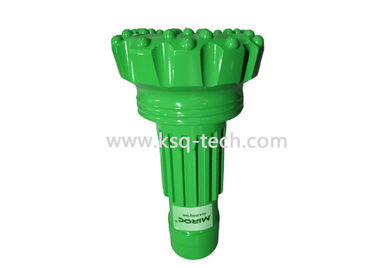

  • DTH Rock Drilling Tungsten Carbide Drill button Bits 3'' - 8'' High Pressure For Atlas Copco

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: DTH Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Button Type: Ballistic Sphericalsemi-spherical Conical Spline: 8
    Color: Red Black Customized Dimmeter: 3‘’-8‘’

    Tungsten Carbide 8'' High Pressure DTH Drill Bits for DHD380 Shank




    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

    Basic Information



    Product

    DTH Button Bits

    Low Air Pressure CIR80, CIR90

    3’’

    DHD3.5, M30,

    4’’

    DHD340, SD4,QL40, M40

    5’’

    DHD350, SD5,QL50, M50

    6’’

    DHD360, SD6,QL60, M60

    8’’

    DHD380, SD8,QL80, M80

    Color

    Green, Gold, Black or based on customer requirements.

    MOQ:

    No MOQ required for testing and trial order


    Applications

    • Underground mining
    • Down the hole rock drilling


    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


    8'' High Air Pressure DTH Bit for DHD380 Shank Specification



    Diameter Buttons and Size (mm) Flushing hole Weight Part Number
    mm inch Front Gauge kg
    DHD380 Spherical button/Concave face
    200 7 7/8 6×18,6×18 9×18 2 49.2 4148301468
    203 8 6×18,6×18 9×18 2 49.7 4148301469
    216 8 1/2 6×18,8×18 9×18 2 52 4148301470
    219 8 5/8 6×18,9×18 9×18 2 52.7 4148301471
    222 8 3/4 3×18,5×18 12×18,6×18 2 53.7 4148301472
    226 8 7/8 3×18,5×18 12×18,6×18 2 54.1 4148301473
    229 9 3×18,5×18 12×18,6×18 3 56 4148301474
    241 9 1/2 3×18,6×18 12×18,6×18 3 60.1 4148301475
    251 9 7/8 3×18,7×18 12×18,6×18 3 62.8 4148301476
    254 10 3×18,7×18 12×18,6×18 3 63.3 4148301477
    270 10 5/8 3×18,8×18 12×18,6×18 3 71.1 4148301478
    305 12 6×18,8×18 12×18,9×18 3 84.3 4148301479
    DHD380 Ballistic button/Convex face
    203 8    6×18,7×18 9×18 3 49.7 4148301480
    216 8 1/2 6×18,8×18 9×18 3 52 4148301481
    222 8 3/4 6×18,8×18 12×18 3 53.7 4148301482
    DHD380 Spherical button/Flat face
    203 8    9×18 9×18 3 49.7 4148301483
    216 8 1/2 12×18 9×18 3 52 4148301484
    222 8 3/4 13×18 12×18 3 53.7 4148301485
    229 9 14×18 12×18 3 56 4148301486


    We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.


    Keywords

    DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
    Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit

    Photos

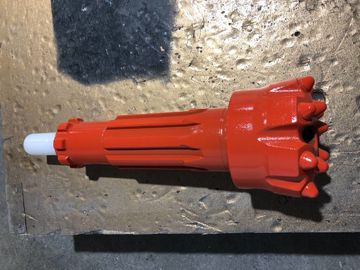

    DTH Rock Drilling Tungsten Carbide Drill button Bits 3'' - 8'' High Pressure For Atlas Copco
