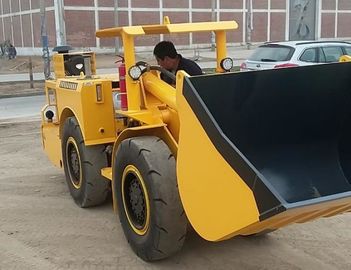

Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color

Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color

    • Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color
    • Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color
    • Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color
  • Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color

    Product Details:

    Place of Origin: AnHui,China
    Brand Name: MIROC
    Certification: CE
    Model Number: Underground Mine Equipments

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Nude Packed or Based on Customers
    Delivery Time: 30-60 Days after receiving payment and order confirmation
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 40 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Type: Underground Mine Equipments Color: Yellow
    Volume Capacity: 1m3 Tramming Capacity: 2000KG
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Pressure: 0.6~0.7MPa


    1CBM load haul dump machines with hydrostatic pump and motor /

    underground mining machinery


     ROXMECH-1A Internal Combustion Scraper, powered by diesel engine, is a kind of front loading and unloading scraper with rubber wheels, hinged, front bucket. The machine utilizes static hydraulic-mechanical transmission, four-wheel drive, central articulation of front and rear frames, full hydraulic steering and other advanced technologies. It can be loaded, transported and unloaded independently by single person, suitable for method of mining and slag for roadway excavation such as stage caving method, empty field method, room-column method, ore-retaining method, stratified filling method, etc. The required running clearance can not be less than 2.4x2.4m. The machine has characteristics of compact structure, convenient operation, flexible maneuvering, low operating cost and high efficiency. Using low-pollution engine from Duetz, along with external secondary purification device, it generates low exhaust. It is a kind of high energy efficient equipment for small and medium-sized underground mine or underground engineering.



    Main technical performance and parameters

    1. Bucket volume 1m3
    2. Rated load 2000kg
    3. Max. traction: 60kN
    4. Maximum scooping force 60kN
    5. Driving speed: 0~9.5 km/h (bidirectional)
    6. Minimum ground clearance: 195mm
    7. Rear axle swing angle: ±6.5°
    8. Maximum steering angle: ±38°
    9. Minimum turning radius: 4120mm(outer flank)
    10.Maximum unloading height: 1000mm
    1l. Wheelbase: 1880mm
    12. Departure angle: 15°
    13. Shovel depth: 670mm
    14. Total Weight: 6780kg
    15. Maximum climbing ability: ≤25%
    16. Dimensions: Length 5564mm(Transportation)
    Width 1405mm
    Height 1920mm
    17. Specifications of Tires 10.00—20
    Pressure 0.6~0.7MPa
    18. Rated power of internal combustion engine 66kW
    Rated rotating speed 2300 r/min
    19. Transmission type Hydrostatic mechanical transmission
    Hydraulic pump Fully reversible piston pump
    Hydraulic motor Variable displacement piston motor
    Type of the transfer case: Fixed shaft helical gear transmission
    Deceleration ratio 2.643
    Deceleration ratio of the drive axle 25.868
    20. braking system Clamp type
    Working brake: hydraulic release
    Parking brake spring brake
    21.Steering device and hydraulic system Central articulated full hydraulic steering
    Steering Pump shared pump with working oil pump
    volume 16 ml/r
    rated pressure of the system 12.5MPa
    22.Working device and hydraulic system
    Working oil pump displacement 50 ml/r
    Rated pressure of the s system 16MPa
    23. volume of the driving oil tank 120L
    24. volume of the working oil tank 120L
    25. Volume of the fuel tank: 60L

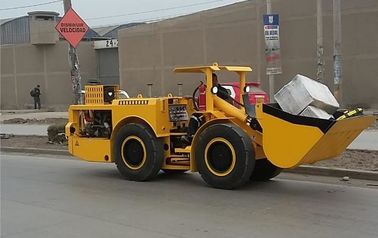

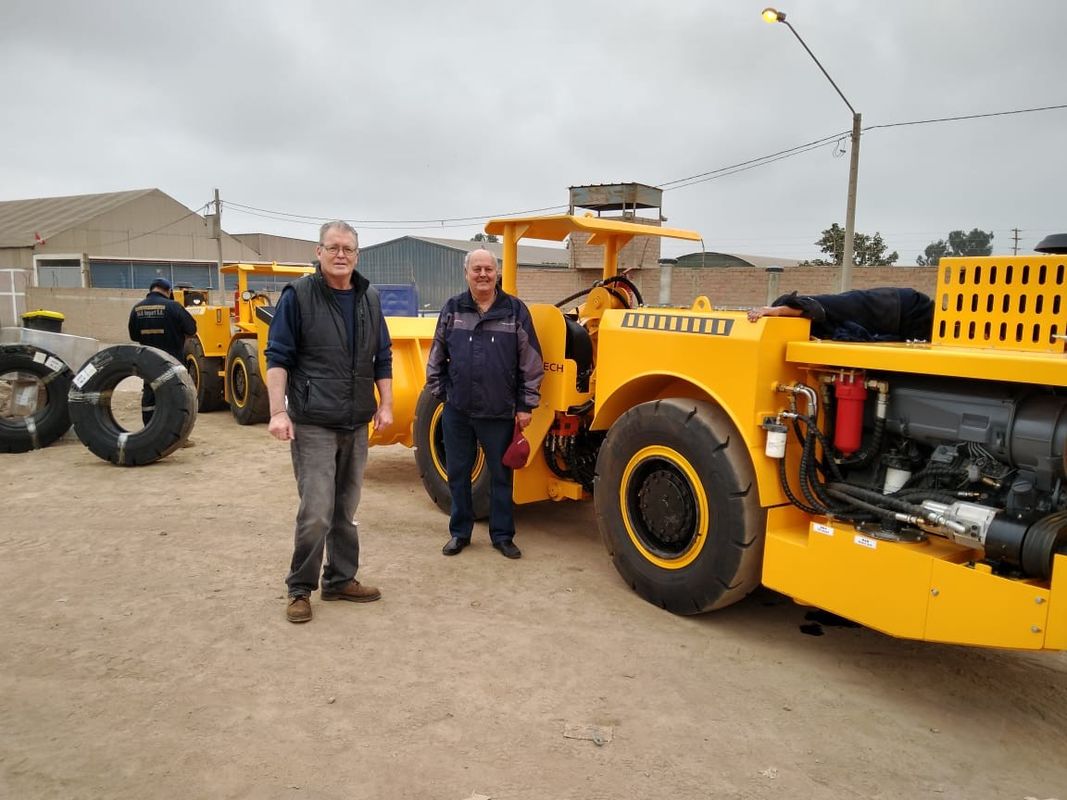

    Our products are in Peru

    Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow ColorHydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow ColorHydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color

    Hydrostatic Pump 1CBM Load Haul Dump Machine 1m3 Volume Capacity Yellow Color



    Applications of Load Haul Dump
    Underground Mining
    Hydropower Tunneling
    Roadway/Railway Tunneling


    Our Services


    ROXMECH® Rock Excavation and Service/Support Equipment include:
    RL-1 Load-Haul-Dump Machine
    RL-2 Load-Haul-Dump Machine
    RL-3 Load-Haul Dump Machine
    RL-4 Load-Haul Dump Machine
    RT-12 Low Profile Dump Truck
    RT-15 Low Profile Dump Truck
    RT-20 Low Profile Dump Truck
    MT30D Low Profile Dump Truck
    RS-3 Service Vehicle Series

    MG-64A-SB Shotcrete Batcher
    MT30M Low Profile Transmixer



    Company Information


    ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
    equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
    Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
    Service Vehicles, and Personnel Carriers.
    ROXMECH® was developed through years of exchanges and hands-on work with mining
    operations in China and some parts of the world where mining is the lifeblood of the econ-
    omy. In every product we build, our reputation and experience can be seen. That’s the rea-
    son to choose us if you are looking to improve your productivity and reduce costs.
