Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling

Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling

    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
    • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling
  • Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC (KSQ)
    Certification: ISO
    Model Number: Shank Adapter

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton / Wooden Box or Customized
    Delivery Time: 10 - 20 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20000 PCS Per Month
    Contact Now
    Detailed Product Description
    Machine Type: Drilling Tools Name Of Product: Shank Adapter
    Thread: R32 R35 R38 T38 T45 Application: Bolting And Drifting; Bench Drilling, Production Drilling
    Material: Carbon Steel Colors: Black Or Customized
    Rock Drill (Atlas Copco): COP 1032 / 1036 / 1038HB / 1038HD / 1238 Min. Weight, Kg: 4.3
    Packing: Wooden Box

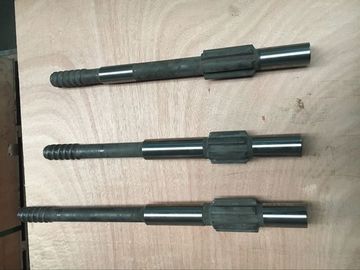

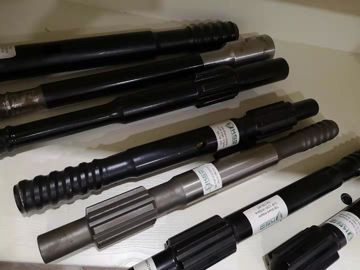

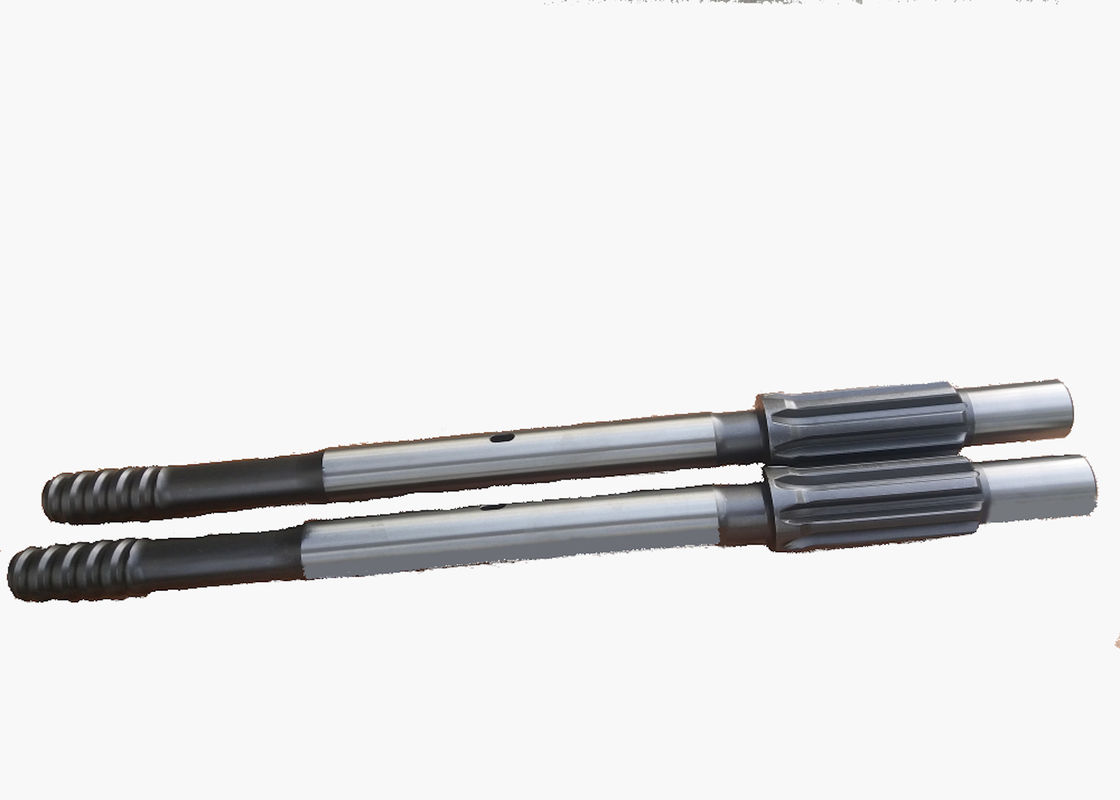

    Drill Shank Adapter



    Description:



    While every component in the drill string is crucial, the shank adapter must be engineered to withstand the most extreme stress. Its function is to transmit impact energy from the rock-drill piston, as well as rotation torque, into the drill string without energy losses. It must withstand and transmit up to 6300 blows per minute from the piston continually, with great endurance and dependability. With this in mind, we manufacture premium quality shank adapters for most brands of the drill machine.



    In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.



    Manufactured from high-quality Alloy Steel and Heat Treated to give high values and fatigue strength.

    The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.



    Male shank adapters/striking bar are generally better suited for drifting, tunneling & extension applications where high bending stresses are present.



    Female shank adapters/striking bar are used when the drilling space is limited and the total feed length is important (i.e., underground roof bolting).



    Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling



    Application:



    • Bolting, drifting

    • Bench drilling
    • Production drilling



    Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling



    KSQ shank adapter equivalent to:



    Atlas Copco, Boart, Furukawa, Gardner-Denver, Ingersoll-Rand, Montabert, SIG, Sandvik Shank Adapter

    Specifications:



    Atlas Copco Rock Drill Thread Length, mm Weight, kg Flushing, mm
    Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling

    Atlas Copco

    COP1032

    R32

    R35

    R38

    T38

    550

    550

    550

    550

    5.3

    5.6

    5.7

    5.7

    -

    -

    -

    -

    Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling

    Atlas Copco

    COP1036

    COP1038HB

    R32

    T38





    T45

    500

    500





    500

    4.3

    4.7





    5.3

    -

    -





    -

    Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling

    Atlas Copco

    COP1038HD

    COP1238

    R32

    R38

    T38

    485

    485

    485

    4.3

    4.5

    4.5

    -

    -

    -



    Competitive Advantage

    • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
    • The accurate dimension of thread perfectly matches the rock drill
    • Work reliably and very cost-effective

    Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.



    FAQ:

    Q: What methods of payment are accepted?
    A: We work with T/T, L/C, AliBaba, Paypal, West Union, Money Gram.
    Q: Can we select the color of the products?
    A: Yes, sure. Either you can choose the color among our standards or we can make it exactly according to your requirements.
    Q: Can we use our company's logo on your products?
    A: Yes, we can be OEM Company for you.
    Q: What's your delivery time?
    A: It depends on the quantity of your order, but normally the manufacture time is around 10-20 days. And the delivery time depends on the way of shipment (by air/by sea). We always advice you the best way of delivery use the individual approach according to your requirements.
    Q: What about the shipment?
    A: It's based on the product type and the order quantity. We use carton or wooden box (also we can follow your reqirements) ans we can send it to you by Air or by Sea, either send the products to your Chinese agent.
    Q: How to control the quality?
    A: We always carefully check all the details before shipment, we are always online with you if any questions. Your satisfaction with our products is one of our main aims. We can send all the prooves if any questions.
    Q: Do you offer sample order?
    A: Yes, we welcome you to order some samples for testing our quality. For cheching the quality it's need only 1-2 samples to understand our really high quality and be sure in our production.
    Q: Do you have after-sale service and warranty period?
    A: Yes, of course. We offer our clients after-sale maintenance, technical support and warranty. If any questions or problems, please contact us asap and we will reply you within 24 hours.
    Q: Do you have any social network to follow your updates?
    A: We have:
    Instagram: ksq_tech;
    Twitter: @KsqCo - KSQ Technologies (Beijing) Co. Ltd.
    Facebook: KSQ Technologies
    YouTube: in the search box type KSQ Technologies and you will find some videos of our work.



    P.S. Our company has been certificated by Chinese government, and verified by Alibaba Trade Assurance, 100% refund of the Trade Assurance Amount. Alibaba can guarantee all of your payment, you don't need to worry about it, everything is controlled by world corporations. We are fair with our customers and do our best to be reliable company for you!



    Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock DrillingMining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling



    Package: Wooden Box; also we can follow customers' requirements.
    Delivery time is around 10-20 days.



    Mining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock DrillingMining Drill Shank Adapter Drilling Rig Tools R32 R35 R38 T38 T45 Rock Drilling



    MIROC® Production:
    Integral Rods

    Plug Hole Rods
    Tapered Drilling Tools
    Extension Drilling Tools
    Drifting and Tunneling Tools
    Reaming Tools
    Shank Rods
    Coupling Sleeves
    Shank Adapters (Striking Bars)
    Down-the-hole (DTH) Bits
    Down-the-hole (DTH) Hammers



    Company Information:

    DTH Drill Bit 127mm DHD340 Bit Shank With Spherical and Ballistic Carbide Have Foot Valve


    The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
    MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.



    We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.



    Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
