Place of Origin: | China |
Brand Name: | MIROC |
Certification: | ISO |
Model Number: | Shank Adapter |
Minimum Order Quantity: | 5 Pieces Shank Adappter |
---|---|
Price: | negotiation |
Packaging Details: | Carton Box or Wooden Box |
Delivery Time: | 20 days Production |
Supply Ability: | 20000 pieces per month |
Color: | Black | Brand: | Miroc-Furukawa |
---|---|---|---|
Length: | 380mm | Thread: | T38 |
High Light: | drill bit shank adapter,threaded shank drill bit adapter |

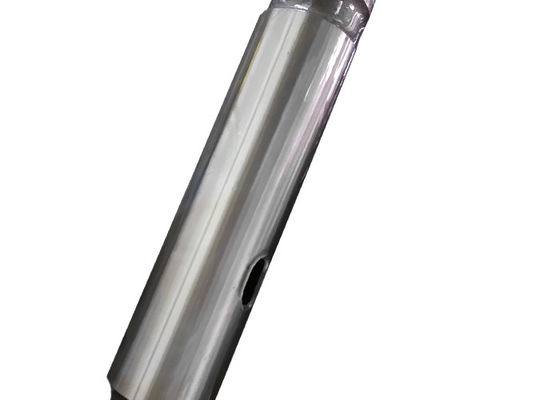

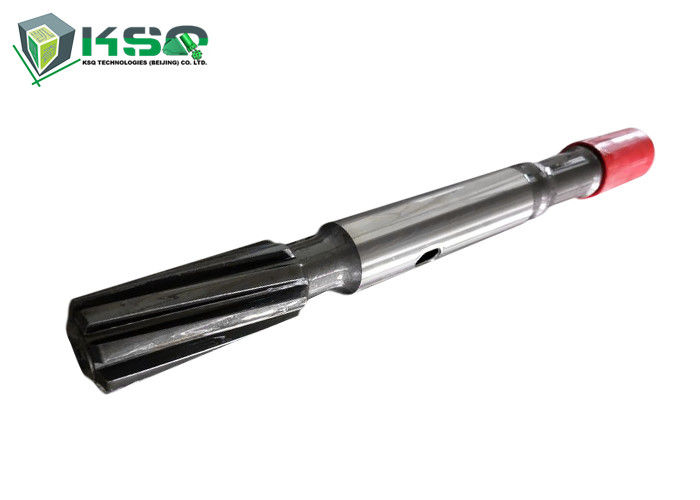

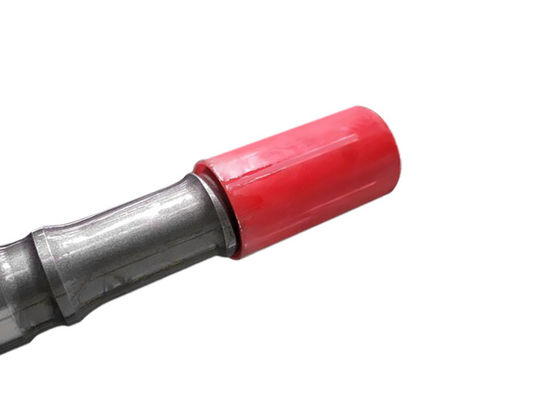

PD200 T38 L380mm T45 T51 Bench Drilling Tool Drill Bit Shank Adapter
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Basic Information - KSQ shank adapter equivalent to:
Atlas Copco, Boart, Furukawa, Gardner-Denver, Ingersoll-Rand, Montabert, SIG, Shank Adapter
FURUKAWA
SHANK ADAPTER | Flushing hole(mm) | thread | Length(mm) | Part No. |
Furukawa M120 and PD200 | 14 | R32 | 330 | FUR-R32-330-M120 |
14 | T38 | 330 | FUR-T38-330-M120 | |
14 | T38 | 446 | FUR-T38-446-M120 |
Specification:
Shank Adapter | Thread | Diameter | Length | Flushing | Weight | Part Number |
mm | mm | kg | ||||
/Tamrock HL 700, HL 800 | T45 | 45 | 600 | - | 7.2 | 414832648 |
T38 | 52 | 600 | - | 8.0 | 414832649 | |
T45 | 52 | 600 | - | 8.5 | 414832650 | |
T51 | 50 | 600 | - | 8.5 | 414832651 |
Keywords
shank adapter | adaptador de la espiga | adaptador de cabo | Adaptateur à tige | Schaft -Adapter | sap adaptörü | per gambo | sovituskantaan | nackadapter | nakkeadapteren | adapter cholewka |
We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
Pictures
Competitive Advantage
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
