|Place of Origin:||China|
|Brand Name:||MIROC / KSQ|
|Model Number:||IADC Tricone Drill Bit|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Carton or Wooden Box|
|Delivery Time:||10 - 25 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10000 PCS Per Month|
|Machine Type:||Drilling Tools||Type:||IADC Drill Bit|
|Configuration:||Roller - Ball - Roller||Circulation Type:||Jet Nozzle|
|Material:||Tungsten Carbide And High Strength Alloy Steel||Processing Type:||Forging|
|Color:||Customized Or Blue, Gold, Red||Formations:||Soft, Medium Hard And Hard|
|Size (inches):||17.5 / 12.25 And Others||Application:||Well Drilling, Coal Mining, Stones, Rock Drilling, Water And Oil Well|
|Approx. Weight:||100 Kg|

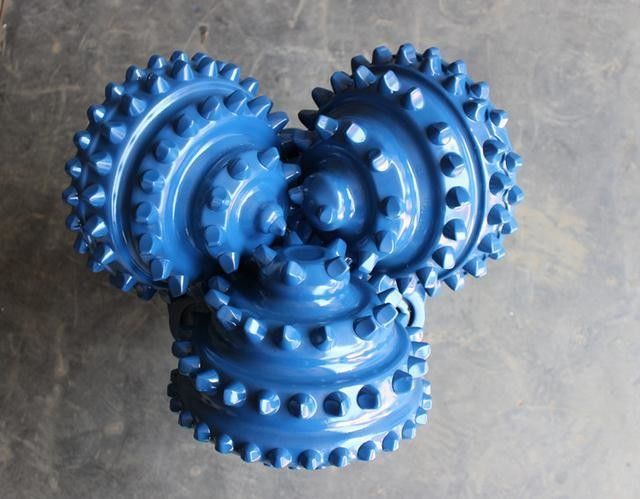

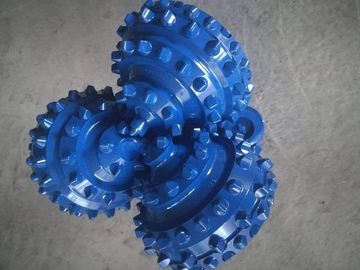

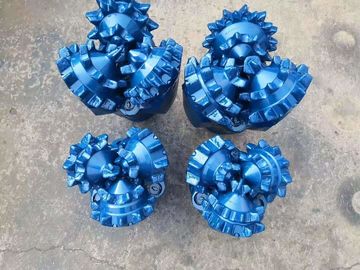

IADC TRICONE ROCK DRILL BIT
Judge Alloy Teeth with High Strength
417 427 437 517 527 537 617 627 637
737 837 832 415 425 435 445 525 625
635 416 427 436 446 447 516 526 536
535 537 547
Button bit,saw steel
1) Y-Conical teeth
2) X- chisel teeth
3) K- wide teeth
4) G- Gauge protection
|Formation or layer||
Soft, medium soft, hard, medium hard,
very hard formation
Sealed bearing and non-sealed bearing
HJ(metal sealed journal bearing)
HA(rubber sealed journal bearing)
aircooled bearing type
|Formation||Rock Type||Formation Grade|
|Ultra soft formations with low compressive strength and sticky layers||Humous Gumbo Clay Marl||1~2|
|Soft formations with low compressive strength and high drill ability||Marl Salt Anhydrite Shale||2~3|
|Soft to medium formations with low compressive strength||Sand ShaleChalk||2~4|
|Soft-medium to hard formations with high compressive strength and low abrasiveness||Shale Mudstone Limestone Sandstone||3~5|
|Hard and dense formations with high compressive strength but not abrasive||ShaleLimestone Anhydrite||4~6|
|Hard dense and abrasive formations with ultra high compressive strength||Siltstone Sandstone Mudstone||6~8|
|Ultra hard and abrasive formations||Quartzite Volcanic||8|
1. C-Center jet can avoid bit balling, eliminate fluid area at bottom hole, expedite upward flow of cuttings and improve ROP.
2. Bearing with high saturated nitrile rubber reduces sealing pressure and improves sealing reliability.
3. Full rubber oil storage capsule provides good lubrication for bearing system.
4. G-Gauge protection improves the gauge ability and prolong the service life of the bit.
5. A row of teeth is added between the back taper and the outer row to dress the wellbore and protect the body of the cone.
TRICONE ROCK DRILL BIT ELEMENTS
1. There is a Tricone suitable for any rock formation
2. Tricone bit is versatile and can handle changing formations
3. TriCones are reasonably priced, long lasting and have an efficient drilling rate
4. The roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.
Q: What methods of payment are accepted?
A: We work with T/T, L/C, AliBaba, Paypal, West Union, Money Gram.
Q: Can we select the color of the products?
A: Yes, sure. Either you can choose the color among our standards or we can make it exactly according to your requirements.
Q: Can we use our company's logo on your products?
A: Yes, we can be OEM Company for you.
Q: What's your delivery time?
A: It depends on the quantity of your order, but normally the manufacture time is around 10-20 days. And the delivery time depends on the way of shipment (by air/by sea). We always advice you the best way of delivery use the individual approach according to your requirements.
Q: What about the shipment?
A: It's based on the product type and the order quantity. We use carton or wooden box (also we can follow your reqirements) ans we can send it to you by Air or by Sea, either send the products to your Chinese agent.
Q: How to control the quality?
A: We always carefully check all the details before shipment, we are always online with you if any questions. Your satisfaction with our products is one of our main aims. We can send all the prooves if any questions.
Q: Do you offer sample order?
A: Yes, we welcome you to order some samples for testing our quality. For cheching the quality it's need only 1-2 samples to understand our really high quality and be sure in our production.
Q: Do you have after-sale service and warranty period?
A: Yes, of course. We offer our clients after-sale maintenance, technical support and warranty. If any questions or problems, please contact us asap and we will reply you within 24 hours.
Q: Do you have any social network to follow your updates?
A: We have:
Twitter: @KsqCo - KSQ Technologies (Beijing) Co. Ltd.
Facebook: KSQ Technologies
YouTube: in the search box type KSQ Technologies and you will find some videos of our work.
P.S. Our company has been certificated by Chinese government, and verified by Alibaba Trade Assurance, 100% refund of the Trade Assurance Amount. Alibaba can guarantee all of your payment, you don't need to worry about it, everything is controlled by world corporations. We are fair with our customers and do our best to be reliable company for you!
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.
Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
