12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling

12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling

    • 12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling
    • 12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling
  • 12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC Top Hammer Rock Drilling Tools
    Model Number: Thread Drill Rod

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces Speed Rod Extension Rod
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20000 pieces per month Thread MF- Rod
    Contact Now
    Detailed Product Description
    Name: Thread Drill Rod Type: Extension Rod, MF-Rod, Hex Rod, Drifter Rod
    Thread: R25 R28 R32 R38 T38 T45 T51 Diameter: 25mm, 32mm, 35mm, 39mm, 46mm, 52mm
    Length: 400mm - 5530mm Use: Long Hole Drilling And Bench Production Mining

    T45 T51 10 Feet / 12 Feet Speed Rod/ MF-Rod / Extension Rod





    Drill rod using T45 T51 thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling. Used in benching and long hole drilling.



    Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system



    Basic Information



    Product Name Thread Drill Rod
    Thread R25 R28 R32 R38 T38 T45 T51
    Diameter 22mm, 25mm, 32mm, 35mm, 39mm, 46mm, 52mm
    Length 400mm - 5530mm
    Drill Rod Type Drifter Rod, Extension Rod, MF-Rod, Speed Rod, Hex Rod,
    Material

    High strength alloy steel bar

    Color Black or based on customer requirements.



    Application



    • Underground mining
    • Tunneling, quarrying

    • Granite, Basalt, Limestone rock, etc.



    Competitive Advantage



    • High-grade raw material
    • Manufactured from high-grade steel and processed using state-of-the-art CNC machinery

       and heat  treatment

    • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



    Specification



     T45 Extension Rod  (T45-Round 46-T45)

      Length (mm) Dia.(mm) Part Number
    1 1830 46 4148300867
    2 2435 46 4148300868
    3 3050 46 4148300869
    4 3660 46 4148300870
    5 4270 46 4148300871
    6 5530 46 4148300872
    7 6095 46 4148300873
     T45 Extension Rod  (T45-Round 46-T45)
      Length (mm) Dia.(mm) Part Number
    1 1525 46 4148300874
    2 1830 46 4148300875
    3 3050 46 4148300876
    4 3660 46 4148300877
    5 4270 46 4148300878
    6 5530 46 4148300879
    7 6095 46 4148300880
     T51 Extension Rod  (T51-Round 52-T51)
      Length (mm) Dia.(mm) Part Number
    1 3050 52 4148300947
    2 3660 52 4148300948
    3 4270 52 4148300949
    4 4880 52 4148300950
    5 5530 52 4148300951
    6 6095 52 4148300952
    T51 MF-Rod  (T51-Round 52-T51)
      Length (mm) Dia.(mm) Part Number
    1 1525 52 4148300953
    2 1830 52 4148300954
    3 3050 52 4148300955
    4 3660 52 4148300956
    5 4270 52 4148300957
    6 4880 52 4148300958
    7 5530 52 4148300959
    8 6095 52 4148300960

    We can design and manufacture personalized products to meet your special application


    Pictures

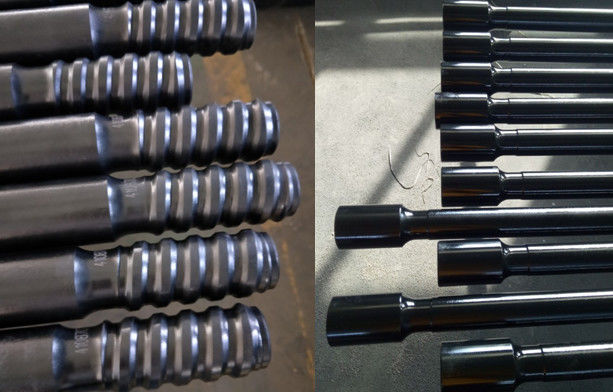

    T38 Extension Rod 3050mm 10 feet

    12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling

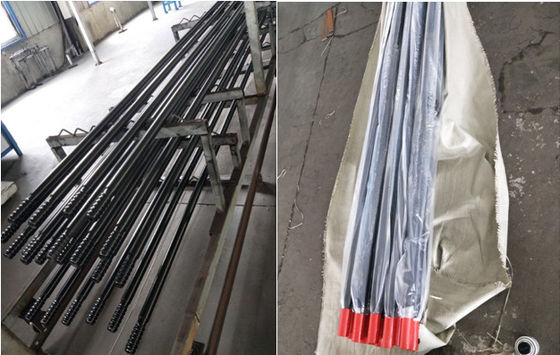

    T45 MF Rod 12 Feet 3660mm

    12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling

    12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling



    12 Feet Speed Threaded Drill Rod High Strength For Long Hole Drilling
