Product Details:
Payment & Shipping Terms:
|
| PDC Cutters: | 1308 | Color: | Gold,Green,Red,Yellow,Blue Etc. |
|---|---|---|---|
| Dia: | 28-42mm | Blades: | 2 Wings |
| Material: | Carbide Steel | ||
| High Light: | tungsten carbide drill bit,mining drilling bits |
||

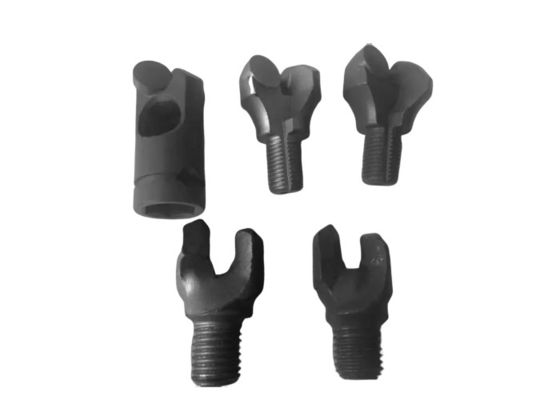

27mm 28mm 32mm pdc anchor drill bits two wings coal mine drill bit
According to different purposes, drill bits are classified into cemented carbide bolting drill bits and PDC bolting drill bits applied to coal mining and laneway and tunnel supporting grid, PDC solid drill bits applied to coalfield geological condition and gas drainage, water injection and drainage down coal mines, and PDC non-solid drill bits applied to coalfield and geological exploration.
|
Diamond (mm) |
Wings |
PDC |
Thread |
Grade |
Color |
|
Φ25 |
2 |
Dome
Flat |
M14
M16
R17
R22
Hex |
Top
Premium
General |
Blue
Gold
Silver
Black |
|
Φ27 |
2 |
||||
|
Φ28 |
2-3 |
||||
|
Φ30 |
2-3 |
||||
|
Φ32 |
2-3 |
||||
|
Φ42 |
2-3 |

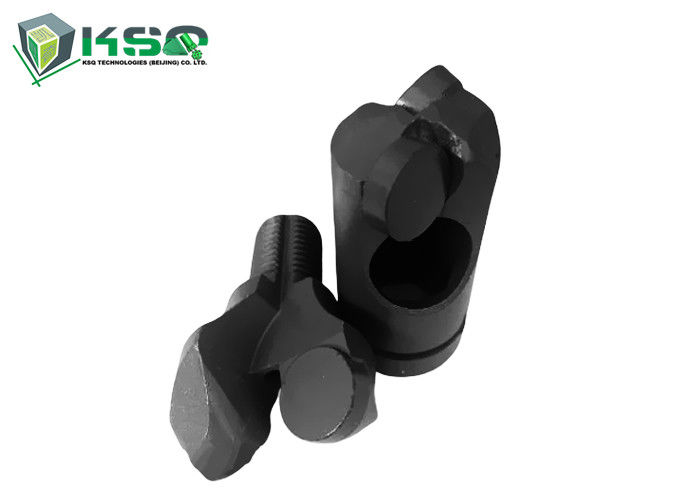

PDC Anchor Bit/PDC/PCD Roof Bit/Coal Mining Bit
PDC anchor shank drill bit is made by with premium PDC cutter, with high abrasion resistance, impact resistance and drilling efficiency. Its life is 10-30 times of alloy bit,could be applied to rock formation f≤14, like conglomerate, granite, limestone, etc.
Application:
To be used for the bolt-mesh support for the coal mine, dam and roadway construction etc.
Standard Size:
Types: Ordinary type; Reinforced type; Super strength type.
Diameter:25, 26, 27, 28, 29, 30, 32, 36, 42mm
Thread Sizes: M14*1.5, M12*2, M16*1.5, M16*2,R thread
Note: We also can produce and design as per clients’ drawings/samples/requirements
| Model | Diameter(mm) | PDC cutter type | Blade No. | Suitable rock formation | Operation mode |
| 1 | 25 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 2 | 26 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 3 | 27 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 4 | 28 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 5 | 29 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 6 | 30 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 7 | 32 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 8 | 36 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2 | Soft, medium, medium-hard | Cutting |
| 9 | 42 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2/3 | Soft, medium, medium-hard | Cutting |
| 10 | 45 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 2/3 | Soft, medium, medium-hard |
Cutting |
KSQ research and produce the following range of drilling tools:
* Tricone bits (roller rock bits) of all sizes.
* PDC cutter/insert 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916...oil or mining type.
* PDC non-core bit, PDC coring bit of diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm...190mm, 216mm…
* PDC anchor bit for roof bolting diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm...

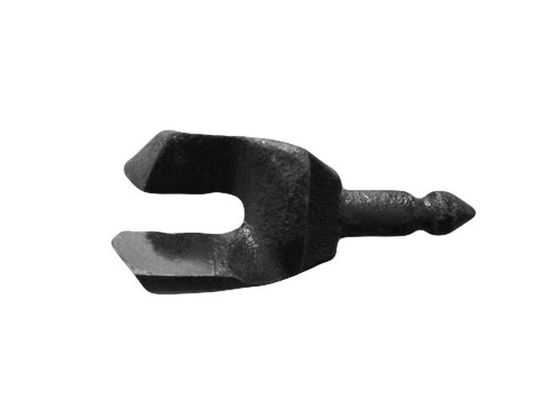

* Tungsten carbide drill bit: twin-wing coal bit, chisel bit, cross bit, button bit, hammer bit...
* Drill rods – hex, twist, spiral…
* Other drill tools.
