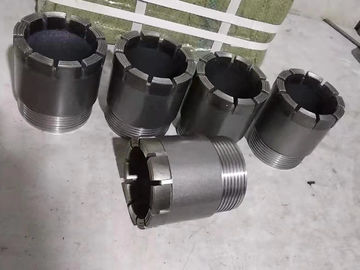

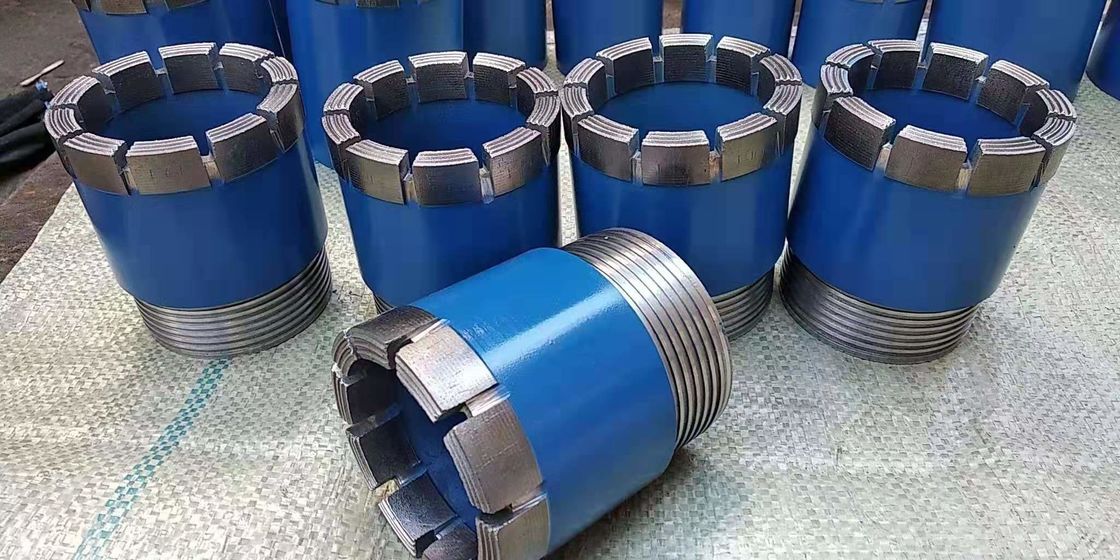

Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm

Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm

    • Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm
    • Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm
  • Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Exploration Drilling Tools

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Type: Diamond Bit & Reamer Material: Tungsten Carbide And Alloy Steel
    Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
    Model: Single Tube Diamond Drill Bit Application: Geological Exploration

    Single tube diamond drill bit dia 28~200mm

    use Hot pressed sintered for Geological Exploration



    Description:

    Single tube diamond drill bit conditions
    1. Drill a complete rock formation of various hardnesses and grinds.
    2. In the development of fissures, the use of double tubes also has a stratum with severe core blockage.
    3. In the above case, the rock layer whose core is not easily washed away by the flushing liquid.
    4. Drill horizontal and vertical holes in the tunnel.
    5. Used for sampling drilling rig drilling.
    6. Shallow drilling of small diameter projects.



    89mm Single tube diamond drill bit :

    Size: 89mm

    Availability type: Electroplated diamond drill bit
                                  Hot pressed sintered diamond bit
                                  Diamond composite drill

    Drill rig type: drilling rig machine.







    Specifications:

    Standard Category Common size
    Chinese standard Single tube φ28 φ36 φ47 φ60 φ75 φ91 φ110 φ130 φ151 φ170 φ200
    Dual tube P46 P56 P59 P75 P91 P110 P130 P150 P157
    Wri-line core S47 S59 S60 S75 S76 S77 S78 S91 S94 S95 S96 S98 S112

    Overseas

    standard

    Q Series AQ BQ NQ HQ PQ BQ3 NQ3 HQ3 PQ3 AW BW NW HW PW
      Others ATW BTW NTW




    Size Outside diameter(mm) Inside diameter(mm)
    AQ 47.75/47.50 27.10/26.85
    BQ 59.69/59.44 36.52/36.27
    BQ3 59.69/59.44 33.65/33.40
    NQ 75.44/75.19 47.75/47.50
    NQ2 75.44/75.19 50.80/50.55
    NQ3, NQTT 75.44/75.19 45.21/44.96
    HQ 95.76/95.38 63.63/63.38
    HQ3, HQTT 95.76/95.38 61.24/60.99
    PQ 122.30/121.80 85.09/84.84
    PQ3 122.30/121.80 83.18/82.93





    Related products

    Core Ddrill bit / Diamond drilling bit
    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm     Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm     Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm     Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm

    Drilling Rods(Pipes)

    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm       Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm       Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm

    Core barrel accessories

    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm     Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm


    Product testing

    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mmSingle Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm



    Diamond bits Crown Shape

    Diamond bits Crown Shape and Applications
    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm Flat

    applicable to drilling different levels of hardness or abrasive formation, generally for

    single and dual tube drill bits.

    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm Semi-round

    good distribution of the diamond at bit face, adapt to a small broken or loose formation, applicable to drilling medium-hard and hard formation.

    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm Ladder applicable to drilling medium-hard, broken or interbedded formations, hole deviation can be prevented.
    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm Serrated applicable to drilling hard and dense formation, Enhancing drilling rate.
    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm Ladder serrated applicable to drilling medium-hard, have good stability during the drilling.
    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm Gear type applicable to harder or dense formations, enhancing drilling rate.
    Single Tube Diamond Tip Drill Bit Hot Pressed Sintered Dia 28 - 200mm Bottom jetting

    bottom jetting applicable to drilling sedimentary or metamorphic formations which containing more power, high coring recovery rate and avoid excessive washout of core .
