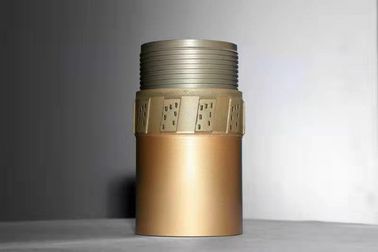

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing
Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing
Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: Exploration Drilling Tools
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10 - 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Type: Diamond Bit & Reamer Material: Tungsten Carbide And Alloy Steel
Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
Model: AQ BQ NQ HQ PQ Application: Geological Exploration
High Light:

rock drill tools

,

tungsten carbide drill bits

Diamonds and high-grate carbide of Reamer with Model AQ BQ NQ HQ PQ



Description:

Reamers feature increased stability and reduced vibrations due to the specially designed spiral pads,which provide increased contact with the circumference of the hole.

Our reaming shells experience longer life in the field due to the greater number of diamonds and high-grade carbide reinforcements.

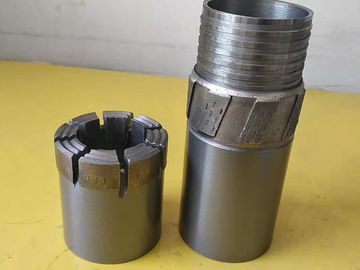

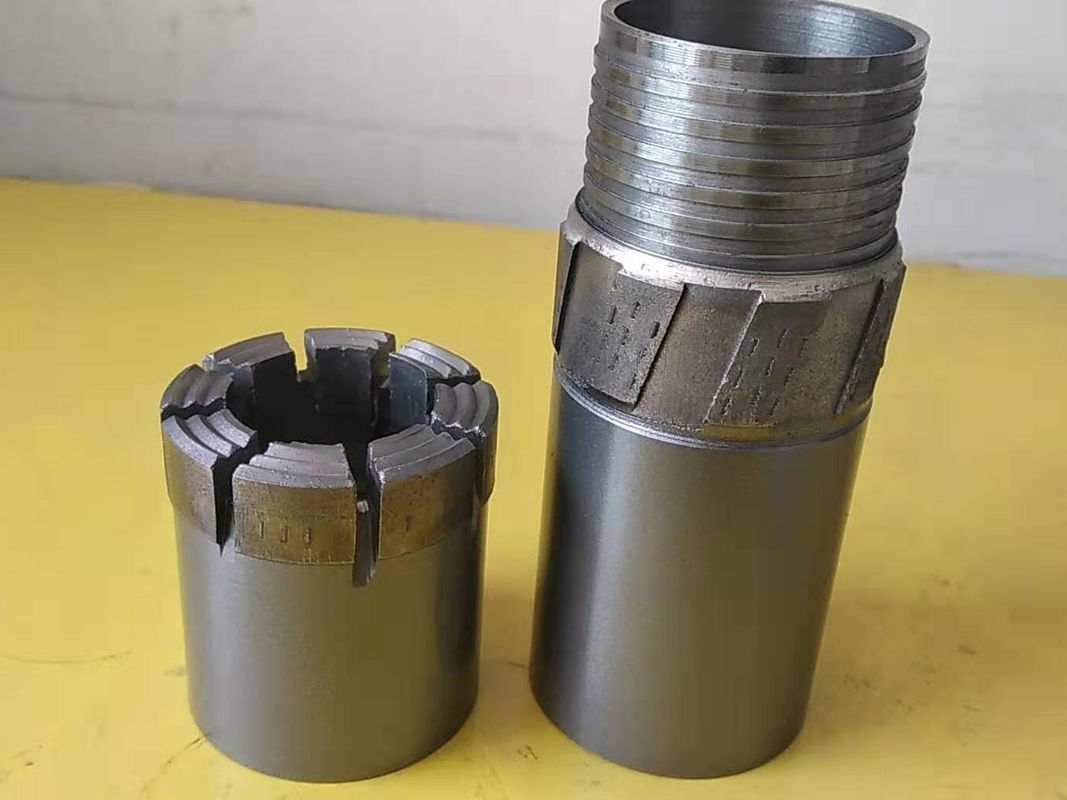

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 0



Features:

1.High penetration rate and drilling effeciency.

2.Long service life;

3.Good gauge effect;

4.High cost performance;

5.Wide usable range, diamond core bits are the most commonly useful bits in the mineral exploration industry.



NQ Diamond Reaming Shell:

Size: NQ

Diameter: 75.57/ 75.82mm

Availability type: Impregnated diamond reaming shell / Surface-set diamond reaming shell

PCD reaming shell / Tungsten carbide reaming shell / Electroplated diamond reaming shell

Connection: Core barrel & Drill bit, drill rod & drill rod.

Drill rig type: Core drilling rig machine.

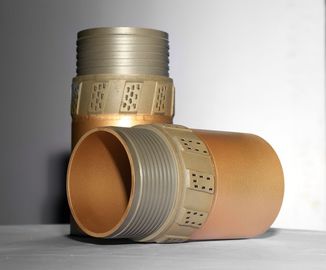

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 1Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 2Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 3


Application

Geological exploration drilling.



Specifications:

Specification Parameters
SIZE Bit O.D. Hole Diameter Bit O.D. Core Diameter Reaming Shell O.D.
INCHES MM INCHES MM INCHES MM
AQ 1.870/1.880 47.50/47.75 1.057/1.067 26.85/27.10 1.885/1.895 47.88/48.13
BQ 2.340/2.350 59.44/59.69 1.428/1.438 36.27/36.53 2.355/2.365 59.82/60.07
BQ3 2.340/2.350 59.44/59.69 1.315/1.325 33.40/33.65 2.355/2.365 59.82/60.07
NQ 2.960/2.970 75.18/75.44 1.870/1.880 47.50/47.75 2.975/2.985 75.57/75.82
NQ2 2.960/2.970 75.18/75.44 1.990/2.000 50.65/50.80 2.975/2.985 75.57/75.82



We supply A-Gauge impregnated core bit:AQ, AW, AGM;

B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;

N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;

H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;

P-gauge impregnated core drilling bit:PQ, PQ3;

TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;

T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131, T6-146, etc.





Related products

Core Ddrill bit / Diamond drilling bit
Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 4 Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 5 Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 6 Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 7

Drilling Rods(Pipes)

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 8 Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 9 Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 10

Core barrel accessories

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 11 Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 12

Packaging & Shipping

1. Delivery time: around 15-20days

2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

3. Package : Carton or Wooden Box

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 13



Company Information



1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.

2. We have advanced technology and equipment.

3. Our technician has more than 25 year’s professional working experience.

4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA,

Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.

Tungsten Carbide PDC Drill Bit Diamond Bit / Reamer Forging Processing 14



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: No, we dont offer free samples, it need to pay first but we will return it back in future orders

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
