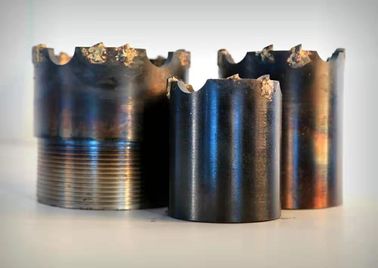

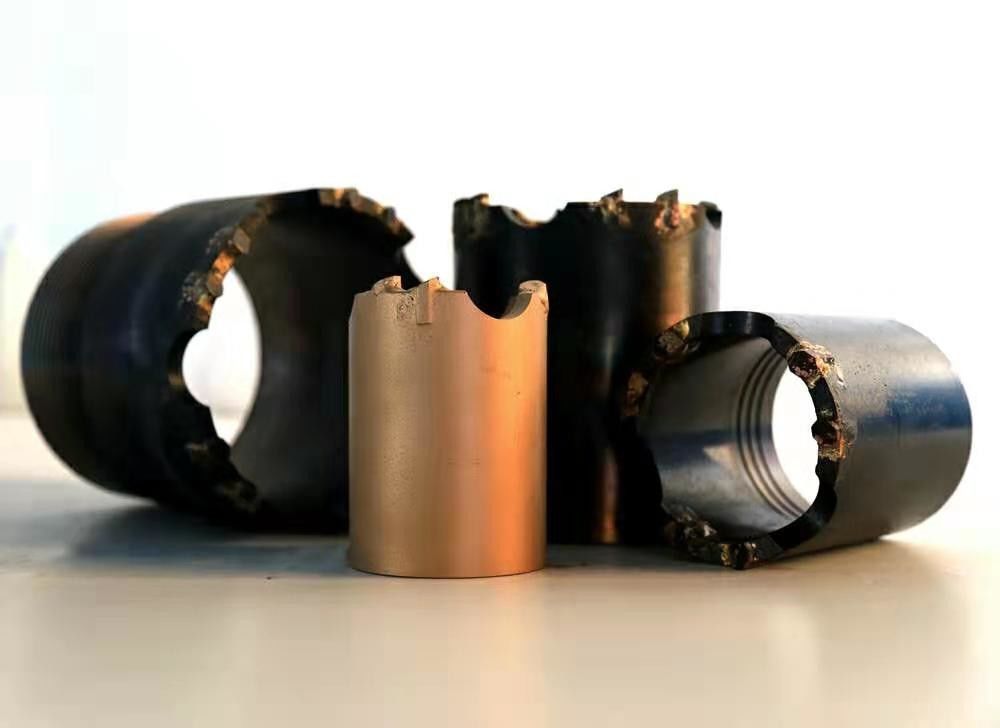

Forged Tungsten Carbide Drill Bits φ60 - 170 For Soft Formations High Precision

Forged Tungsten Carbide Drill Bits φ60 - 170 For Soft Formations High Precision

  • Forged Tungsten Carbide Drill Bits φ60 - 170 For Soft Formations High Precision
  • Forged Tungsten Carbide Drill Bits φ60 - 170 For Soft Formations High Precision
Forged Tungsten Carbide Drill Bits φ60 - 170 For Soft Formations High Precision
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: Exploration Drilling Tools
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10 - 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Type: T.C Bits Material: Tungsten Carbide And Alloy Steel
Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
Model: Tungsten Carbide Drill Bits Application: Soft Formations
High Light:

rock drill tools

,

tungsten carbide drill bits

High quality alloy YG8 T.C Bits/ Tungsten carbide drill bits φ60~170

used primarily in soft formations



Description:

The carbidw T.C Bits is a general purpose bit for geo-technical applications used primarily in soft formations.

Size: 60,75,91,110,130,151,170 etc.



Specifications:

Standard Category Common size
Chinese standard Single tube φ28 φ36 φ47 φ60 φ75 φ91 φ110 φ130 φ151 φ170 φ200
Dual tube P46 P56 P59 P75 P91 P110 P130 P150 P157
Wri-line core S47 S59 S60 S75 S76 S77 S78 S91 S94 S95 S96 S98 S112

Overseas

standard

Q Series AQ BQ NQ HQ PQ BQ3 NQ3 HQ3 PQ3 AW BW NW HW PW
  Others ATW BTW NTW




Size Outside diameter(mm) Inside diameter(mm)
AQ 47.75/47.50 27.10/26.85
BQ 59.69/59.44 36.52/36.27
BQ3 59.69/59.44 33.65/33.40
NQ 75.44/75.19 47.75/47.50
NQ2 75.44/75.19 50.80/50.55
NQ3, NQTT 75.44/75.19 45.21/44.96
HQ 95.76/95.38 63.63/63.38
HQ3, HQTT 95.76/95.38 61.24/60.99
PQ 122.30/121.80 85.09/84.84
PQ3 122.30/121.80 83.18/82.93
