Home ProductsDTH Hammers

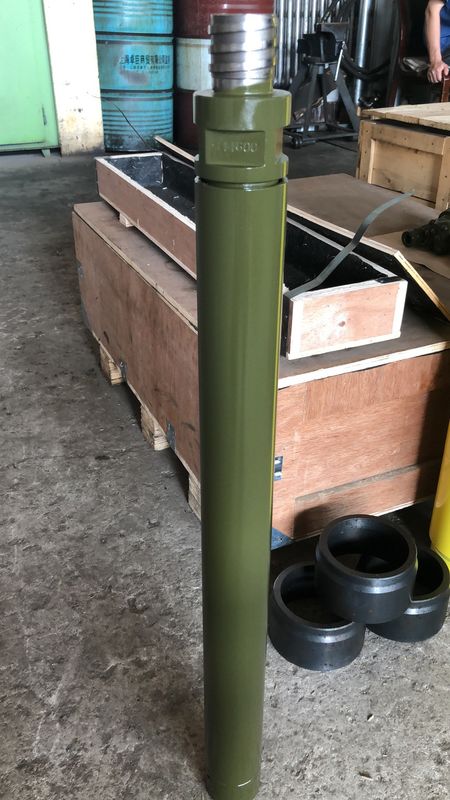

Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining

Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining

    • Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining
    • Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining
    • Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining
    • Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining
    • Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining
  • Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining

    Product Details:

    Place of Origin: China
    Brand Name: MIROC KSQ
    Model Number: DTH65 Hammer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: Carton / Wooden Box or Customized
    Delivery Time: 10 - 20 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20000 PCS Per Month
    Contact Now
    Detailed Product Description
    Type Of Product: DTH Hammer With Low Air Pressure Series: DTH65
    Length: 745 Mm Weight: 13 Kg
    Colors: Black, Green, Blue, Yellow Or Customized Material: Tungsten Carbide, High Strength Alloy Steel
    Application: Mining Operations, Quarrying, Tunneling, Water Well Drilling Processing: CNC Milling And Proprietary Heat Treatment Process
    Rod Thread: Outside M42 X 10 X 1.5

    Down The Hole Hammer DTH65

    Low Air Pressure

    for Mining and Well Drilling



    Specifications:



    1. Drilling: ø68 - 70

    2. Length: 745mm

    3. O.D. : ø61

    4. Weight: 13 kg

    5. Working Pressure: 0.5 - 0.7 Mpa

    6. Air Consumption: 2.5 M3/min

    7. Torque : 51 N.m

    8. Impact Frequency: 810 Impact/min

    9. Rod Thread: Outside M42 x 10 x 1.5

    10. Bit Thread: ø37-4

    11. Bit Shank DTH65







    Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining



    Product Description:

    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

    DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

    • Medium to large size drilling diameters
    • Works in high pressure range, capable of drilling deep hole lengths



    NO REQUIREMENT FOR TESTING AND TRIAL ORDER!!!



    Application:

    • Underground mining operations
    • Quarrying
    • Water well drilling

    • Tunneling and etc.



    Features:
    1. High-grade tungsten carbide inserts
    2. Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
    3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.



    FAQ:

    Q: What methods of payment are accepted?
    A: We work with T/T, L/C, AliBaba, Paypal, West Union, Money Gram.
    Q: Can we select the color of the products?
    A: Yes, sure. Either you can choose the color among our standards or we can make it exactly according to your requirements.
    Q: Can we use our company's logo on your products?
    A: Yes, we can be OEM Company for you.
    Q: What's your delivery time?
    A: It depends on the quantity of your order, but normally the manufacture time is around 10-20 days. And the delivery time depends on the way of shipment (by air/by sea). We always advice you the best way of delivery use the individual approach according to your requirements.
    Q: What about the shipment?
    A: It's based on the product type and the order quantity. We use carton or wooden box (also we can follow your reqirements) ans we can send it to you by Air or by Sea, either send the products to your Chinese agent.
    Q: How to control the quality?
    A: We always carefully check all the details before shipment, we are always online with you if any questions. Your satisfaction with our products is one of our main aims. We can send all the prooves if any questions.
    Q: Do you offer sample order?
    A: Yes, we welcome you to order some samples for testing our quality. For cheching the quality it's need only 1-2 samples to understand our really high quality and be sure in our production.
    Q: Do you have after-sale service and warranty period?
    A: Yes, of course. We offer our clients after-sale maintenance, technical support and warranty. If any questions or problems, please contact us asap and we will reply you within 24 hours.
    Q: Do you have any social network to follow your updates?
    A: Yes, sure. We have:
    Instagram: ksq_tech;
    Twitter: @KsqCo - KSQ Technologies (Beijing) Co. Ltd.
    Facebook: KSQ Technologies
    YouTube: You can find it the search box as
    KSQ Technologies Beijing Co. Ltd. And here is the link on our Youtube channel: https://www.youtube.com/channel/UCeIc646Jih0heU0wxztFQeA?view_as=subscriber





    MIROC® Production:
    Integral Rods

    Plug Hole Rods
    Tapered Drilling Tools
    Extension Drilling Tools
    Drifting and Tunneling Tools
    Reaming Tools
    Shank Rods
    Coupling Sleeves
    Shank Adapters (Striking Bars)
    Down-the-hole (DTH) Bits
    Down-the-hole (DTH) Hammers

    Low Air Pressure Down The Hole Hammer Tungsten Carbide DTH65 For Mining



    Company Information:

    DTH Drill Bit 127mm DHD340 Bit Shank With Spherical and Ballistic Carbide Have Foot Valve


    The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
    MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.



    We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.



    Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
