| Place of Origin: | China |
| Brand Name: | MIROC Shank Adapter |
| Model Number: | Shank Adapter (for Montabert Drifter) |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | Negotiable |

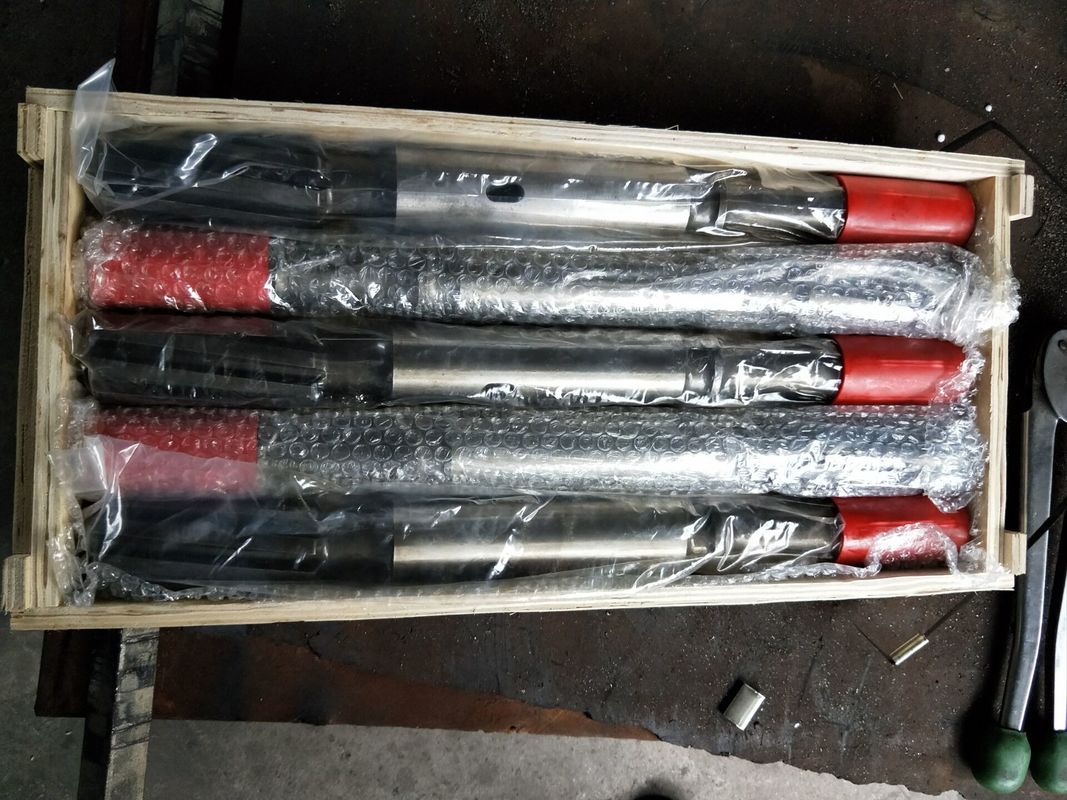

| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 pieces per month |
| Product: | Shank Adapter | Diameter: | 45mm |
|---|---|---|---|
| Length: | 766mm 745mm | Thread: | R32 R38 T38 T45 T51 |
| Color: | Black | Weight: | 2.6kg-16.3kg |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||

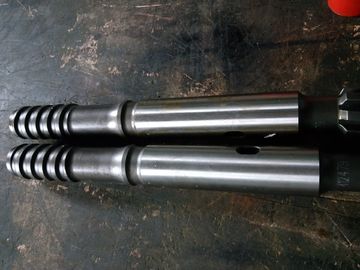

Shank Adapter for TOYO TH800RP Rock Drill
KSQ's full range of shank adapters (striking bars) ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.
Toyo Series
| Toyo TH501, TH550 | |||||
 |
Thread | Length | Dia | Reference No. | |
| mm | mm | Code | Part No. | ||
| T38 | 565 | 45 | 5701-5654536 | 7304-7583-40 | |
| Toyo TH800, TH850 | |||||
|
Thread | Length | Dia | Reference No. | |
| mm | mm | Code | Part No. | ||
| T45 | 510 | 45 | 5702-5104545 | 7305-7585-40 | |
| Toyo TH800RP, TH850RP | |||||
|
Thread | Length | Dia | Reference No. | |
| mm | mm | Code | Part No. | ||
| T38 | 766 | 45 | 5702-7664536 | 7303-7586-40 | |
| T45 | 766 | 45 | 5702-7664545 | 7305-7586-40 | |
Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.
Competitive Advantage
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
