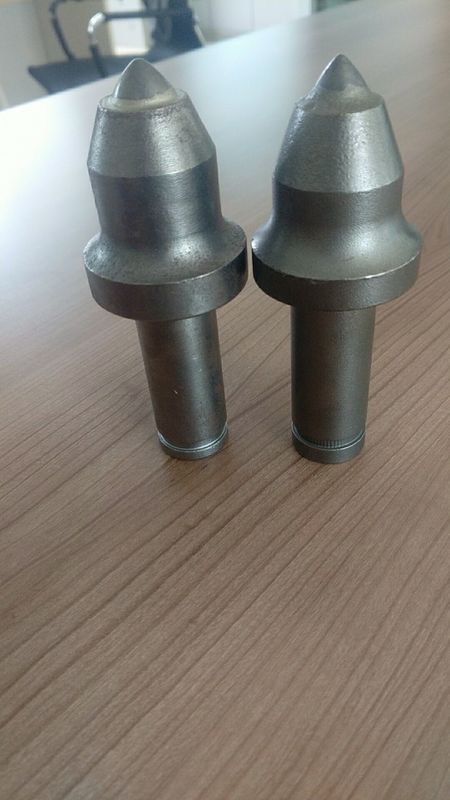

Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit

Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit

    • Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit
    • Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit
  • Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Conical mining bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 7-15 days
    Payment Terms: L/C, D/P, T/T, Western Union
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Gage: 3.15'' Color: Gold,Green,Red,Yellow,Blue Etc.
    Dia: 27mm 28mm 30mm 32mm 42mm Retainer Type: 045 Sleeve
    Tip Dia: 1'' Flange Dia: 2-3/8''
    Length: 5.53''



    Tungsten Carbide Tips coal mining bit / PDC double wing drill bit



    According to different purposes, drill bits are classified into cemented carbide bolting drill bits and PDC bolting drill bits applied to coal mining and laneway and tunnel supporting grid, PDC solid drill bits applied to coalfield geological condition and gas drainage, water injection and drainage down coal mines, and PDC non-solid drill bits applied to coalfield and geological exploration.



    Diamond (mm) Wings PDC Thread Grade Color
    Φ25 2

    Dome



    Flat

    M14



    M16



    R17



    R22



    Hex

    Top



    Premium



    General

    Blue



    Gold



    Silver



    Black

    Φ27 2
    Φ28 2-3
    Φ30 2-3
    Φ32 2-3
    Φ42 2-3



    Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit

    Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit

    Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit

    Parameters of coal mining drill bits/coal cutting pick

    Product number

    Pick length

    (mm)

    Length of head

    (mm)

    Pick hanldle diameter

    (mm)

    PDC insert diameter

    (mm)

    Pick head diameter

    (mm)

    U82 152 80 30 14 50
    U84 142 70 30 16 50
    U85 161 85 30 14 50
    U92 195 101 35 16 55
    U94 183 90 35 19 55
    U95 182 88 35 24 55
    U170 215 89 43 22 64
    D47 140 65 30 23 50
    D120 143 68 30 16 55
    D135 155 80 38 19 63

    PS: We can provide customized products, if you have special requirements, please provide us parameters of the product.

    KSQ research and produce the following range of drilling tools:

    * Tricone bits (roller rock bits) of all sizes.



    * PDC cutter/insert 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916...oil or mining type.



    * PDC non-core bit, PDC coring bit of diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm...190mm, 216mm…



    * PDC anchor bit for roof bolting diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm...



    * Tungsten carbide drill bit: twin-wing coal bit, chisel bit, cross bit, button bit, hammer bit...



    * Drill rods – hex, twist, spiral…



    * Other drill tools.

    Tungsten Carbide Tips Chisel Drill Bit With Double Step Shank / Bullet Tooth Cutter Bit
