|Place of Origin:||China|
|Model Number:||Conical mining bit|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||Carton Box or Wooden Box|
|Delivery Time:||7-15 days|
|Payment Terms:||L/C, D/P, T/T, Western Union|
|Supply Ability:||20000 pieces per month|
|Dia:||27mm 28mm 30mm 32mm 42mm||Retainer Type:||045 Sleeve|
|Tip Dia:||1''||Flange Dia:||2-3/8''|
tungsten carbide drill bit,
mining drilling bits

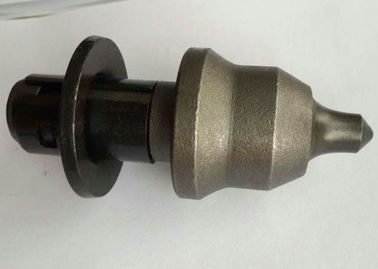

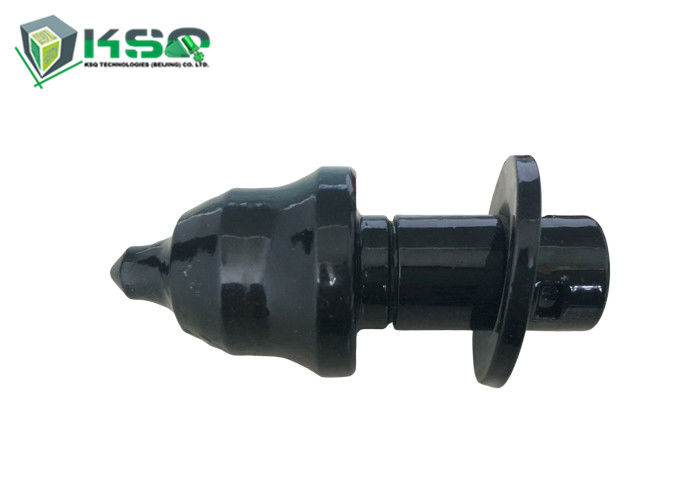

Tungsten Carbide Tips coal mining bit / PDC double wing drill bit
Tungsten Carbide Particles: We only use the highest grade tungsten carbide as raw material for tool tips. The crushed raw material dual grain structure tungsten carbide offers high abrasive resistance.
Tungsten Carbide: The carbide raw material is pressed and sintered to produce high-quality dual grain structure tungsten carbide that has incredible we properties plus high wear resistance.
Steel Body: we are using 42crmo alloy steel, one of the highest grade of steel material. It has a hardness of up to 42-55 HRC which offers strength to the tungsten carbide tip.
Hard facing: We use specially made CR-W or chromium to make wear-resisting welded layer on the tools with the hardness of up to 55hrc-60hrc. In addition, CR-W has excellent abrasion resistance and impact resistance performance.
According to different purposes, drill bits are classified into cemented carbide bolting drill bits and PDC bolting drill bits applied to coal mining and laneway and tunnel supporting grid, PDC solid drill bits applied to coalfield geological condition and gas drainage, water injection and drainage down coal mines, and PDC non-solid drill bits applied to coalfield and geological exploration.

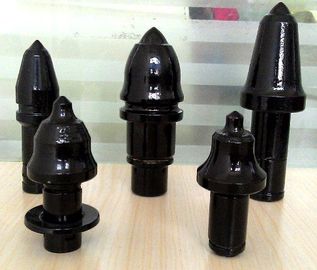

Parameters of coal mining drill bits/coal cutting pick
Length of head
Pick hanldle diameter
PDC insert diameter
Pick head diameter
PS: We can provide customized products, if you have special requirements, please provide us parameters of the product.
KSQ research and produce the following range of drilling tools:
* Tricone bits (roller rock bits) of all sizes.
* PDC cutter/insert 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916...oil or mining type.
* PDC non-core bit, PDC coring bit of diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm...190mm, 216mm…
* PDC anchor bit for roof bolting diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm...
* Tungsten carbide drill bit: twin-wing coal bit, chisel bit, cross bit, button bit, hammer bit...
* Drill rods – hex, twist, spiral…
* Other drill tools.
