Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration

Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration

    • Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration
    • Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration
    • Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration
  • Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Exploration Drilling Tools

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Type: Diamond Bit & Reamer Material: Tungsten Carbide And Alloy Steel
    Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
    Model: AQ BQ NQ HQ PQ Application: Geological Exploration

    Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ



    Description:

    Impregnated diamond bits have the widest range of application. They are the most commonly useful bits from medium to super hard formations in the mineral exploration industry. the Hardness and abrasive of the rock formation are the key factors to determine the diamond specifications, concentration and matrix
    hardness.



    Diamond bits Crown Shape

    Diamond bits Crown Shape and Applications
    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration Flat

    applicable to drilling different levels of hardness or abrasive formation, generally for

    single and dual tube drill bits.

    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration Semi-round

    good distribution of the diamond at bit face, adapt to a small broken or loose formation, applicable to drilling medium-hard and hard formation.

    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration Ladder applicable to drilling medium-hard, broken or interbedded formations, hole deviation can be prevented.
    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration Serrated applicable to drilling hard and dense formation, Enhancing drilling rate.
    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration Ladder serrated applicable to drilling medium-hard, have good stability during the drilling.
    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration Gear type applicable to harder or dense formations, enhancing drilling rate.
    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration Bottom jetting

    bottom jetting applicable to drilling sedimentary or metamorphic formations which containing more power, high coring recovery rate and avoid excessive washout of core .



    Toothed bits can get higher drilling efficiency when it is drilling at dense or abrasive stratum with lower drilling speed and pressure. It was especially effective at coal formation, using toothed bits can get better
    water flowing and drilling footage effect. Nowadays, Impregnated diamond bits have been widely used in wire-line drilling series.


    Application

    Geological exploration drilling.



    Specifications of Diamond bits & reamers

    Overseas Standard Q Series AQ BQ NQ PQ BQ3 NQ3 HQ3 PQ3 AW BW NW HW PW
    Others ATW BTW NTW



    Photos:

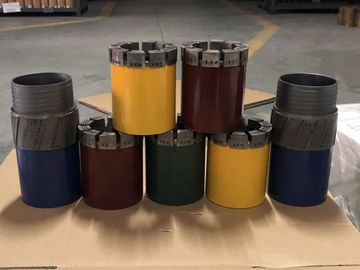

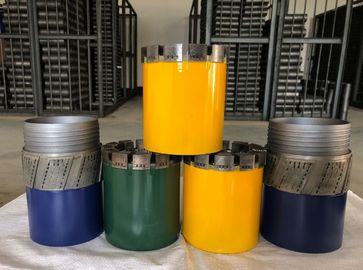

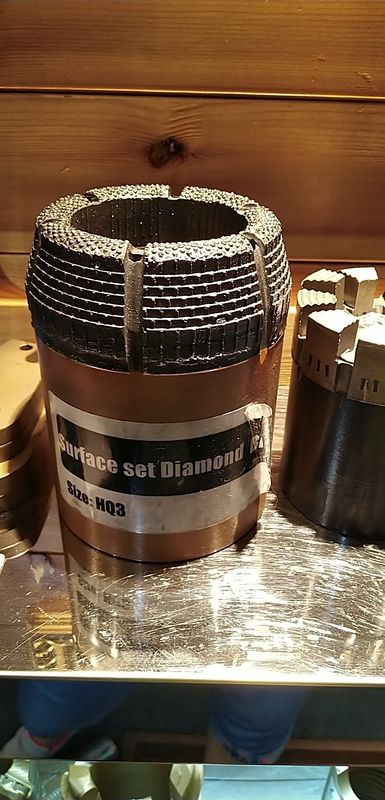

    Diamond core bit

    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration

    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration

    Reamer

    Impregnated PDC Drill Bit Diamond Core Bit Reamer Forging For Geological Exploration
