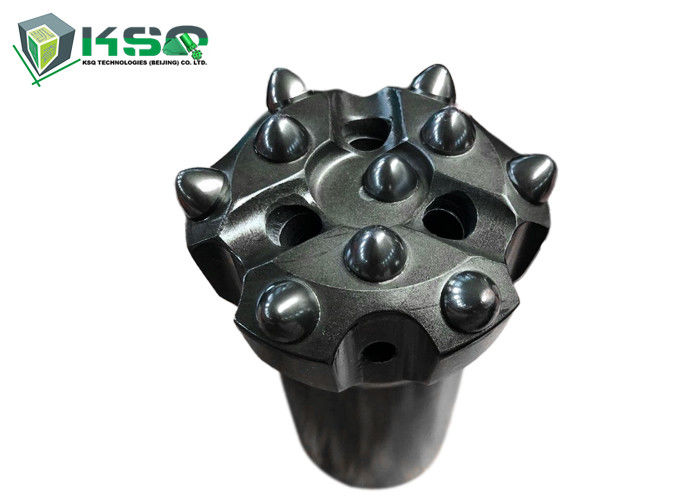

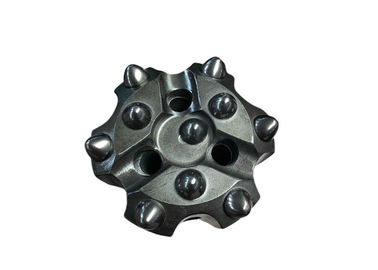

Diameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For Granite

Diameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For Granite

    • Diameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For Granite
    • Diameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For Granite
  • Diameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For Granite

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Thread Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 10000 units per months
    Contact Now
    Detailed Product Description
    Diameter: 76-89mm Thread: T38
    Button: Semi-ballistic Center: Drop Center
    Body: Normal/retrac

    diameter 89mm T38 button bit for granite hard rock drilling semi-ballistic







    Product Description



    Retrac button bits dvantages:

    1.superior alloy steel and tungsten carbide.

    2.Hot-pressed buttons insertion technology.





    Specification



    The parameters of T38 76mm rock drill bit are below for your referrence,other specification can be customized:



    Diameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For GraniteDiameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For Granite

    R38/T38 rock drill button bits, normal skirt
    Diameter T.C buttons Flushing hole Angle Button type Weight
    mm inch Gauge x mm Front x mm Side Front Gauge dome/conical Kg
    89 3 1/2 8x13 5x11 0 2 35°

    3.25







    Retrac thread button bits application



    Retrac thread button bit are widely used in hole drilling in water well drilling, mineral exploration, earthwork project, RC drill rig, geothermal exploration, blast holes drilling and construction.
    They are mainly suitable for hard rocks.
    Diameter 89mm T38 Button Bit Rock Drilling Tools Semi Ballistic For Granite
