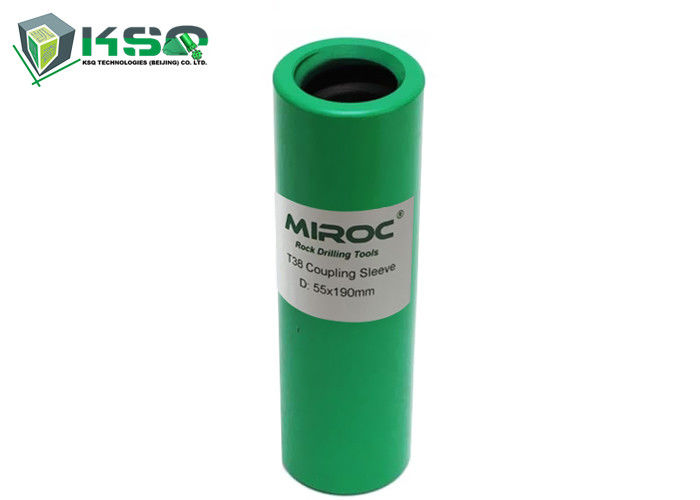

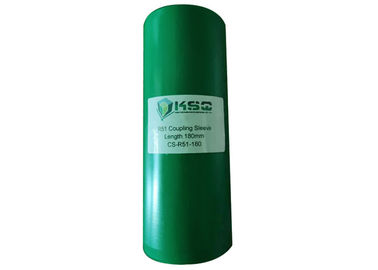

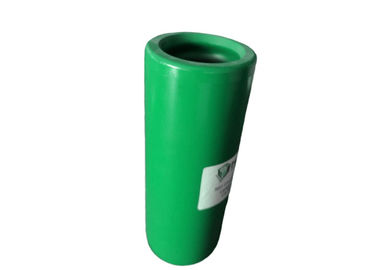

Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter

Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter

    • Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter
    • Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter
    • Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter
  • Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter

    Product Details:

    Place of Origin: China
    Brand Name: MIROC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-20 Days
    Payment Terms: L/C, T/T
    Supply Ability: 10000 units per months
    Contact Now
    Detailed Product Description
    Thread: R25 R32 T38 T45 R51 Length: 225mm
    Diameter: 71mm Color: Green Black, Customized
    Weight: 4.6kg
    High Light:

    crossover coupling

    ,

    rock drilling tool

    ,

    threaded coupling

    T38 T45 T51 Coupling For Connecting Extension Coupling

    Threaded coupling sleeve are made of high quality of alloy steels and CNC machining guarantee our reliable and consistent quality control of coupling sleeves.Both semi-bridge and full-bridge coupling sleeves are manufactured by us in different sizes as below:Thread sizes: R22, R25, R28, R32, R35, R38, T38, T45, T51;


    Two catagories: Standard coupling sleeves, adapter(crossover) coupling sleeves;



    Product Name: hot sale threaded coupling sleeves for connecting thread drill rod
    Description: Couplings sleeve are used to connect several rods to each other
    Material: Alloy steel bar
    MOQ: No MOQ required for testing and trial order
    Type full-bridge,semi-bridge,same diameter etc.
    Thread type R22,R25,R28,R32,R38,T38,T45,T51
    Diameter 33mm-76mm
    Length 140mm-250mm
    Color Gold, Black,Green



    Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter

    Coupling sleeve
    Thread Diameter Length Weight
    A B mm inch mm inch Kg
    R25 R32 45 13/4 170 657/64 1.10
    R28 R32 45 13/4 170 657/64 0.96
    R32 R38 55 25/32 180 71/8 1.86
    R32 T38 55 25/32 180 71/8 2.10
    R38 T38 55 25/32 190 733/64 1.86
    R25 35 119/50 150 59/10 0.72
    R28 40 129/50 155 61/10 0.95
    R32 45 13/4 170 657/64 1.32
    R38 55 25/32 170 657/64 1.71
    T45 63 215/32 210 817/64 3.12
    T45 66 219/32 210 817/64 3.51
    T51 72 27/8 235 91/4 5.22
    T51 76 3 235 91/4 5.75
    Long Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm DiameterLong Hole Drill Coupling Sleeve T38 T45 R51 Full Bridge Threaded 71mm Diameter
