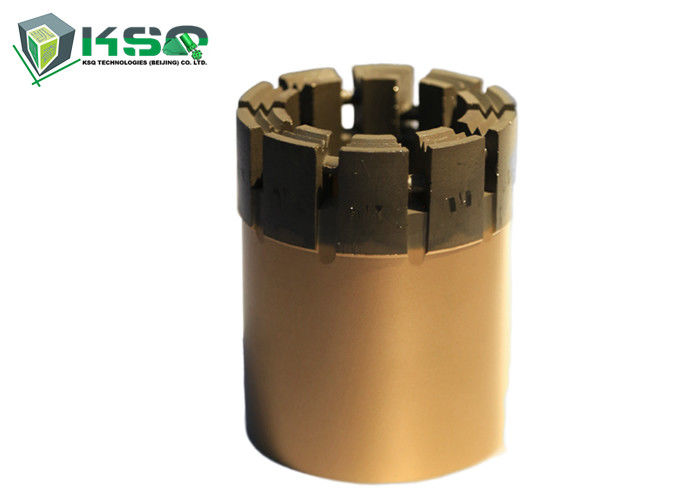

Precision Diamond Core Bit For Hard Rock Flat Bit Profile 1.82" - 5.76" Diameter

Precision Diamond Core Bit For Hard Rock Flat Bit Profile 1.82" - 5.76" Diameter

    • Precision Diamond Core Bit For Hard Rock Flat Bit Profile 1.82" - 5.76" Diameter
    • Precision Diamond Core Bit For Hard Rock Flat Bit Profile 1.82" - 5.76" Diameter
  • Precision Diamond Core Bit For Hard Rock Flat Bit Profile 1.82" - 5.76" Diameter

    Product Details:

    Place of Origin: China
    Brand Name: MIROC by KSQ
    Certification: IOS
    Model Number: Core drill bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 5-7 days
    Payment Terms: L/C, T/T
    Supply Ability: 10000 units per months
    Contact Now
    Detailed Product Description
    Diameter: 1.82''-5.76'' Core Area: 1.52''-21.21''
    Bit Profile: Flat
    High Light:

    stone drilling tools

    ,

    rock drill tools

    Drill Bit & Reamer

    Impregnated Diamond Core Drill Bits solves the common problems of block falling. It has the characteristics of high efficiency, long service life, good appearance and strong formation adaptability. Impregnated Diamond Core Drill Bits has single tube, double tube, rope, Q series and hole expander. It is suitable for drilling in wide, hard and complete formations, especially in medium and hard formations. and it is widely used in geological survey, coal mining, water conservancy and Hydropower industries.etc

    Wireline Diamond Core Drill Bits is made of large grain emery. It is made of precise formula and is suitable for deep drilling in hard rock stratum, with long service life, no tooth dropping and no delamination.

    Wireline Diamond Core Drill Bits is suitable for very competent/slightly abrasive formations.decreasing contact areas between bits and rocks and improving pressures,lead to higher penetration rates.

    Precision Diamond Core Bit For Hard Rock Flat Bit Profile 1.82" - 5.76" Diameter

    We can provide:

    1, Diamond Core Bit (Impregnated & Surface Set)

    2, Diamond Non-coring Bit (Impregnated & Surface Set)

    3, Reamer Shell (synthetic & Natural diamond, T.C type)

    4,Tungsten Carbide Bit

    5, TSP Core Bit

    6, PDC Bit

    7, Sonic Bit





    Features:

    1.High penetration rate and drilling effeciency.

    2.Long service life;

    3.Good gauge effect;

    4.High cost performance;

    5.Wide usable range, diamond core bits are the most commonly useful bits in the mineral exploration industry.



    Specification:

    Double tube surface
    Size( surface exploration drill Matric system(mm) Imperial system( in )
    Hole diameter Core diameter Hole diameter Core diameter
    BQ 60 36.4 2.36 1.43
    NQ 75.7 47.6 2.98 1.88
    HQ 96.1 63.5 3.78 2.5
    PQ 122.7 85 4.83 3.34
    Triple tube surface
    NQ3 75.7 45 2.98 1.78
    HQ3 96.1 61.1 3.78 2.41
    PQ3 122.7 83 4.83 3.27



    We supply A-Gauge impregnated core bit:AQ, AW, AGM;

    B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;

    N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;

    H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;

    P-gauge impregnated core drilling bit:PQ, PQ3;

    TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;

    T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131, T6-146, etc.
