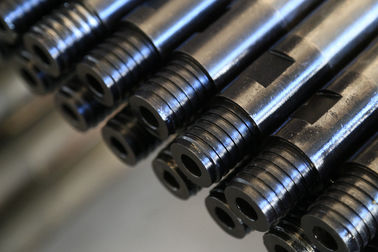

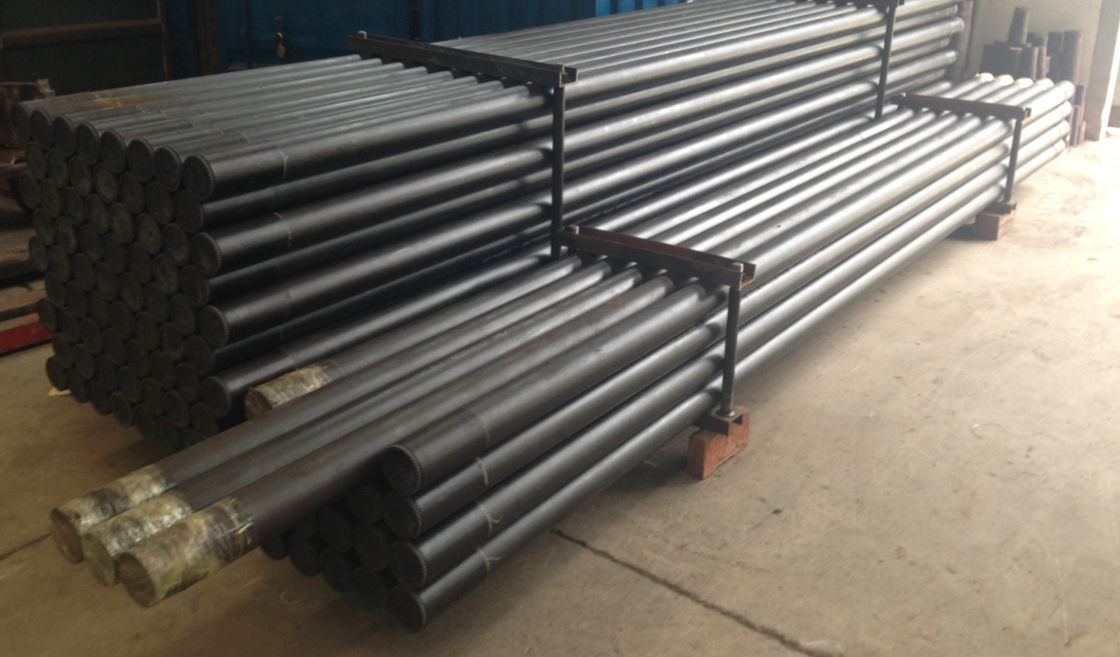

NQ 75mm Diameter Wireline Core Drill Guide Rod High Strength Seamless Steel Pipe

NQ 75mm Diameter Wireline Core Drill Guide Rod High Strength Seamless Steel Pipe

    • NQ 75mm Diameter Wireline Core Drill Guide Rod High Strength Seamless Steel Pipe
    • NQ 75mm Diameter Wireline Core Drill Guide Rod High Strength Seamless Steel Pipe
    • NQ 75mm Diameter Wireline Core Drill Guide Rod High Strength Seamless Steel Pipe
  • NQ 75mm Diameter Wireline Core Drill Guide Rod High Strength Seamless Steel Pipe

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Core Reaming Shell

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 5-7 dyas
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000 units per months
    Contact Now
    Detailed Product Description
    Diameter: NQ 75mm ROD: NQ 1.5m 3.0 M
    Rod OD: 69.90mm Rod ID: 60.30mm
    THREAD PITCH: 8.5mm

    BQ NQ HQ PQ AQ Hot Selling wireline core drill rod / drill pipe core barrel





    Coring barrel is a section of tube in coring drilling, it is attached to the upper part of the drill bit to accommodate and protect the core. It also acts as a guiding tool when drilling. The ordinary core tube is only a seamless steel pipe with thread at both ends, and the diameter is slightly smaller than the diameter of the drill bit (2 to 4 mm). The single core tube is 3 to 4.5 meters long. In order to prevent the bending of the hole, several core tubes can be connected to form a long and large diameter drilling tool.



    QB C series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cutters
    Spec. Unit BCB NCB HCB PCB
    OD/ID mm 55.6/46 71/60 89/77.8 114.3/101.6
    Thickness mm 4.8 5.5 5.6 6.35
    Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3
    Weight kg/m 6.01 8.8 11.51 17.3
    thread length mm 44.45 44.45 44.45 63.5
    thread pitch thread/inch 3 3 3 2.5
    box thread tooth height mm 0.76 0.76 0.76 1.17
    pin thread tooth height mm 0.88 0.88 0.88 1.27
    thread tooth angle . 29 29 29 29
    tensile resistance(A series) kn 400 530 510 565
    tensile resistance(B series) kn 450 615 625 660
    bore depth m 1200 1000 900 800

    RC series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cutters
    Spec. Unit BRC NRC HRC PRC
    OD/ID mm 55.6/46 69.9/60.3 88.9/77.8 114.3/101.6
    Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3
    Weight kg/m 6.01 8.8 11.51 17.3
    thread length mm 42 42 41.91 63.5
    thread pitch thread/inch 3 3 3 2.5
    box thread tooth height mm 0.76 0.76 0.76 1.17
    pin thread tooth height mm 0.88 0.88 0.88 1.27
    thread tooth negative angle . 5 5 5 5
    tensile resistance(A) kn 450 525 545 565
    tensile resistance(B) kn 530 625.5 602 660
    bore depth m
    Process: cutting-upsizing-machining -heat treatment-machining -phosphating-antirust
    type: connect directly ,coupling, upsizing without coupling
    Material:30CrMnSiA or 45MnMoB(A grade), XJY850 or BG850( B grade)

    Impregnated diamond core bits specifications

    Core Barrel Specification Outside Set Diameter Inside Set Diameter
    Maximum Minimum Maximum Minimum
    inches mm inches mm inches mm inches mm
    AQ 1.880 47.75 1.870 47.5 1.607 27.10 1.057 26.85
    BQ 2.350 59.69 2.340 59.44 1.438 36.52 1.428 36.27
    NQ 2.970 75.44 2.960 75.19 1.880 47.75 1.870 47.50
    HQ 3.770 95.76 3.755 95.38 2.505 63.63 2.495 63.38
    PQ 4.815 122.3 4.795 121.8 3.350 85.09 3.340 84.84
    T2-101 3.981 101.12 3.971 100.8 3.300 83.82 3.290 83.57
    T6-101 3.981 101.12 3.971 100.8 3.115 79.12 3.105 78



    We have other series impregnated core bits

    Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76

    T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

    TT series: TT 46, TT 56

    T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

    T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146

    B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

    MLC series: NMLC, HMLC

    LTK series: LTK48, LTK60

    WF series: HWF, PWF, SWF, UWF, ZWF

    WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)

    WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)

    WM series: EWM, AWM, BWM, NWM, HWM

    Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW

    Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm

    Russian standard: 59, 76, 93, 112, 132, 152 mm

    We also supply TSP core bits, PDC matrix body core bits, and steel body PDC core bits.
