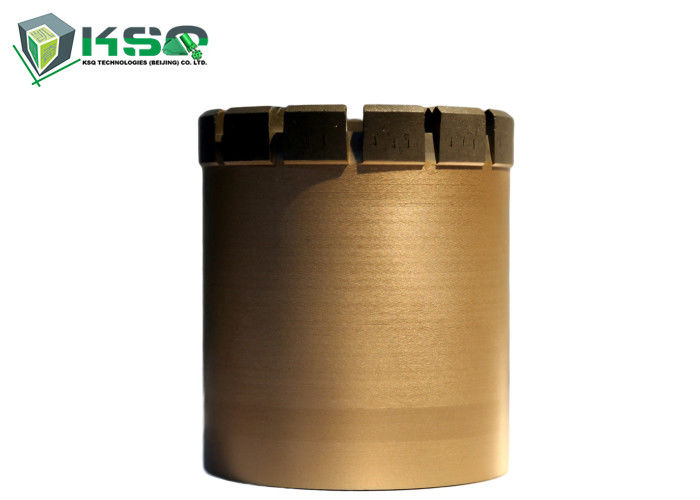

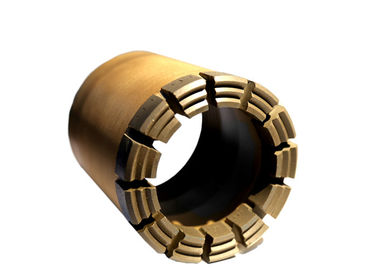

HQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock Coring

HQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock Coring

    • HQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock Coring
    • HQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock Coring
  • HQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock Coring

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Core drill bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 5-7 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10000 units per months
    Contact Now
    Detailed Product Description
    Diameter: HQ Rock Type: Hard Rock Formation
    Bit Profile: Flat Color: Gold

    Drill Bit & Reamer



    Impregnated diamond core bit is made of diamond and steel. It can use in medium hard rocks to hard rocks in geological drilling and mineral mining.Impregnated Diamond Core Drill Bits solves the common problems of block falling. It has the characteristics of high efficiency, long service life, good appearance and strong formation adaptability. Impregnated Diamond Core Drill Bits has single tube, double tube, rope, Q series and hole expander. It is suitable for drilling in wide, hard and complete formations, especially in medium and hard formations. and it is widely used in geological survey, coal mining, water conservancy and Hydropower industries.etc

    Wireline Diamond Core Drill Bits is made of large grain emery. It is made of precise formula and is suitable for deep drilling in hard rock stratum, with long service life, no tooth dropping and no delamination.

    Wireline Diamond Core Drill Bits is suitable for very competent/slightly abrasive formations.decreasing contact areas between bits and rocks and improving pressures,lead to higher penetration rates.



    We can provide:



    1, Diamond Core Bit (Impregnated & Surface Set)

    2, Diamond Non-coring Bit (Impregnated & Surface Set)

    3, Reamer Shell (synthetic & Natural diamond, T.C type)

    4,Tungsten Carbide Bit

    5, TSP Core Bit

    6, PDC Bit

    7, Sonic Bit

    HQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock Coring



    Features:

    1.High penetration rate and drilling effeciency.

    2.Long service life;

    3.Good gauge effect;

    4.High cost performance;

    5.Wide usable range, diamond core bits are the most commonly useful bits in the mineral exploration industry.



    Specification:

    Double tube surface
    Size( surface exploration drill Matric system(mm) Imperial system( in )
    Hole diameter Core diameter Hole diameter Core diameter
    BQ 60 36.4 2.36 1.43
    NQ 75.7 47.6 2.98 1.88
    HQ 96.1 63.5 3.78 2.5
    PQ 122.7 85 4.83 3.34
    Triple tube surface
    NQ3 75.7 45 2.98 1.78
    HQ3 96.1 61.1 3.78 2.41
    PQ3 122.7 83 4.83 3.27



    We supply A-Gauge impregnated core bit:AQ, AW, AGM;

    B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;

    N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;

    H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;

    P-gauge impregnated core drilling bit:PQ, PQ3;

    TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;

    T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131, T6-146, etc.

    HQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock CoringHQ Impregnated Rock Drilling Tools Wire Line Diamond Teeth For Mining And Rock Coring
