T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry

T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry

    • T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry
    • T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry
    • T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry
  • T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Exploration Drilling Tools

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Application: Geological Exploration Feature: High Precision
    Material: Alloy Steel Color: Green, Blue, Golden, Orange Etc.
    Processing Type: Forging Model: T2

    High quality Core bit T2 alloy Bits drill bits and T2 drill pipe for soft formations



    Description:





    Impregnated diamond bits have the widest range of application. They are the most commonly useful bits from medium to super hard formations in the mineral exploration industry. the Hardness and abrasive of the rock formation are the key factors to determine the diamond specifications, concentration and matrix hardness.



    Depending on the range of application as well as the cutting media on the core bits,

    MIROC® Rock Drilling and Ground Support Tools include:


    --Diamond bits and Reaming shell

    --PDC bits and Casing shoes

    --Drill rod and Drill tools in Q series

    --Core barrel assembly and accessories.

    --Diamond tools



    Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.

    Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc..



    Diamond bits Crown Shape

    Diamond bits Crown Shape and Applications
    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry Flat

    applicable to drilling different levels of hardness or abrasive formation, generally for

    single and dual tube drill bits.

    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry Semi-round

    good distribution of the diamond at bit face, adapt to a small broken or loose formation, applicable to drilling medium-hard and hard formation.

    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry Ladder applicable to drilling medium-hard, broken or interbedded formations, hole deviation can be prevented.
    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry Serrated applicable to drilling hard and dense formation, Enhancing drilling rate.
    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry Ladder serrated applicable to drilling medium-hard, have good stability during the drilling.
    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry Gear type applicable to harder or dense formations, enhancing drilling rate.
    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry Bottom jetting

    bottom jetting applicable to drilling sedimentary or metamorphic formations which containing more power, high coring recovery rate and avoid excessive washout of core .





    Toothed bits can get higher drilling efficiency when it is drilling at dense or abrasive stratum with lower drilling speed and pressure. It was especially effective at coal formation, using toothed bits can get better
    water flowing and drilling footage effect. Nowadays, Impregnated diamond bits have been widely used in wire-line drilling series.


    Application



    Geological exploration drilling.



    Specifications of Diamond bits & reamers



    Core Barrel Designation

    Outside Set Diameter

    Inside Set Diameter

    Maximum

    Minimum

    Maximum

    Minimum

    Inch

    mm

    Inch

    mm

    Inch

    mm

    Inch

    mm

    AQ

    1.88

    47.75

    1.87

    47.5

    1.067

    27.1

    1.057

    26.85

    BQ

    2.35

    59.69

    2.34

    59.44

    1.438

    36.52

    1.428

    36.27

    NQ

    2.97

    75.44

    2.96

    75.19

    1.88

    47.75

    1.87

    47.5

    HQ

    3.77

    95.76

    3.755

    95.38

    2.505

    63.63

    2.495

    63.38

    PQ

    4.815

    122.3

    4.795

    121.8

    3.35

    85.09

    3.34

    84.84




    Photos:

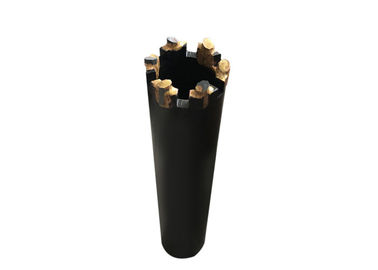

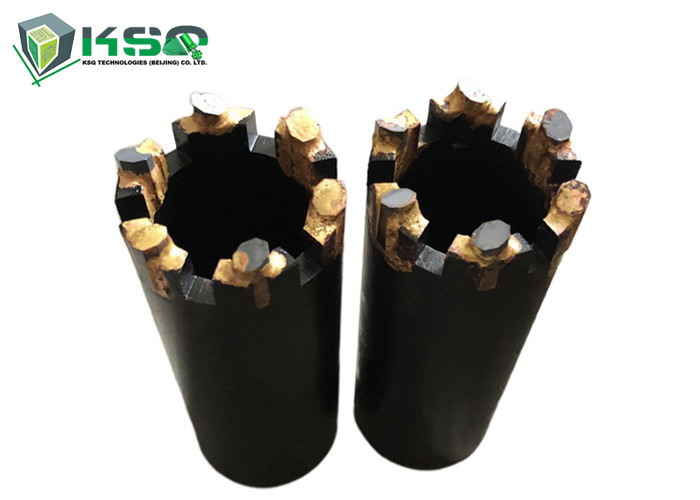

    T2 Alloy Bit

    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry

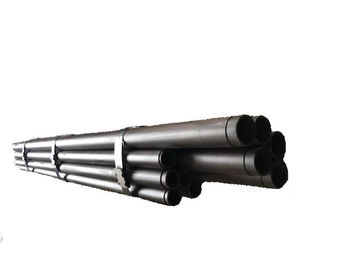

    T2 Drill pipe

    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry

    Couping

    T2 Forging PDC Drill Bit / Rock Drill Bits For Mineral Exploration Industry
