    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Exploration Drilling Tools

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Type: Diamond Bit & Reamer Material: Alloy Steel
    Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
    Model: T2 Application: Geological Exploration

    High quality HQ3 Surface set diamond bit /core drill bit for soft formations



    Description:

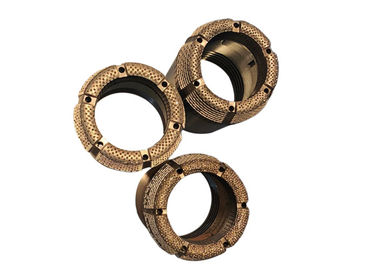

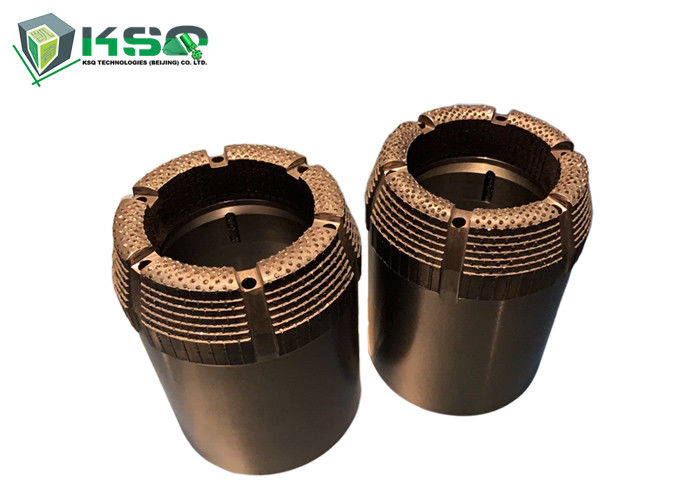

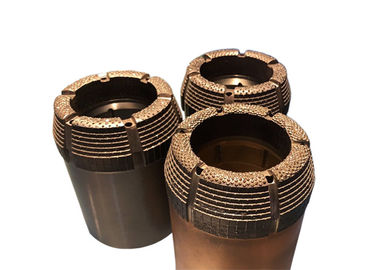

    SURFACE SET CORING BITS

    Surface set coring bits are typically used for higher penetration rates than impregnated bits in softer formations. They utilize a single layer of natural diamonds set in a hard matrix.



    The choice of a Surface Set Bit will be dictated by the rock type. The diamond size, crown design and matrix hardness used will be determined by the hardness of the formation. The friability of the core will determine the type of fluid passages. The surface set bit provides a greater exposure of diamonds than the impregnated bit and therefore faster penetration in soft formations.



    Face Profiles of surface set core bit:
    Semi-round: it is mostly used in the core bit with bit kerf thickness less than 11mm. It can drill various formations. The core bit with semi-round profile has long bit life, and can avoid damage; while the bit kerf thickness is over 11mm with semi-round profile can be applied in drilling abrasive formations.

    Stepped profile: core bit kerf thickness over 11mm usually has this kind of profile. Bit with Stepped profile can obtain high penetration rate with good stability in drilling. However, it is not recommended in fractured very abrasive formations. When the core bit of bit kerf less than 11mm has stepped profile can facilitate drilling speed and have better drilling stability.

    Size Available:

    Dimension of Surface core drill bits
    Q Series AQ, BQ, NQ, HQ, PQ, NQ2, NQ3, HQ2, HQ3, PQ3
    T,TT,T2&TB Series T36,TT46,T2-46,TB56,TT56,T2-56,T2-66,T2-76,T2-76coreline,T2-86,T2-86coreline, T2-101,T2-101core line
    T6 Series T6-76,T6-86,T6-101,T6-116,T6-131,T6-146
    T6S Series T6S-76,T6S-86,T6S-101,T6S-116,T6S-131,T6S-146
    B Series B36,B46,B56,B66,B76,B86,B101,B116,B131,B146
    Z Series Z46,Z56,Z66,Z76,Z86,Z101,Z116,Z131,Z146
    WF Series HWF,PWF,SWF,UWF,ZWF
    WT Series HWF,PWF,SWF,UWF,ZWF
    WM Series EWM,AWM,BWM,NWM,HWM
    WG Series

    EWG,AWG,BWG,NWG,HWG



    We supply A-Gauge impregnated core bit:AQ, AW, AGM;

    B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;

    N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;

    H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;

    P-gauge impregnated core drilling bit:PQ, PQ3;

    TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;

    T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131, T6-146, etc.
