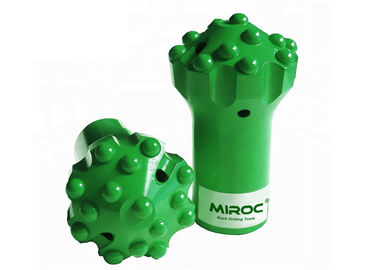

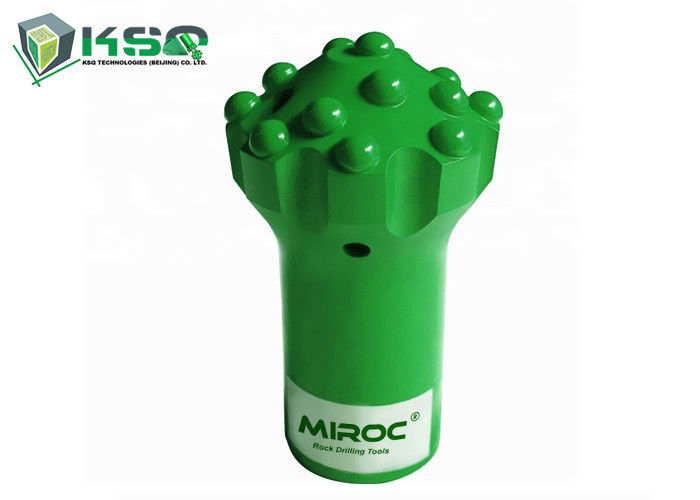

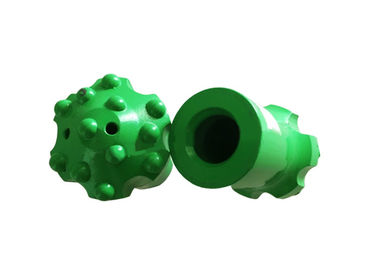

Reaming Drill Bit Rock Drill Bit T38 102mm For Hard Rock Blasting Holes

Reaming Drill Bit Rock Drill Bit T38 102mm For Hard Rock Blasting Holes

    • Reaming Drill Bit Rock Drill Bit T38 102mm For Hard Rock Blasting Holes
    • Reaming Drill Bit Rock Drill Bit T38 102mm For Hard Rock Blasting Holes
    • Reaming Drill Bit Rock Drill Bit T38 102mm For Hard Rock Blasting Holes
  • Reaming Drill Bit Rock Drill Bit T38 102mm For Hard Rock Blasting Holes

    Product Details:

    Place of Origin: China
    Brand Name: Mirco
    Model Number: T38

    Payment & Shipping Terms:

    Minimum Order Quantity: negociated one
    Price: negociated one
    Packaging Details: wooden box
    Delivery Time: 10-15 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: T38 Reaming Bit Type: Rock Drill Bit
    Machine Type: Drilling Tool, Drilling Equipment Material: Tungsten Carbide & Steel
    Processing Type: Casting Use: Mining Drilling
    Thread: T38 Color: Any Color Is Available
    Bit Diameter: 102mm Button Type: Spherical/Ballistic



    Reaming Drill Bit Rock Drill Bit T38 102mm for Hard Rock Blasting Holes

    Product description
    Reaming rock bit applicable to reaming for first-grade and second-grade larger-diameter hole. It can reduce the sectional area between bit blade and rock hole, also solve the problem of large diameter's low drilling speed in the hard formation with good directive.
    reaming bits for quarry are designed to enlarge pilot holes for development rounds,
    long hole blasting of drop raises and constructing service holes.
    With Pilot adaptors, the drilling direction can be ensured and accurate.

    Product Advantage:
    1. Mature heat treatment technology ensure high quality of bits
    2. work reliable and very cost-effective
    3. High grade tungsten carbide inserts




    Specification



    Types Dimensions Flushing hole(mm) Buttons(mm) Angle
    mm in Front No Size Gauge No Size Front No Size Gauge No Size
    T38 Dome bit 89 3.5 2x9 2x8 1x12 14x12 35°
    102 5 2x9 2x9 1x12 14x12 35°
    127 5 4x8 2x9 1x14 16x14 35°



    Reaming Drill Bit Rock Drill Bit T38 102mm For Hard Rock Blasting Holes

    Button Shape Selection:

    Button type Spherical button Universal button
    Wearing resistance good
    Best suited to hard ground
    27,000~48,000 PSI (180 to 320 Mpa)
    Abrasive to very abrasive
    Hemispherical button Universal button
    Wearing resistance good
    Best suited to hard ground
    25,000~45,000 PSI (170 to 300 Mpa)
    Abrasive to very abrasive
    Parabolic button Universal button
    Fast penetration
    Best suited to medium to hard rock
    15,000~25,000 PSI (100 to 170 Mpa)
    Midly abrasive ground
    Conical button Fast penetration
    Best suited to smaller diameter bits
    Suited for all non-abrasive ground types
    Ballistic button Fast penetration
    Best suited to soft rock
    10,000~20,000 PSI (70 to 140 MPa)
    Non abrasive ground
