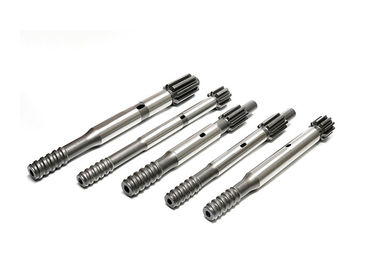

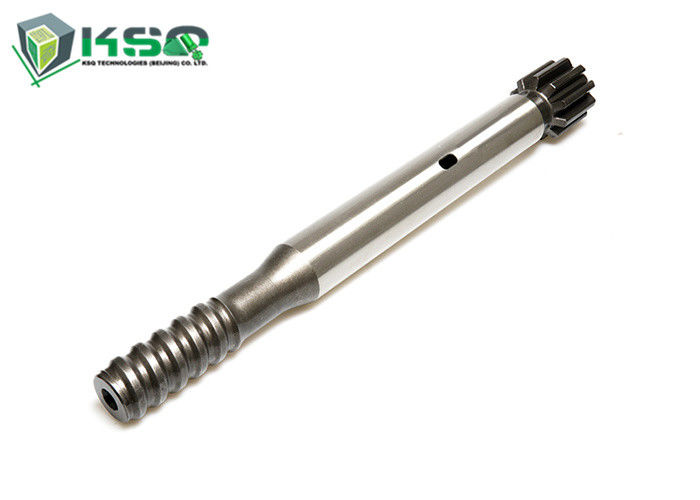

HL500 Mining Drill Shank Adapter T38 T45 T51 500mm Length For Tunneling

HL500 Mining Drill Shank Adapter T38 T45 T51 500mm Length For Tunneling

    • HL500 Mining Drill Shank Adapter T38 T45 T51 500mm Length For Tunneling
    • HL500 Mining Drill Shank Adapter T38 T45 T51 500mm Length For Tunneling
    • HL500 Mining Drill Shank Adapter T38 T45 T51 500mm Length For Tunneling
  • HL500 Mining Drill Shank Adapter T38 T45 T51 500mm Length For Tunneling

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: T38 500mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 5-15 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Condition: Brand New
    Atlas Copco Drifter: Cop2160, Cop1840, Cop1838, Cop1238 Etc Furukawa Drifter: HD715, HD712, HD612, HD609, HD300 Etc
    Length: 380mm-1180mm

    T38 T45 T51 Atlas Copco Drill Striking Bar Shank Adapter for Top Hammer Consumables



    Shank adaptor or shank adapter/striking bar, the task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
    The shank adapters from KSQ are there fore designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Tamrock series drifters, Garden Dever series drifters etc.



    Detail:

    Two flushing options of shank adapters: internal or external
    - Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string
    - External flushing, holes or a slot are required in the side of the shank adapter.These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank
    - External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water

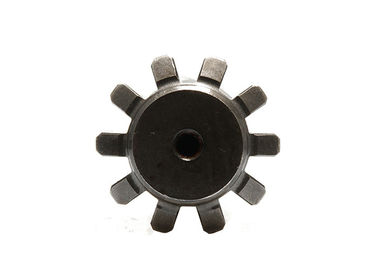

    The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least 5 to 14-spline configuration, Pneumatic shanks tend to have internal or through flushing and can generally be identified by their lugs or 4-spline configuration.



    Main Products:
    1-12 inch middle-low/high air pressure DTH hammers & bits
    Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
    Eccentric overburden drilling Equipment
    Hole opener bit
    Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)

    Extension Rod, M/F Rod, M/m Rod, Drift Rod,
    Shank adapter, coupling sleeves and all kinds of adapters



    Other Shanks:

    Rock Drill Thread Length (mm) Weight (Kg)
    COP 1550 EX
    COP 1830 EX
    T38 730 10.1
    T45 730 10.5
    T51 730 10.7
    COP 1840 HE
    COP 1850
    T45 565 7.2
    T51 565 7.4
    BBC 43
    BBC 44
    BBC 45
    BBC 100
    R32 380 2.2
    COP 1036
    COP 1038 HB
    R32 500 4.3
    T38 500 4.7
    T45 500 5.3
    COP 1038 HD
    COP 1238
    R32 485 4.3
    R38 485 4.5
    T38 485 4.5

    URD 475
    URD 550
    VL 120
    EVL 130
    VL140
    F16
    R32 330 3.6
    R38 350 3.8
    T38 380 3.9
    T38 446 4.3
    YH65
    YH80
    T38 500 5.8
    T45 500 6.1

    HD609 T38 620 6.2
    T38 690 6.5
    T45 620 6.9
    HD 612 T45 710 9.2
    HD 712 T45 788 11.2

    HL 500S-38
    HL 510S-38
    HL 510B
    HL 510HL
    R32 460 3.9
    R38 460 4.1
    T38 460 4.1
    R38 500 4.3
    T38 500 4.3
    HL 600-45
    HL 600S-45
    T38 600 6.7
    T45 600 6.7
    R32 525 5.9
    T38 525 6
    T45 525 6.1

    HC80
    HC90
    HC105
    R32 440 5.1
    R38 440 5.3
    T38 440 5.3
    T38 500 5.8
    HC 80R
    HC 120R
    HC 150R
    T45 670 8.3
    T51 670 8.3
