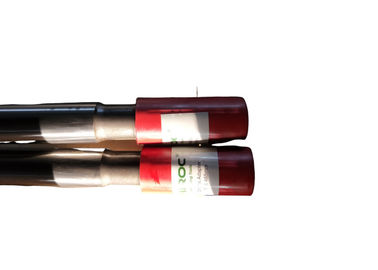

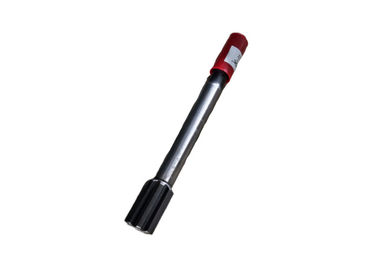

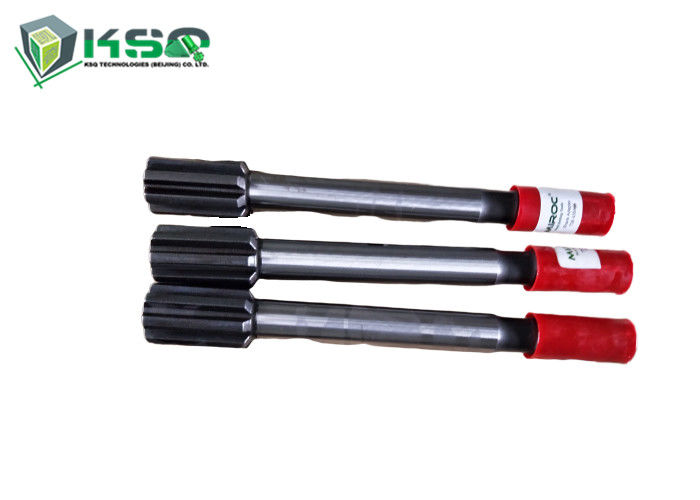

T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills

T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills

    • T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills
    • T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills
    • T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills
    • T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills
  • T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills

    Product Details:

    Place of Origin: China
    Brand Name: MIROC Shank Adapter
    Certification: SGS, ISO
    Model Number: Shank Adapter (for Furukawa Drifter)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 7-15 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Product: Mining Drilling Shank Adapter Diameter: 44.7mm
    Length: 485mm Thread: T38
    Application: Drifting Drilling, Bench Drilling

    T38 485mm Drill Shank Adapter Striking Bars to Connect Drill Rod with Rock Drills



    Our shank adaptors ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.
    Different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads.
    T38 485mm drifting shank adapter for tunneling are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank dapters and femal threaded shank adapters. Male shank adapters are more popular than female shank adapter. Male shank adapters are generally suited for drifting, tunneling and extension applications where high stresses are present. Female shank adapters are used when the drilling space is limited. Top quality of alloy steels, CNC machining and advanced heat threatment ensure our reliable quality,





    Furukawa Shank Adapter Specification



    T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills

    While every component in the drill string is crucial, the shank adapter must be engineered to withstand the most extreme stress. Its function is to transmit impact energy from the rock-drill piston, as well as rotation torque, into the drill string without energy losses. It must withstand and transmit up to 6300 blows per minute from the piston continually, with great endurance and dependability. With this in mind, we manufacture premium quality shank adapters for most brands of the drill machine.



    Shank Adapter for Furukawa Drifter:

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD135/135A

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD150

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD175

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD180

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD190

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD200

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD210

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD260

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD300

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD500

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD606

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD609

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD609RP

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD612

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD612RP

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD615

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD615RP

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD709

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD709RP

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD712

    R38 T38 T45 Shank Adapter for Furukawa Drifter HD712RP



    T38 485mm Drill Shank Adapter Striking Bars Connect Drill Rod with Rock Drills



    Shank Adapter Specification

    Furukawa SHANK ADAPTER
    Furukawa HD 90 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    R38 40 515 - 4.3 414832528
    Furukawa HD 190 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    R38 40 500 - 4.5 414832529
    T38 40 500 - 4.5 414832530
    Furukawa HD 300 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T38 45 654 16 6.0 414832531
    T45 45 654 16 6.7 414832532
    Furukawa HD 609 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T38 45 690 - 6.3 414832533
    T45 45 690 - 6.4 414832534
    Furukawa HD 612 RP Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T45 51 884 - 11.2 414832535
    Furukawa PD200 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T38 45 485 14.3 5.0 414832536
    T45 45 485 14.3 5.4 414832537



    Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.



    Competitive Advantage

    • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
    • The accurate dimension of thread perfectly matches the rock drill
    • Work reliably and very cost-effective


    We can design and manufacture personalized products to meet your special application, such as changing the length, diameter, etc.
